Installing Engine

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing
    1. → Secure components to prevent them from falling down.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion
    1. → Avoid contact with hot parts or sources of ignition.
    2. → Use suction to remove ignitable vapours.
    3. → Attach warning sign in a clearly visible position.
    4. → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
    5. → Secure collection containers/vessels to prevent them from tipping over.
WARNING: Caustic fluids
  • Danger of chemical burns
    1. → Wear personal protective gear.
    2. → Ensure that there is good ventilation.
    3. → Avoid contact with caustic fluid.
    4. → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Information

The pictures shown in this document may differ from the original.

Information

You will need a second mechanic to help you with this step.

Information

You will need a second mechanic to help you with this step.

  1. Install engine -1-  .

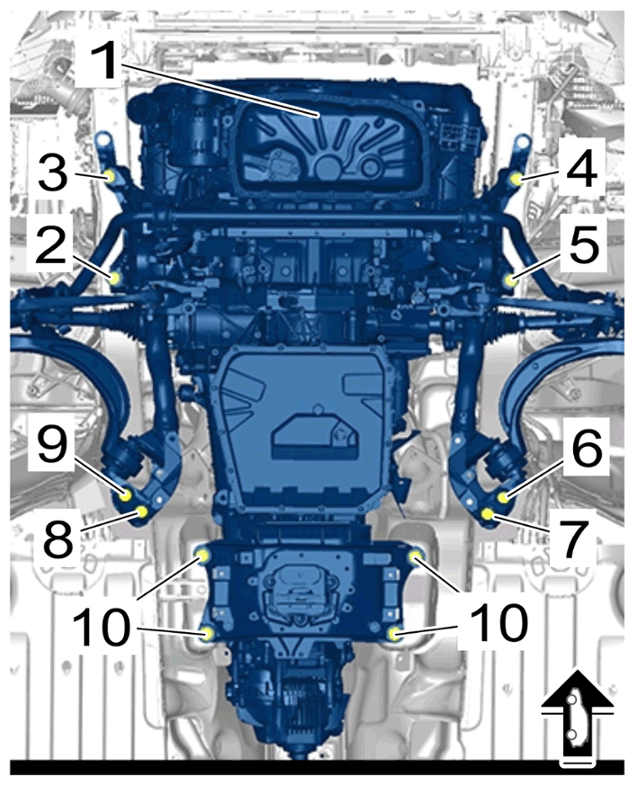

    Fig 1: Engine, Front-Axle Carrier Bolts Tightening Sequence
    G15145298Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bolts

    1. 1.1  Carefully guide the engine -1-  into the vehicle from below on > VAS 6832 - Master Gear unit elevating platform  . Make sure that no lines or other components are trapped or damaged.
    2. 1.2  Align the position of the front-axle carrier and transmission support at the markings made during removal.
    3. 1.3  Fit screws on front-axle carrier and tighten in the sequence -2 to 9-  .
      • Initial tightening 115 Nm (84.8 ftlb.)
      • Final tightening + 90°
    4. 1.4  Fit and tighten screws for transmission support -10-  .
      • Tightening torque 70 Nm (52 ftlb.)
  2. Remove > VAS 6832 - Master Gear unit elevating platform  and > VAS 6832/5 - assembly device - Macan.
    1. 2.1  Secure the wheel bearing housing until the upper trailing arms are secured to prevent it from tilting sideways.
  3. Secure spring strut forks

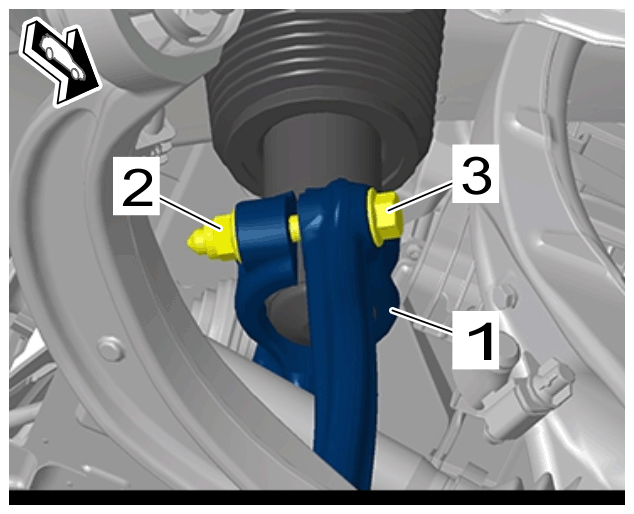

    G15145299Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spring strut fork

    1. 3.1  Turn > 3424 - spreader  by 90° and remove it from the spring strut forks -1-  .
    2. 3.2  Insert screw -3-  and screw on nut -2-  .
    3. 3.3  Tighten nut on spring strut fork -2-  and counter at the screw -3-  at the same time.
      • Final tightening 90 Nm (66 ftlb.)
      • Final tightening + 90°

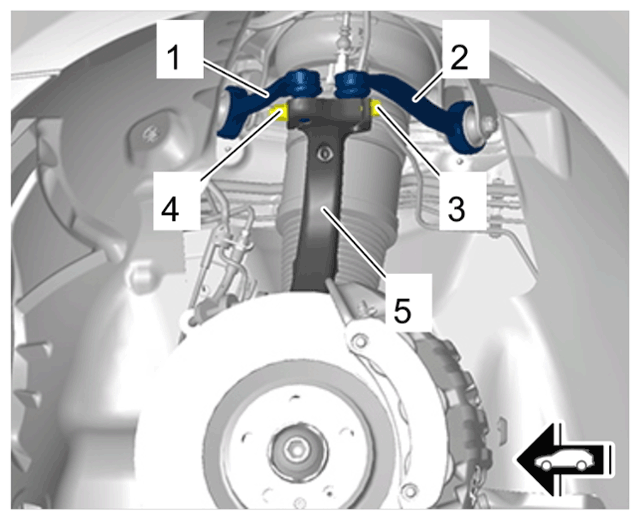

  4. Secure upper trailing arms -1 and 2-  to the wheel bearing housing -5-  .
    G15145300Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper trailing arms on wheel bearing housing

    1. 4.1  Insert upper trailing arms -1 and 2-  into the wheel bearing housing -5-  .
    2. 4.2  Fit clamping screw on wheel bearing housing -3-  .
    3. 4.3  Screw on and tighten nut -4-  Counter at the clamping screw -3-  at the same time.
      • Tightening torque 45 Nm (33 ftlb.)
  5. Secure electric wire harness for transmission -1-  .

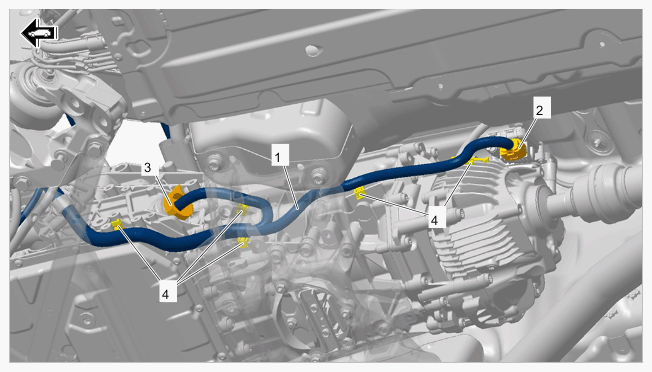

    G15145301Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness for transmission

    1. 5.1  Position electric wire harness for transmission -1-  and clip in clips -4-  .
    2. 5.2  Connect and lock cable plugs -2 and 3-  .
  6. Only if the power-steering gear was removed:

    Secure universal joint for steering column -1-  on the power-steering gear -2-  .

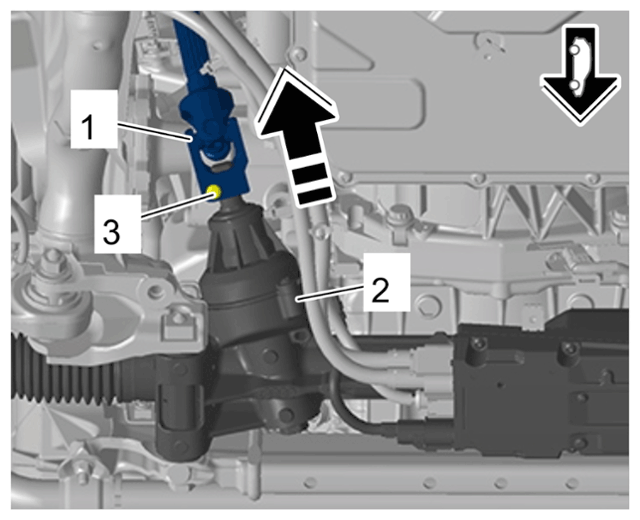

    G15145302Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Universal joint for steering column on power-steering gear

    1. 6.1  Push universal joint for steering column -1-  onto the power-steering gear -2-  in the opposite direction to -direction of arrow-  .
    2. 6.2  Fit and tighten screw on universal joint for steering column -3-  .
      • Initial tightening 20 Nm (15 ftlb.)
      • Final tightening + 90°
  7. Only if the power-steering gear was removed:

    Push on and lock cable plug for power-steering gear -1-  .

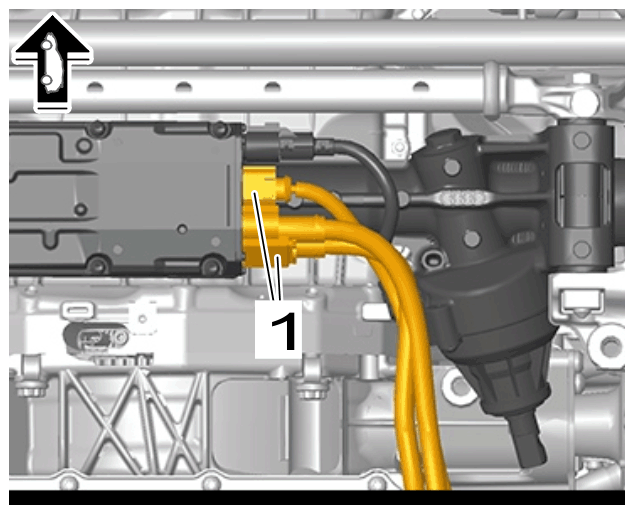

    G15145303Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable plug for power-steering gear

  8. Secure lower coolant hose -1-  to the radiator -2-  .

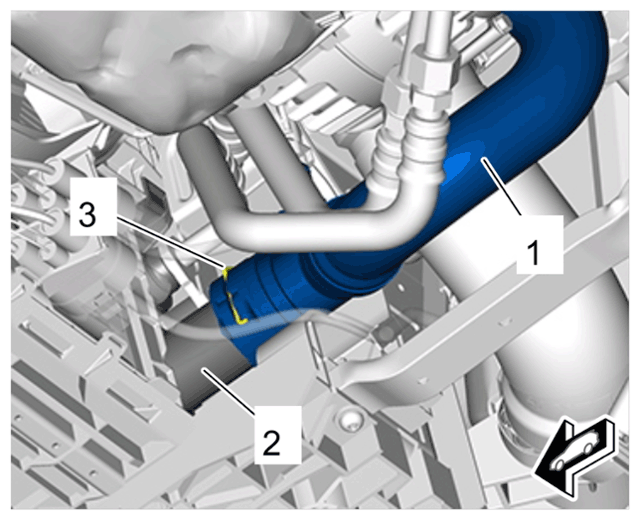

    G15145304Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower coolant hose

    1. 8.1  Push on lower coolant hose -1-  .
    2. 8.2  Lock safety clip -3-  .
  9. Secure lines -1 and 2-  to the engine mount bracket.

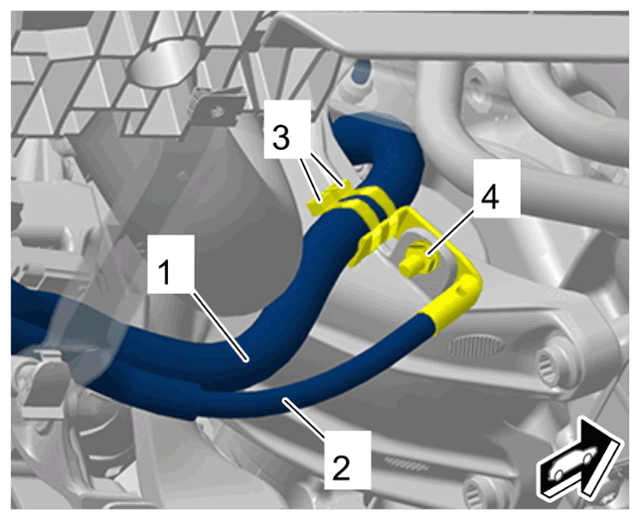

    G15145305Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lines on engine mount bracket

    1. 9.1  Position ground line -2-  .
    2. 9.2  Screw on and tighten nut -4-  .
      • Tightening torque 20 Nm (15 ftlb.)
    3. 9.3  Fasten new  tie-wraps -3-

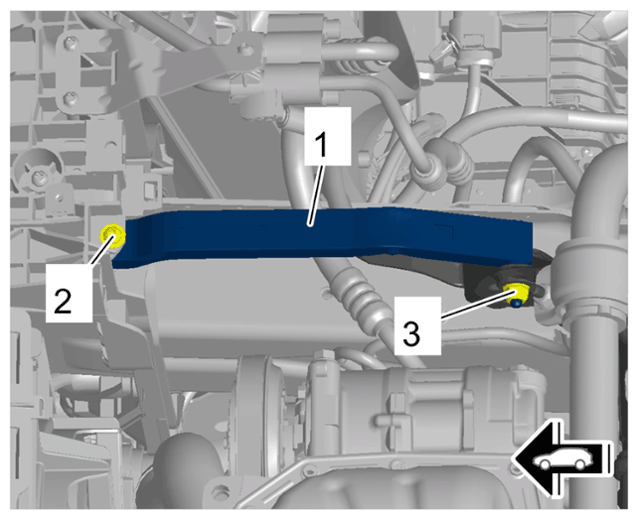

  10. Install struts -1-  .
    G15145306Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Strut

    1. 10.1  Insert strut -1-  with threaded bolt into the front-axle carrier.
    2. 10.2  Fit and tighten screw on struts -2-  .
      • Tightening torque 3.6 Nm (2.7 ftlb.)
    3. 10.3  Screw on and tighten nut on strut -3-  .
      • Tightening torque 23 Nm (17 ftlb.)
  11. Secure electric wire harness in the wheel housing -1-  .

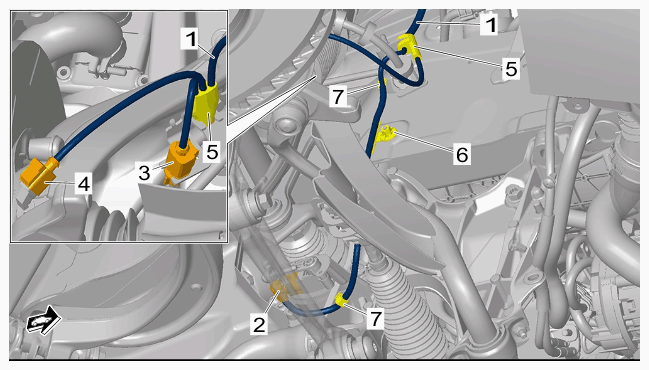

    G15145307Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness in wheel housing

    1. 11.1  Position electric wire harness in wheel housing -1-  .
    2. 11.2  Clip in clips -7-  .
    3. 11.3  Screw on and tighten nut -6-  .
      • Tightening torque 9 - (6.5 ftlb.)  Nm
    4. 11.4  Engage rubber holder -5-  .
    5. 11.5  Push on and lock cable plug for rpm sensor -4-  .
    6. 11.6  Push on and lock cable plug for brake pad wear indicator -3-  .
    7. 11.7  Push on and lock cable plugs for level sensors -1-  .
  12. Fasten new  tie-wraps -1-  .

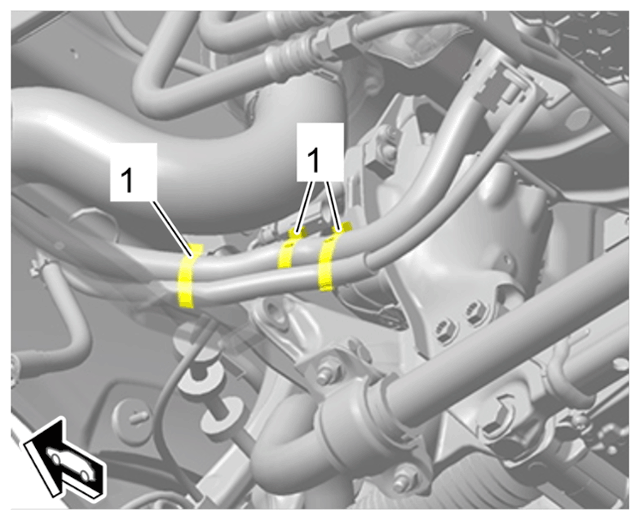

    G15145308Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tie-wrap near right wheel housing

  13. Position ground line -2-  and insert it in the opposite direction to -direction of arrow-  until the locking lugs -1-  lock.

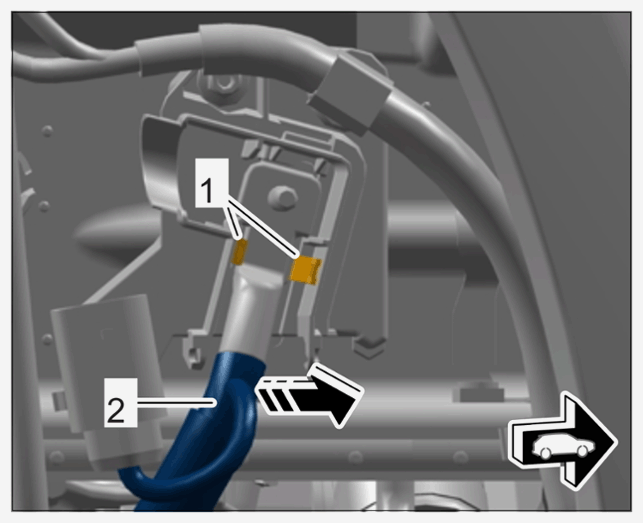

    G15145309Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground line

  14. Secure electric lines on the right longitudinal member.

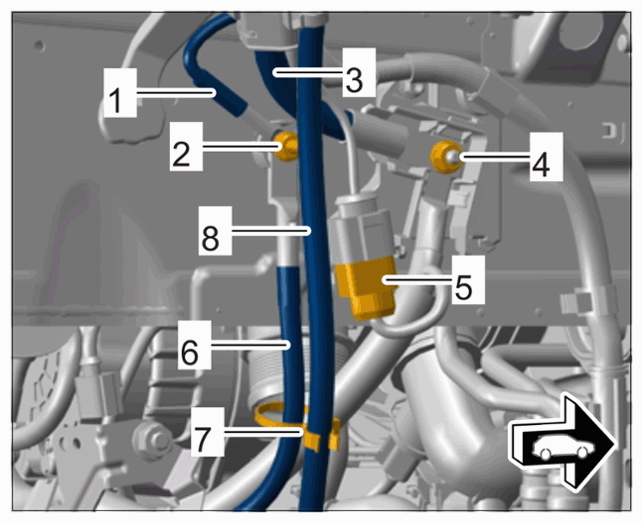

    G15145310Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on right longitudinal member

    1. 14.1  Position ground line -3-  .
    2. 14.2  Screw on and tighten nut -4-  .
      • Tightening torque 9 Nm (6.5 ftlb.)
    3. 14.3  Position headlight vent line -8-  and clip in clip -7-  .
    4. 14.4  Position ground lines -1 and 6-  .
    5. 14.5  Screw on and tighten nut -2-  .
      • Tightening torque 9 Nm (6.5 ftlb.)
    6. 14.6  Push on and lock cable plug -5-  and engage it in the holder.
  15. Insert housing cover -2-  on the right longitudinal member. Make sure that the locking lug -1-  locks.

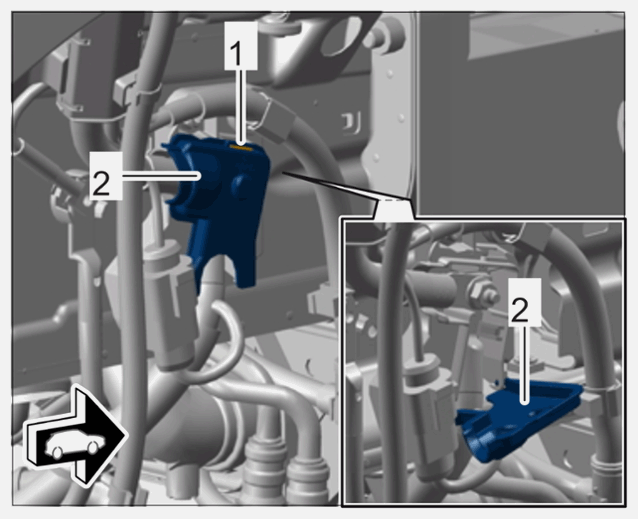

    G15145311Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Housing cover

  16. Secure wiring harness -1-  at the left dome.

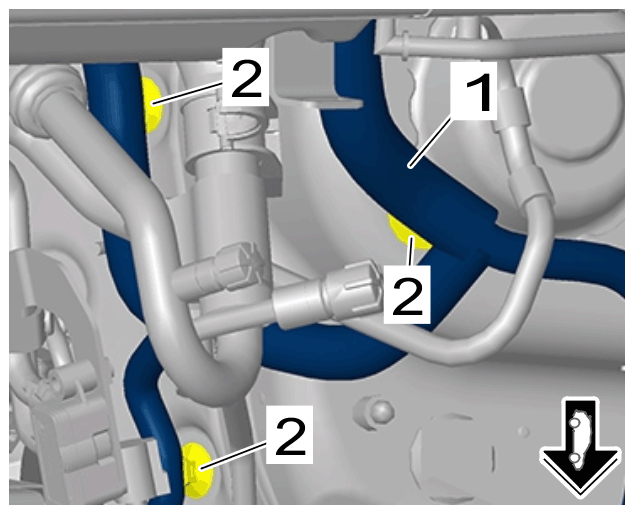

    G15145312Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness on left dome

    1. 16.1  Position wiring harness -1-  .
    2. 16.2  Clip in clips -2-  .
  17. Secure wiring harness -1-  to the left longitudinal member.

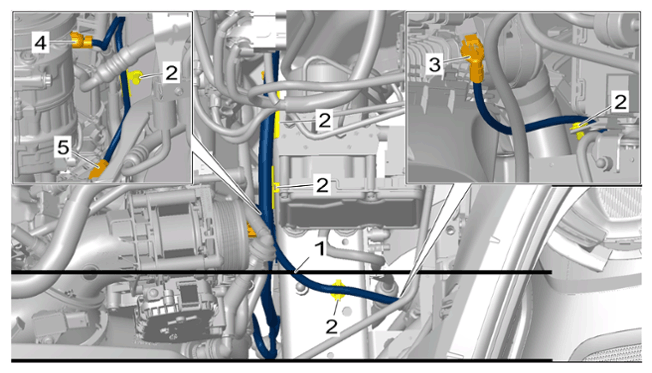

    G15145313Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness on left longitudinal member

    1. 17.1  Position wiring harness -1-  .
    2. 17.2  Push on and lock cable plug for left engine mount -5-  .
    3. 17.3  Push on and lock cable plug for air-conditioning compressor -4-  .
    4. 17.4  Push on and lock cable plug for pressure sensor -3-  .
    5. 17.5  Clip in clips -2-  .
  18. Secure engine wire harness -1-  to the body.

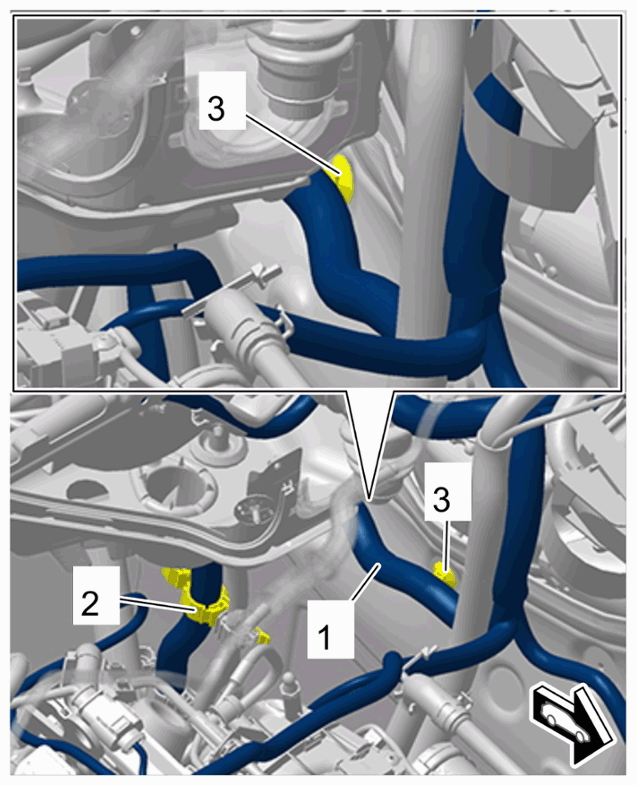

    G15145314Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for engine wire harness on body

    1. 18.1  Position engine wire harness -1-  and relay carrier.
    2. 18.2  Close line bracket -2-  and clip in clips -3-  .
  19. Secure wiring harness -1-  to the left longitudinal member.

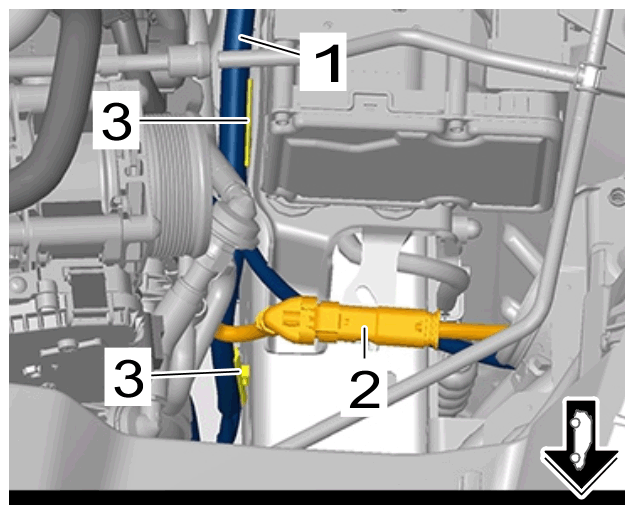

    G15145315Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness on left longitudinal member

    1. 19.1  Position wiring harness -1-  .
    2. 19.2  Clip in clips on wiring harness -3-  .
    3. 19.3  Engage cable plug -2-  in the holder and connect and lock it.
  20. Secure wiring harness in plenum panel -1-  . +

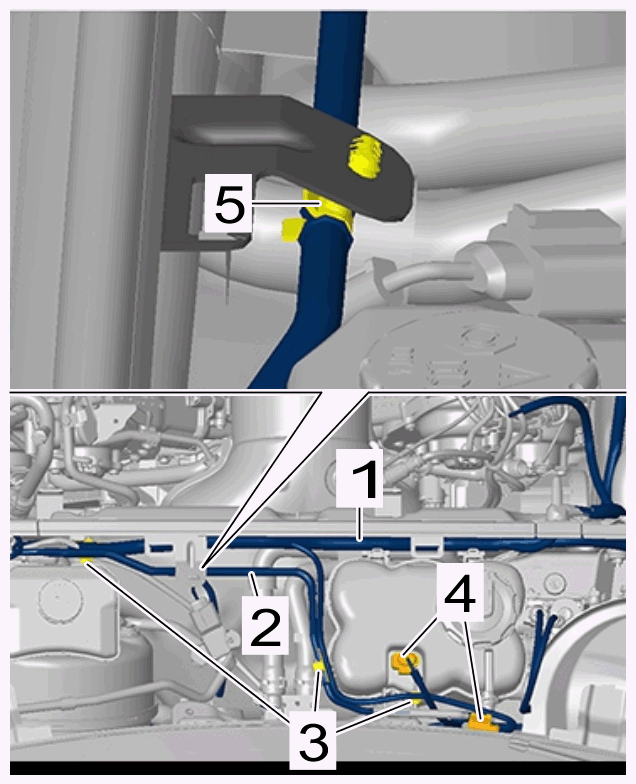

    G15145316Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness in plenum panel

    1. 20.1  Position wiring harness in plenum panel -1-  .
    2. 20.2  Connect and lock cable plug -4-  .
    3. 20.3  Clip in clips -3-  .
    4. 20.4  Clip coolant line -2-  into clip -5-  .
  21. Secure cable plugs -1 to 3-  .

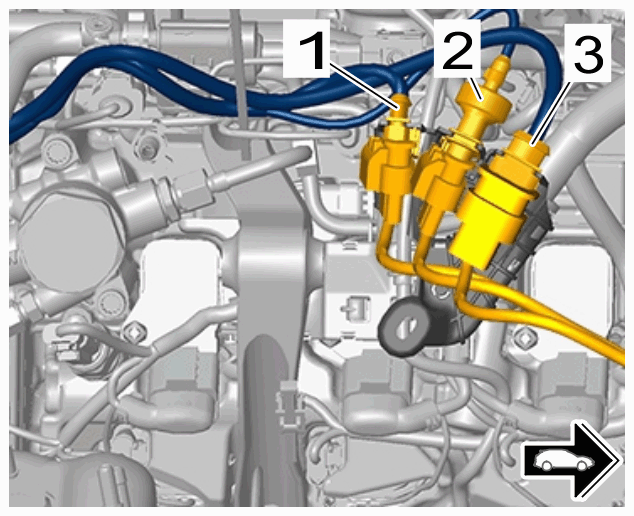

    G15145317Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable plugs

    1. 21.1  Clip in clips on the electric lines.
    2. 21.2  Push on and lock cable plugs -1 to 3-  and engage them in the holder.
  22. Secure wiring harness on right engine mount -1-  .

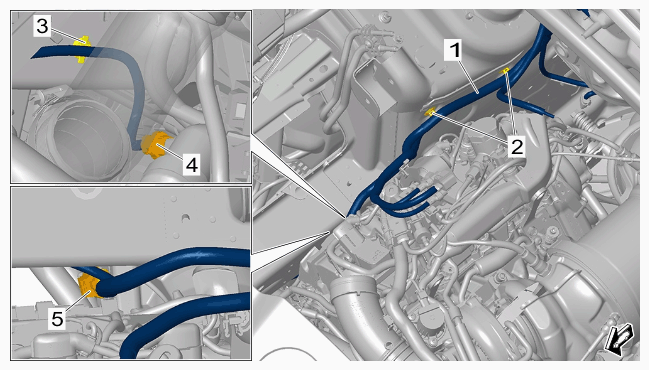

    G15145318Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness on right engine mount

    1. 22.1  Position wiring harness on right engine mount -1-  .
    2. 22.2  Connect and lock cable plugs -4 and 5-  .
    3. 22.3  Clip in clips -2 and 3-  .
  23. Secure ground lines -1-  next to the fuse box.

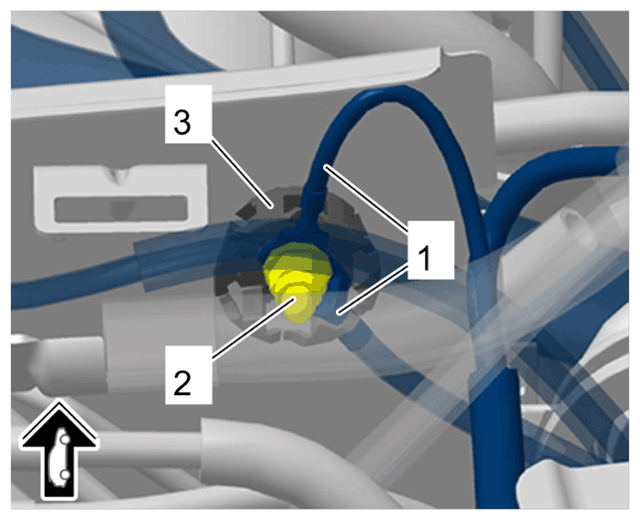

    G15145319Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground lines next to fuse box

    1. 23.1  Clip ground lines -1-  into holder -3-  .
    2. 23.2  Screw on and tighten nut -2-  .
      • Tightening torque 9 Nm (6.5 ftlb.)

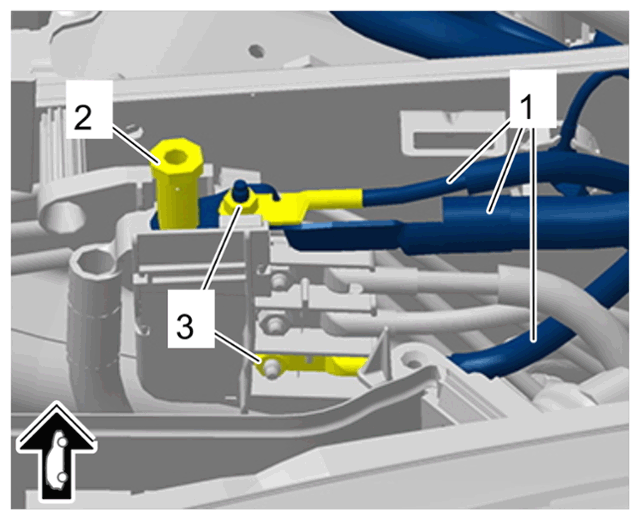

  24. Secure B+ lines -1-  next to the fuse box.
    G15145320Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    B+ lines next to fuse box

    1. 24.1  Connect B+ lines -1-  to the distributor.
    2. 24.2  Screw on and tighten positive terminal -2-  .
      • Tightening torque 20 Nm (15 ftlb.)
    3. 24.3  Screw on and tighten nuts -3-  .

      M6:

      • Tightening torque 7.5 Nm (5.5 ftlb.)

      M8:

      • Tightening torque 16 Nm (12 ftlb.)
  25. Install B+ cover -1-  .

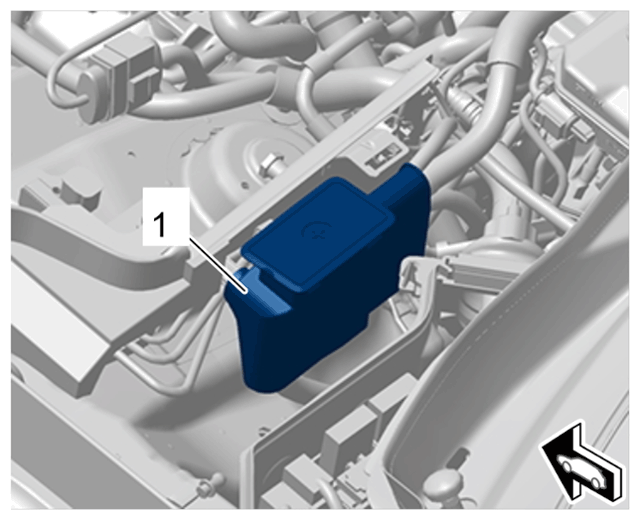

    G15145321Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    B+ cover

  26. Secure relay carrier -1-  to the fuse box.

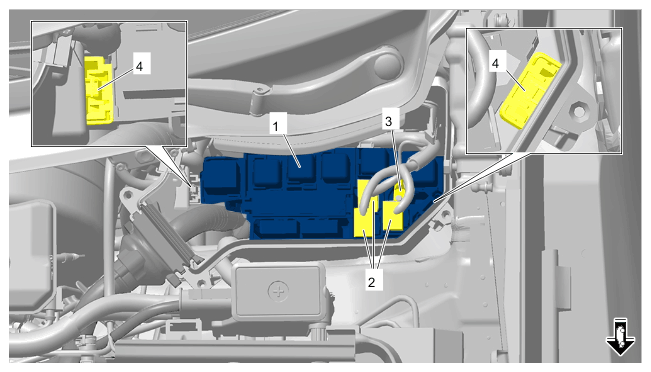

    G15145322Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Relay carrier

    1. 26.1  Push in relay carrier -1-  until the locking lugs -4-  engage securely.
    2. 26.2  Screw on and tighten nut -3-  .
      • Tightening torque 9 Nm (6.5 ftlb.)
    3. 26.3  Connect and lock cable plug -2-  .
  27. Install fuse box cover -1-  .

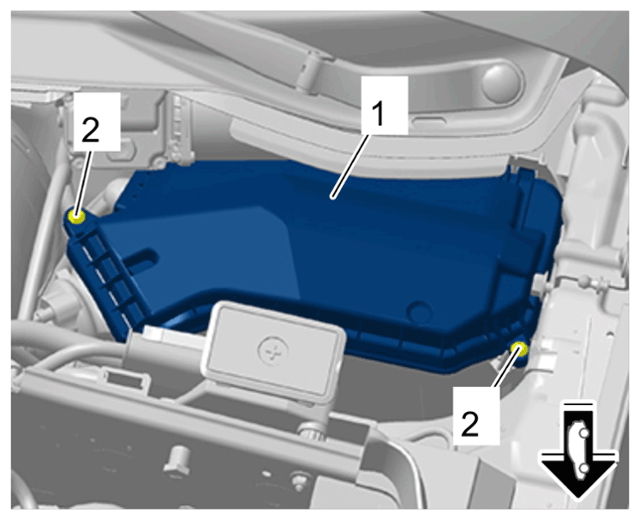

    G15145323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuse box cover

    1. 27.1  Fit fuse box cover -1-  .
    2. 27.2  Fit and tighten screws -2-
      • Tightening torque 3 (2ftlb.) Nm
  28. Install DME control unit holder -1-  .

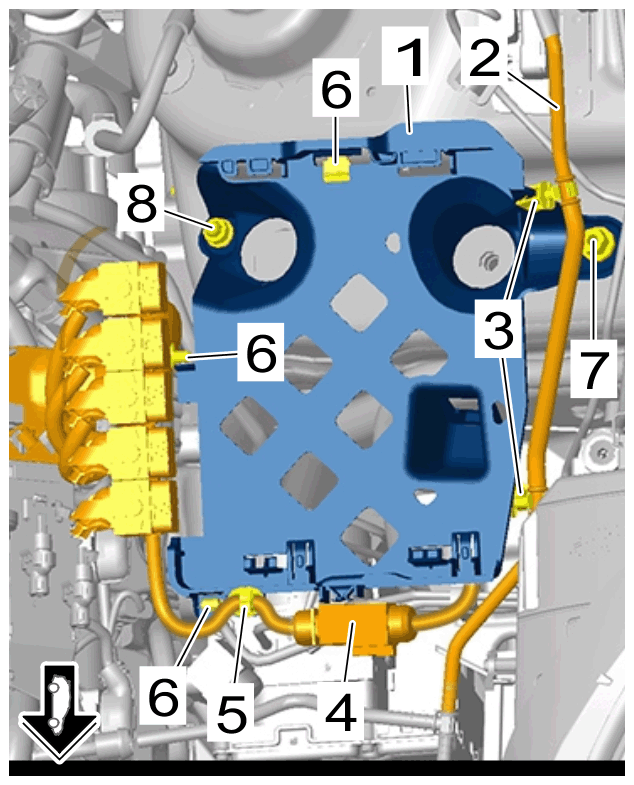

    G15145324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    DME control unit holder

    1. 28.1  Engage and position DME control unit holder -1-  .
    2. 28.2  Screw on and tighten nut on DME control unit holder -8-  .
      • Tightening torque 6 Nm (4.5 ftlb.)
    3. 28.3  Fit and tighten screw on DME control unit holder -7-
      • Tightening torque 6 Nm (4.5 ftlb.)
    4. 28.4  Clip in clips on wiring harness
    5. 28.5  Engage cable plug -4-  and clip in clip on electric line -5-  .
    6. 28.6  Clip coolant line -2-  into clips -3-  .
  29. Push on and lock quick connector -2-  for coolant vent line -1-  .

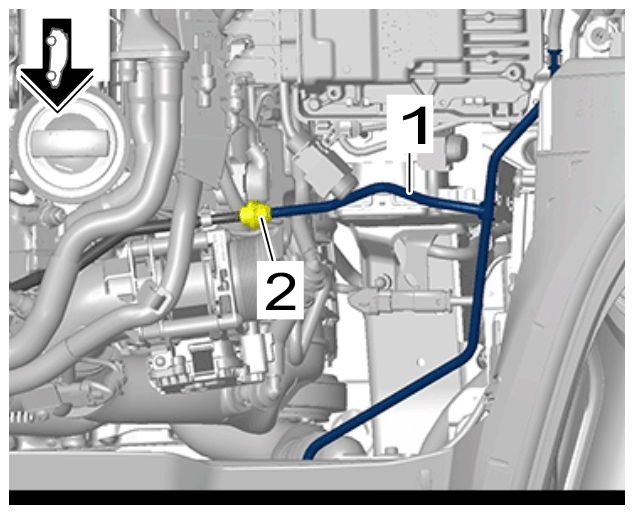

    G15145325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant vent line

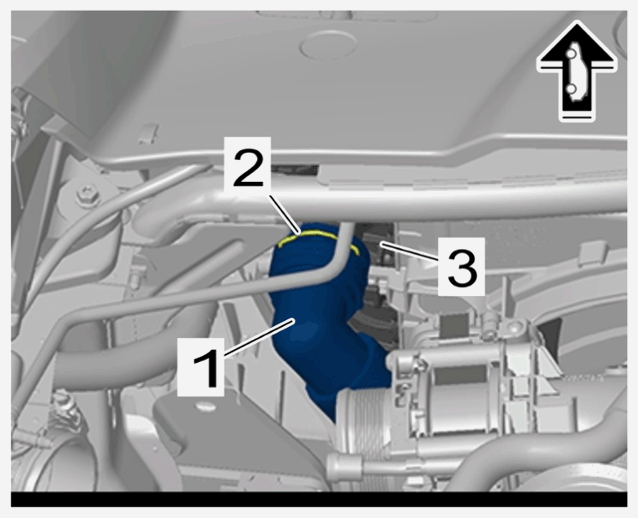

  30. Secure coolant hose -1-  to the radiator -3-  at the top.
    G15145326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant hose on radiator, top

    1. 30.1  Connect coolant hose -1-  .
    2. 30.2  Lock safety clip -2-  .

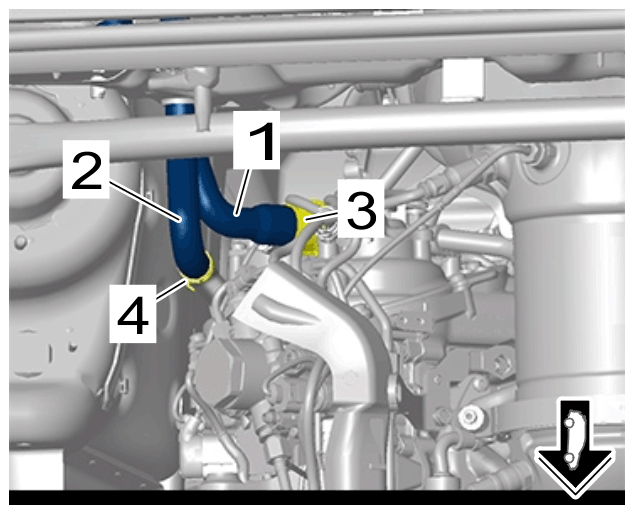

  31. Secure coolant hoses -1 and 2-
    G15145327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant hoses

    1. 31.1  Connect coolant hose -2-  .
    2. 31.2  Fasten spring hand clamp -4-  using > VAS 6890 - spring band clamp pliers  .
    3. 31.3  Push on and lock quick connector -3-  on the coolant hose -1-  .

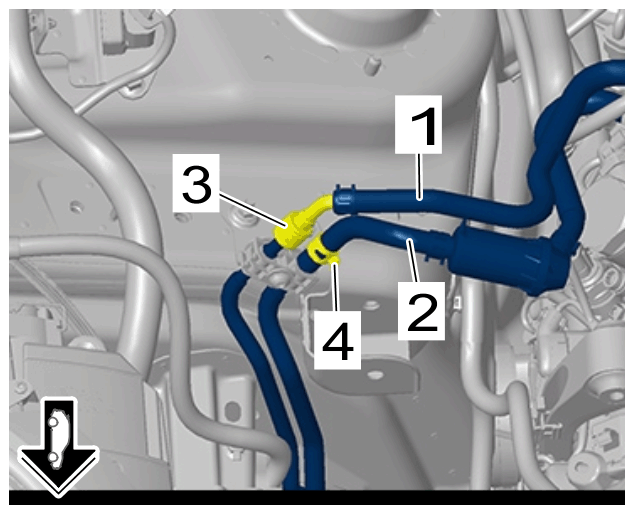

  32. Secure supply line -1-  and active carbon filter line -2-  .
    G15145328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connection point in engine compartment - supply line

    1. 32.1  Secure active carbon filter line -2-  .
      1. 32.1.1  Connect active carbon filter line -2-
      2. 32.1.2  Fasten spring band clamp -4-  using > VAS 6890 - spring band clamp pliers  .
    2. 32.2  Secure supply line -1-  .
      1. 32.2.1  Push on and lock quick connector -3-  for engine compartment section at the underbody section.
