Securing Engine On Assembly Support

WARNING: This page is about a different variant/trim than selected.
  1. Secure engine to assembly support.
    G15145246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

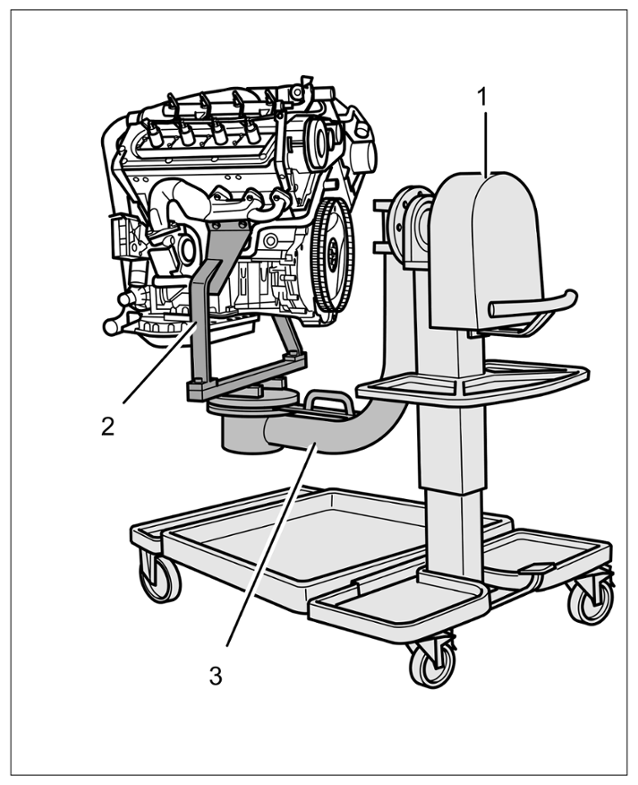

    Securing engine on assembly support

    1. 1.1  > VAS 6095/1 - Universal mounting-3-  must be secured to > VAS 6095A - engine and gearbox bracket-1-  .
    2. 1.2  > VAS 6095/1-15 - Bracket-2-  must be secured on the engine block.
    3. 1.3  Secure engine with > VAS 6095/1-17A - bracket-2-  on the > VAS 6095/1 - universal mounting-3-  as shown.
  2. Suspend engine from the workshop crane.
