60 Slide/Tilt Sunroof -- 95B - MACAN (95B)
>>
WM, 607019 Removing And Installing Sun Blind
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Screw securing sun blind to guide on the body
Item 2
Tightening torque
2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

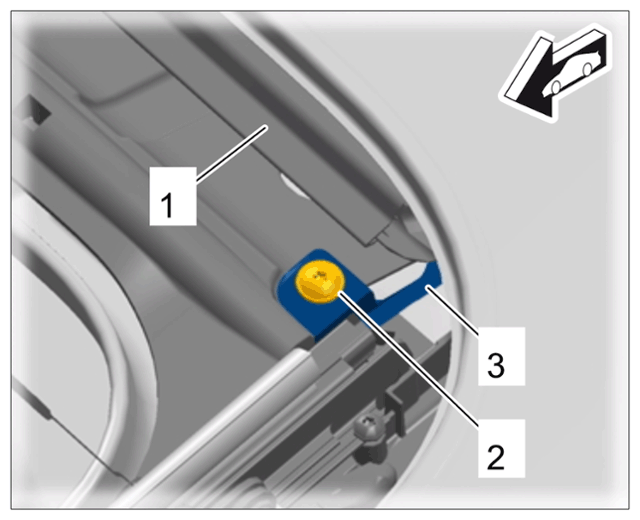

Guide for sun blind
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
