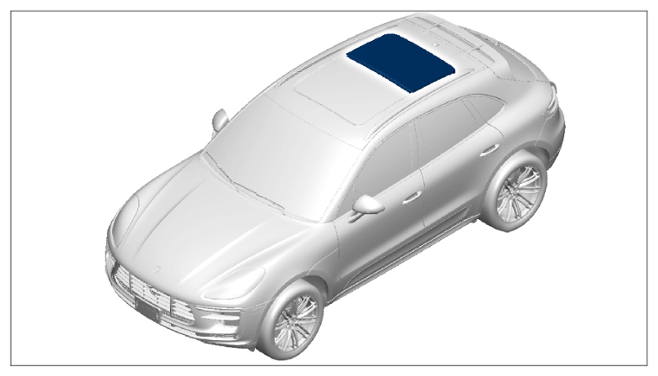

Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1. Loosen rear glass panel

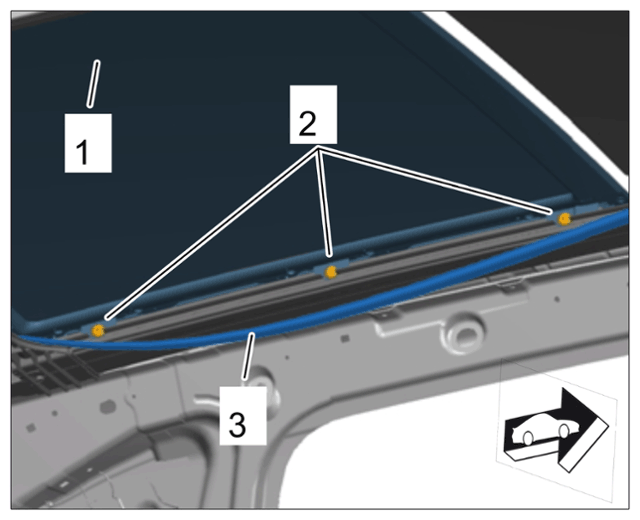

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear glass panel

   1. 1.1  Open the sun blind fully.
   2. 1.2  Pull acoustic seal -3-  off the assembly frame until the screws -2-  are accessible.
   3. 1.3  Unscrew and remove screws -2-  .
2. Remove rear glass panel -1-  .

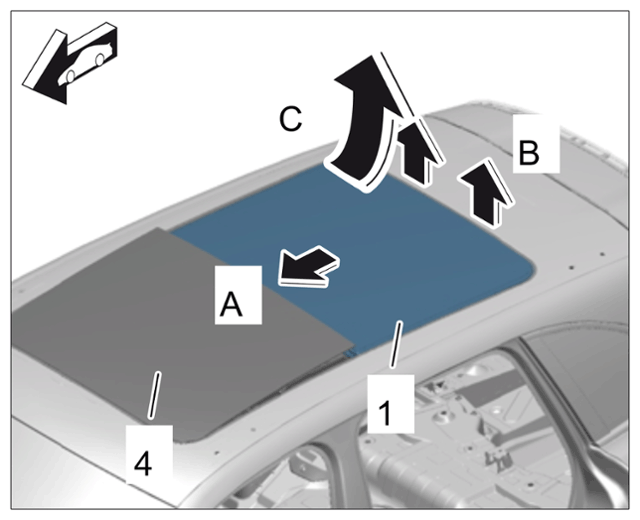

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear glass panel

   1. 2.1  Raise the rear glass panel at the front -4-  .
   2. 2.2  Slide the rear glass panel -1-  slightly under the rear glass panel at the front -4-arrow A-  .
   3. 2.3  Only lift the rear part of the rear glass panel -1-  out of the roof cut-out -arrow B-  .
   4. 2.4  Guide out the rear glass panel -1-  by moving it up at an angle -arrow C-  over the roof and pull it out under the rear glass panel at the front -4-  .
