Removing Transmission Oil Cooler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

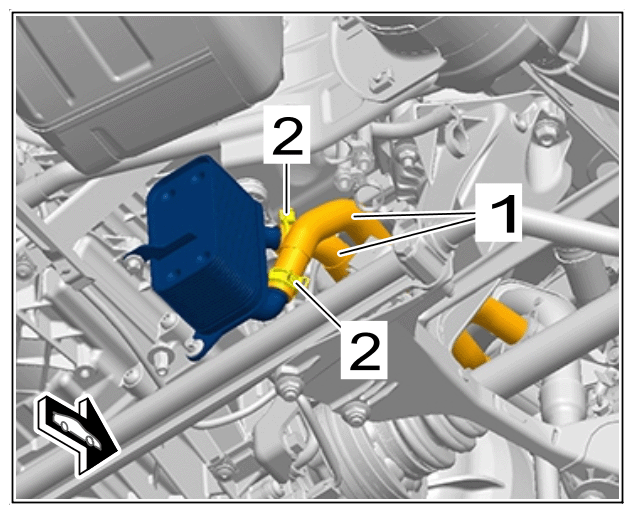

Coolant hoses on transmission oil cooler

1. 1.1  Loosen spring band clamps -2-  using > VAS 6890 - spring band clamps pliers  .
2. 1.2  Pull off coolant hoses -1-  .
3. 1.3  Catch escaping coolant and close off line connections using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

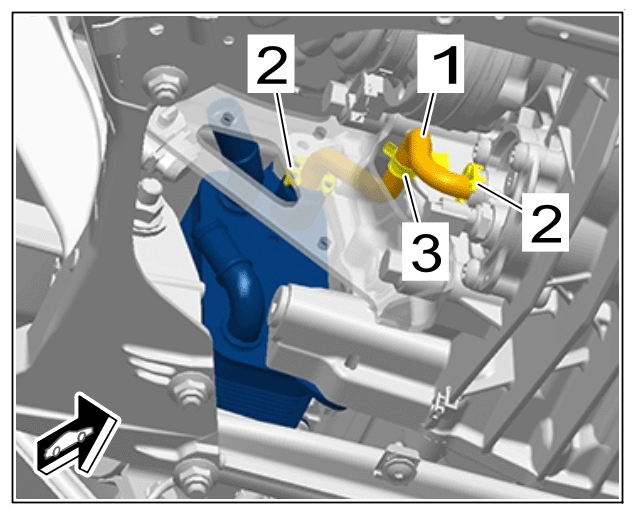

Transmission oil line on transmission oil cooler

1. 2.1  Loosen retaining clips -2-  .
2. 2.2  Unclip transmission oil line -1-  from clip -3-  and guide it out.
3. 2.3  Catch escaping transmission oil and close off line connections using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

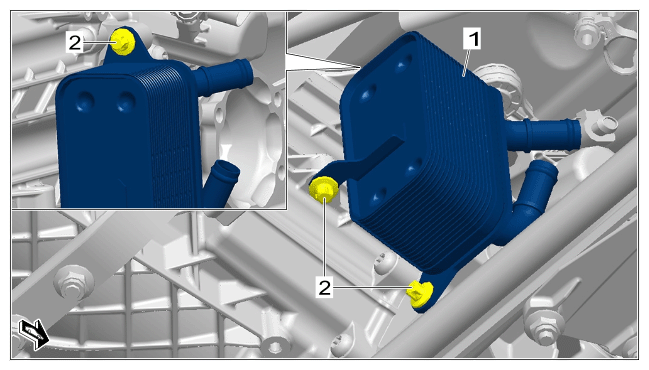

Transmission oil cooler

1. 3.1  Unscrew screws on transmission oil cooler -2-  .
2. 3.2  Pull transmission oil cooler -1-  off the transmission to the rear and guide it out.
3. 3.3  Catch emerging transmission oil and close off connection openings using suitable stoppers.
