Removing Transmission-Oil Pump

  1. Expose transmission oil pump -4-  .

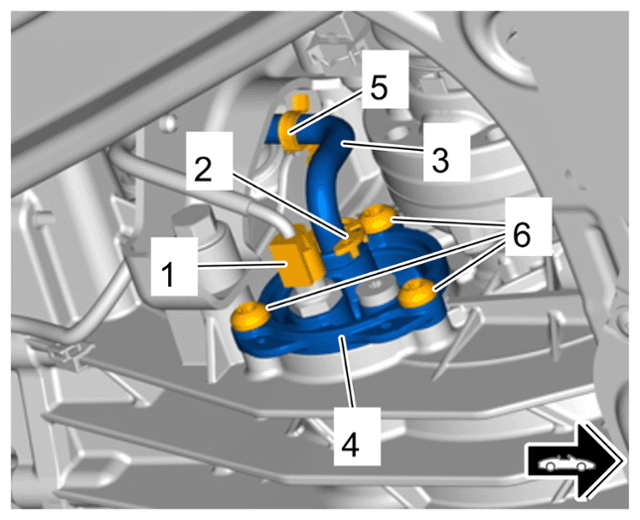

    G16220679Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission-oil pump

    1. 1.1  Release and disconnect electric plug connection -1-  .
    2. 1.2  Release locking lugs on lock -2-  for transmission oil line -3-  and pull the lock -2-  off the transmission-oil pump -4-  .
    3. 1.3  Unclip transmission oil line -3-  from holder -5-  .
    4. 1.4  Pull transmission oil line -3-  off the transmission-oil pump -4-  .
    5. 1.5  Unscrew and remove screws -6-  .

    Information

    The transmission-oil pump must not be driven out completely in a step. To prevent tilting and damage, the transmission-oil pump must be loosened slowly and carefully at several sides alternately.

  2. Loosen transmission-oil pump from transmission
    1. 2.1  Fit a suitable tool -1-  under a projecting flange on the transmission-oil pump -2-  and loosen it carefully by tapping gently with a plastic hammer for example -arrow-  .
      G16220680Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Transmission-oil pump

  3. Remove transmission-oil pump -1-  .
    1. 3.1  Fit a suitable tool, e.g. assembly lever, at a suitable position under the opposite projecting flange on the transmission-oil pump -1-  and loosen it further -arrow-  .

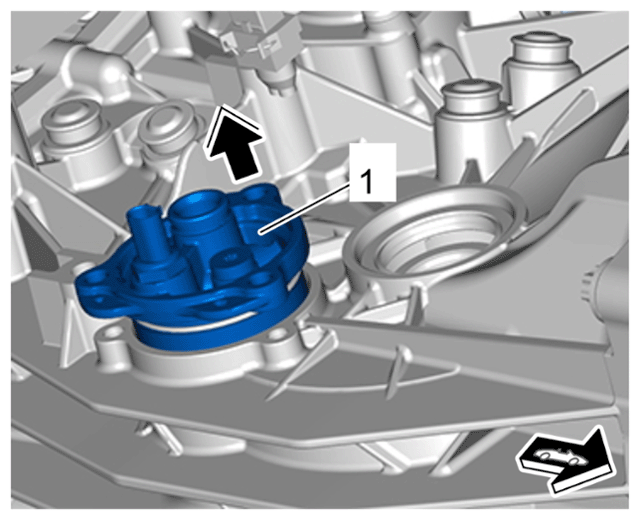

      G16220681Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Transmission-oil pump

    2. 3.2  Remove transmission-oil pump -1-  evenly.
