Home >> Porsche >> 2020 >> 718 Spyder >> Repair and Diagnosis >> Transmission >> Automatic Trans >> 34 Mechanical Transmission - Actuator, Housing 4.0L -- 718 SPYDER >> WM, 344055 Replacing Transmission Mount >> Subsequent Work

Subsequent Work

  1. Install transmission mount, but do not lower > VAS 6931 - engine and gearbox jack  vet.

    > 344019 REMOVING AND INSTALLING TRANSMISSION MOUNT

  2. Tighten nut on transmission mount -3-  .

    > Tightening torque 85 N.m (62.7 ft lb.)

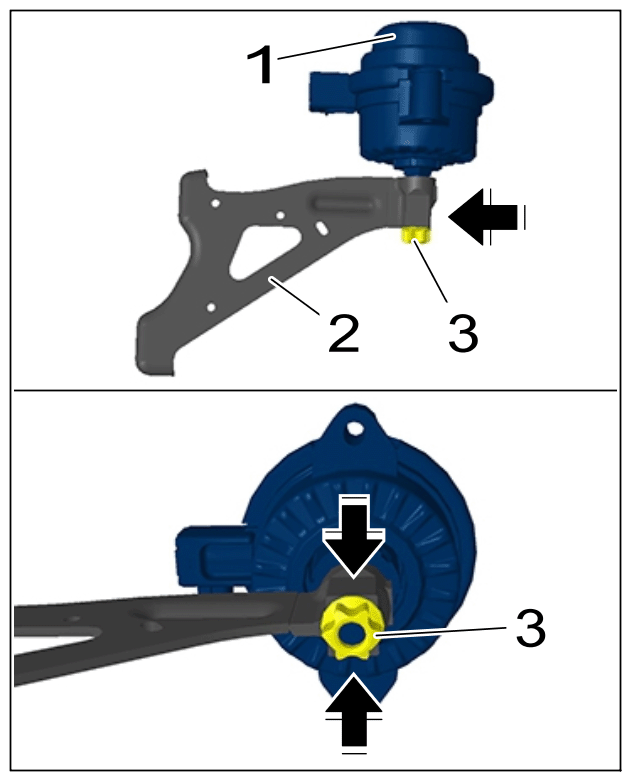

    G16220676Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission mount on gear support

  3. > VAS 6931 - Engine and gearbox jack  must now be lowered.
  4. Install support plate.

    > 421419 REMOVING AND INSTALLING SUPPORT PLATE
