Installing Transmission Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

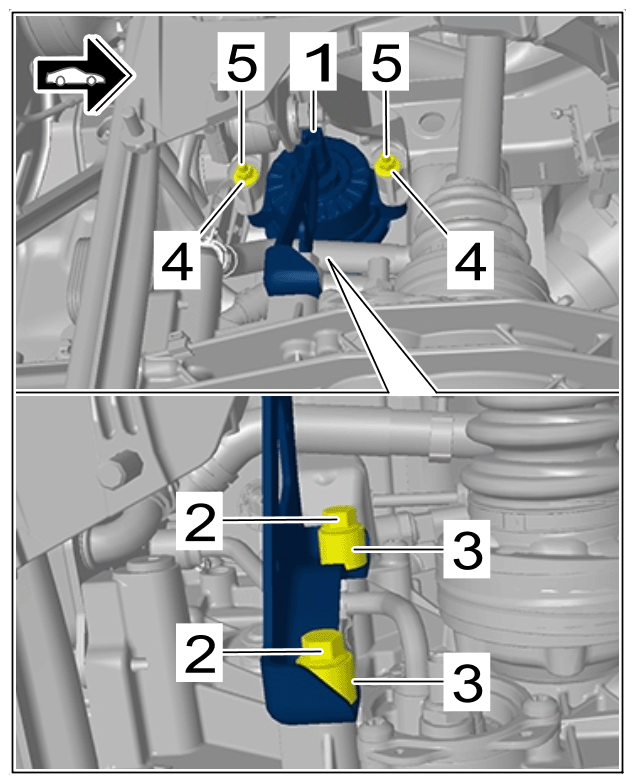

Transmission mount

1. 1.1  Position transmission mount -1-  .
2. 1.2  Insert screws -5-  into the rear axle carrier.
3. 1.3  Screw on and tighten nuts -4-  and counter at the screws -5-  .

   > Tightening torque 33 N.m (24.3 ft lb.)

4. 1.4  Fit and tighten screws -2-  with spacers -3-  .

   > Tightening torque + torque angle 30 N.m (22.1 ft lb.) + 60°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

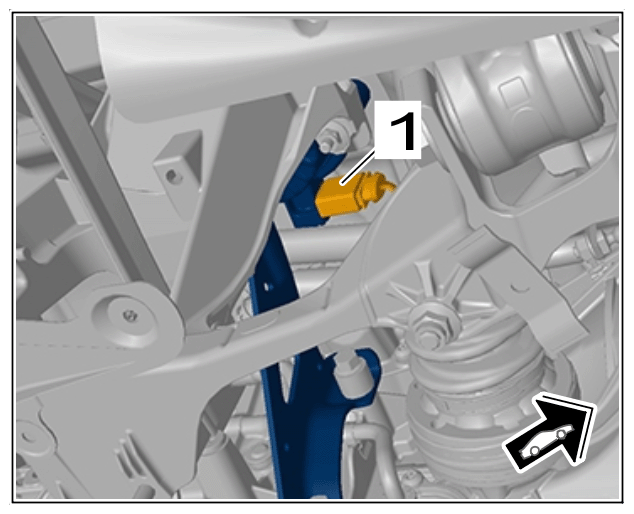

Electric plug connection for transmission mount

Secure electric wiring harness -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

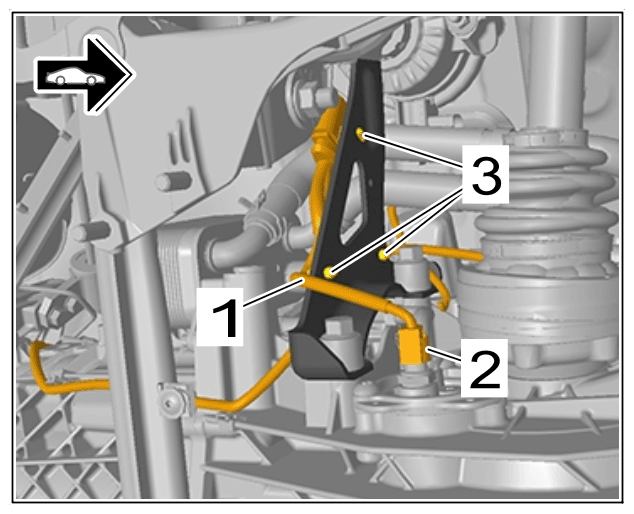

Electric wire harness

1. 3.1  Position electric wiring harness -1-  .
2. 3.2  Clip in clips -3-  .
3. 3.3  Push on and lock electric plug connection for oil temperature sensor -2-  .
