Removing Transmission

1. 1.1  Unscrew and remove screws -2-  .
2. 1.2  Remove exhaust system holder -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

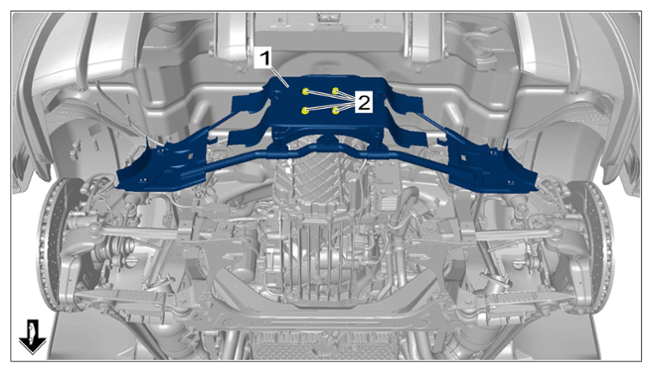

   Exhaust system holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plug on transmission wire harness

1. 3.1  Release spring clamps -3-  .
2. 3.2  Disconnect coolant hoses -1 and 2-  from hose connector -4-  .
3. 3.3  Catch escaping coolant and close off line connections using suitable stoppers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

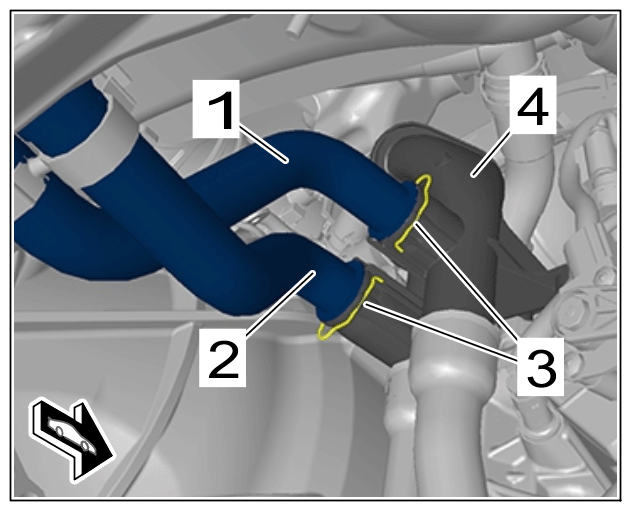

   Coolant hoses on transmission oil cooler

> DISASSEMBLING AND ASSEMBLING ENGINE

1. 6.1  Unscrew screws in the sequence -1 to 6-  .
2. 6.2  Loosen transmission -7-  from the engine and guide it out to the rear at the bottom using > VAS 6931 -Transmission and Engine Jack  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

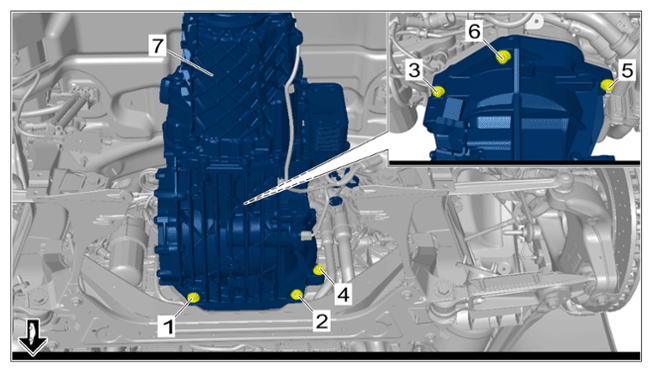

   Threaded joint on transmission
