Installing Transmission

NOTE: Engine housing overload.

Risk of engine damage if housing breaks.
→ Observe specified loosening and tightening sequence!

→ Loosening sequence: Loosen screws from the bottom up.

→ Tightening sequence: Tighten screws from top to bottom.

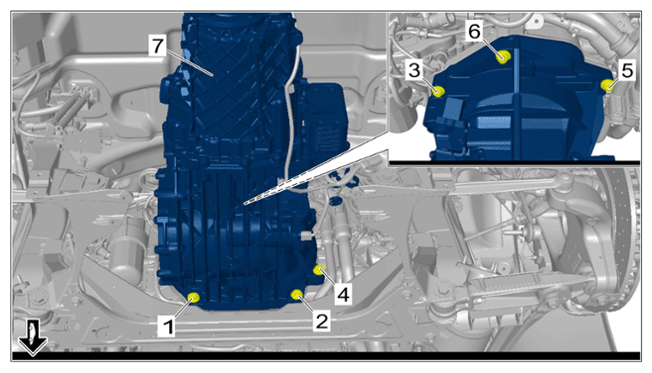

Install transmission -7- .

1.1 Fit transmission -7- on the engine using > VAS 6931 - transmission and gearbox jack.
1.2 Screw in screws -6 to 1- up to the anchor block by hand.
1.3 Tighten screws in sequence -6 to 1- .
> Tightening torque 85 N.m (63 ft lb.)

1.4 Loosen the tension strap and remove > VAS 6931 - transmission and gearbox jack .

G16220649

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts on transmission

Remove > VAS 6832 - master gear unit elevating platform .

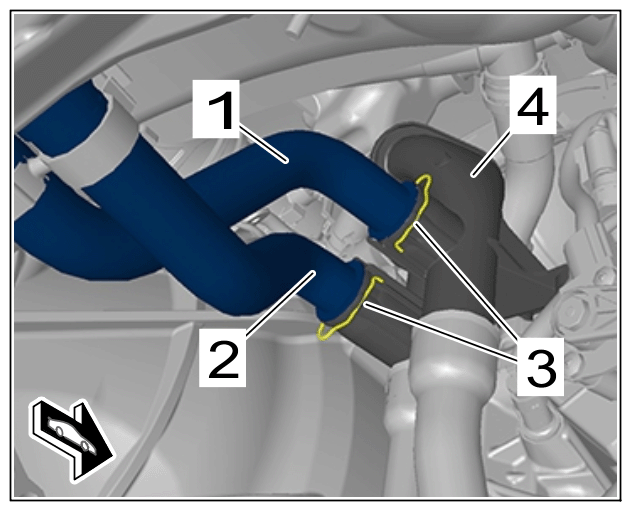

Secure coolant hoses -1 and 2- .

3.1 Insert coolant hoses -1 and 2- into the hose connector -4- .

3.2 Lock spring clamps -3- and check that coolant hoses -1 and 2- are fitted securely.

G16220650

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hoses on transmission oil cooler

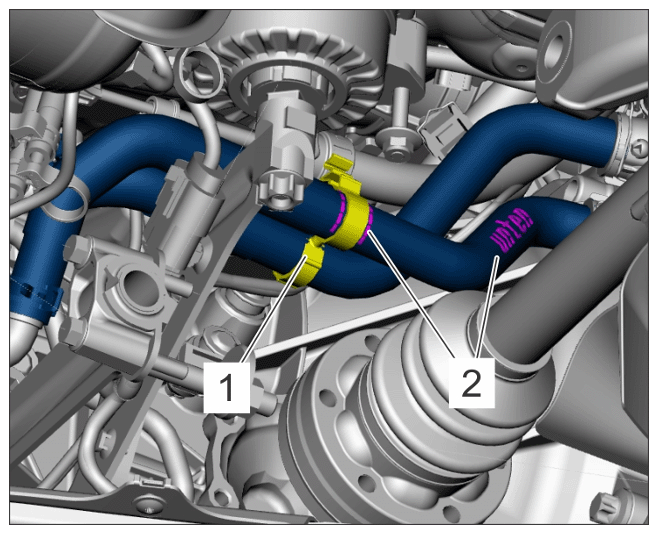

Replace coolant hose bracket -1- .

4.1 Note markings -2- for brackets.

4.2 Note the position (bottom, top) of the coolant hoses.

G16220651

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hose bracket

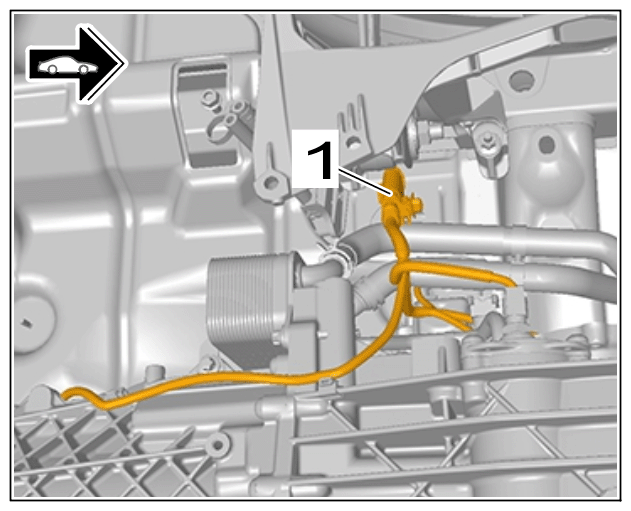

Push on and lock cable plug on transmission wire harness -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plug on transmission wire harness

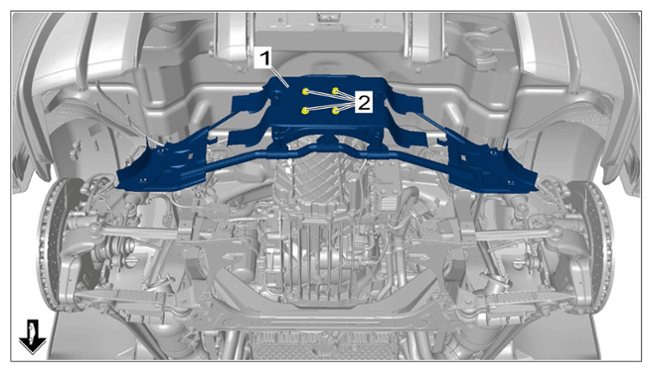

Install exhaust system holder -1- .

6.1 Position exhaust system holder -1- .

6.2 Screw in and tighten screws -2- .

> Tightening torque 30 N.m (22 ft lb.)

G16220653

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust system holder
