Removing Inductive Speed Sensor

  1. Remove inductive speed sensor -3-  .

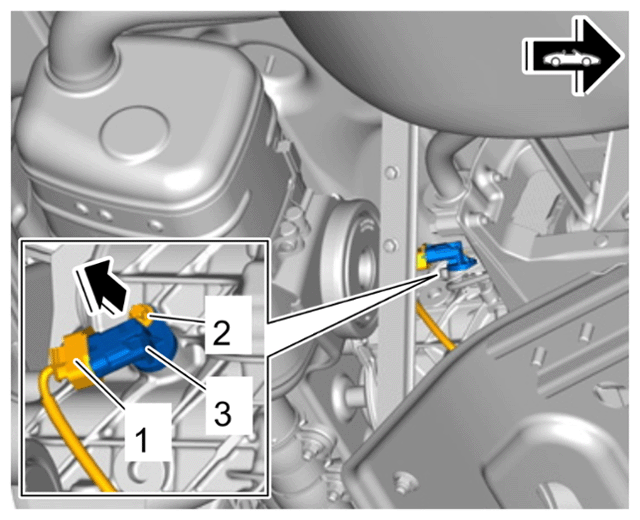

    G16220641Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Inductive speed sensor

    1. 1.1  Release and disconnect electric plug connection -1-  .
    2. 1.2  Unscrew screw -2-  .
    3. 1.3  Pull out inductive speed sensor -3-  .
