Removing Neutral Position Sensor, Mt

  1. Remove neutral position sensor, MT -3-  .

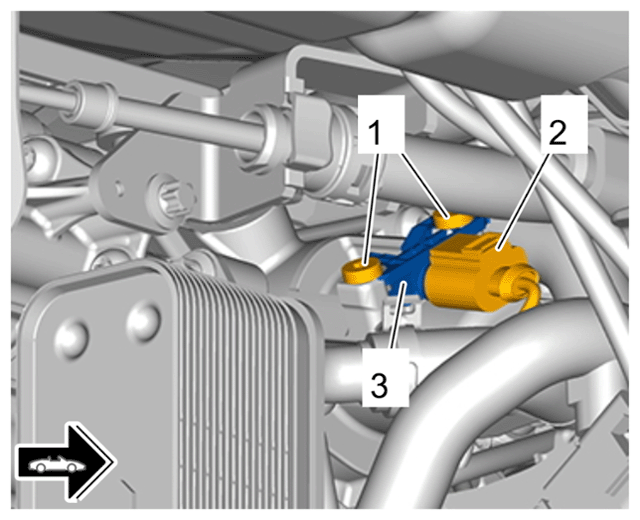

    G16220637Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Neutral position sensor, MT

    1. 1.1  Release and disconnect electric plug connection -2-  .
    2. 1.2  Unscrew and remove screws -1-  .
    3. 1.3  Remove neutral position sensor, MT -3-  .
