Installing Neutral Position Sensor, Mt

  1. Install neutral position sensor, MT -3-  .

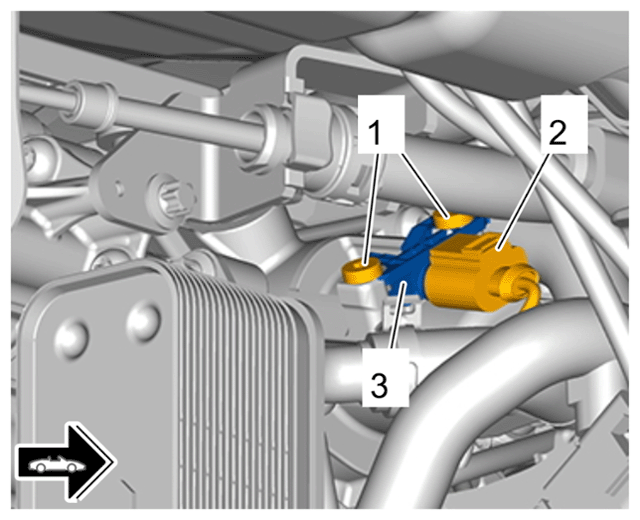

    G16220638Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Neutral position sensor, MT

    1. 1.1  Insert neutral position sensor, MT -3-  .
    2. 1.2  Screw in and tighten screws -1-  .

      > Tightening torque 5 N.m (3.7 ft lb.) +/- 0.5 N.m (0.4 ft lb.)

    3. 1.3  Connect and lock electric plug connection -2-  .
