Adjusting The Shift And Selector Cables

Shift transmission to neutral.

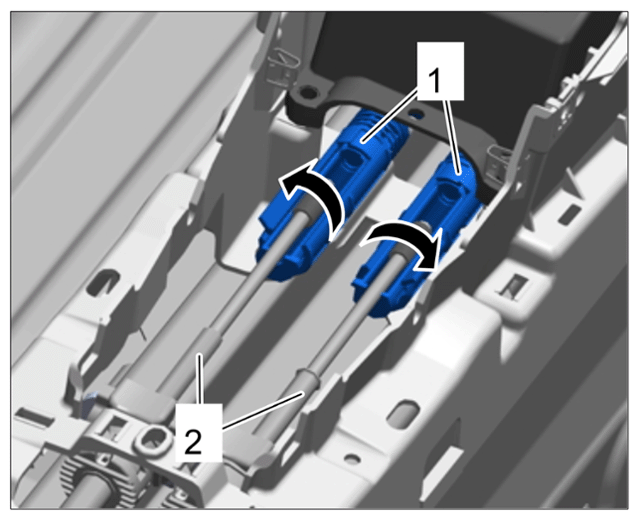

Release bayonet locks -1- (-arrows-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing bayonet locks

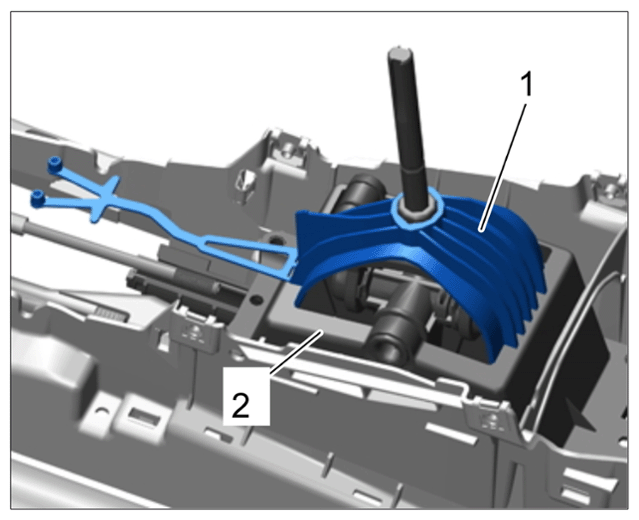

> 9846 - Locking bridge -1- must be fitted on the gearshift bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting locking bridge

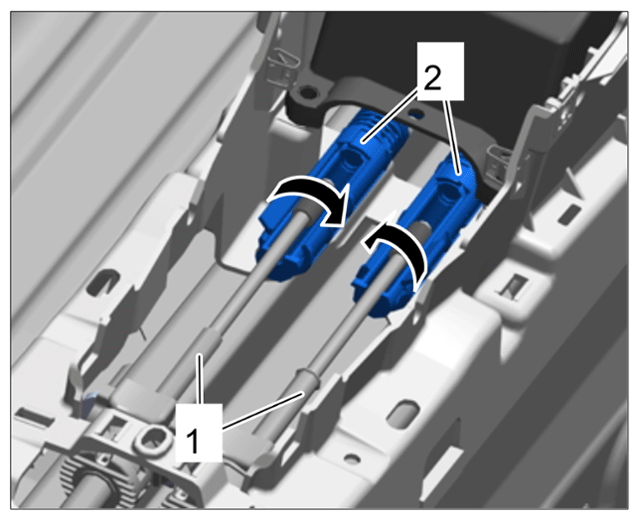

Lock bayonet locks -2- (-arrows-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bayonet lock for shift and selector cables
> 9846 - Locking bridge-1- must now be unclipped and removed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing locking bridge
Start the engine and check that all shift positions function correctly.
