Removing And Installing Gearshift Bracket

  1. Release -1-  bayonet locks -Arrows-  and unclip shift cable and selector cable -2-  .

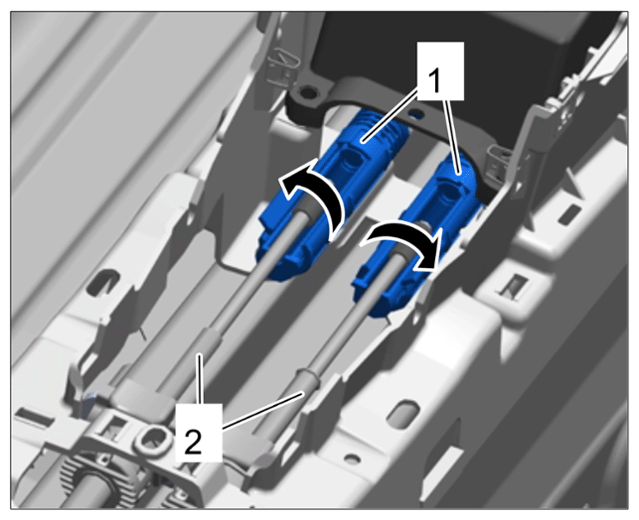

    G16220610Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bayonet lock for shift cable and selector cable

  2. Unscrew and remove screws -1-  and remove shift console -2-  .

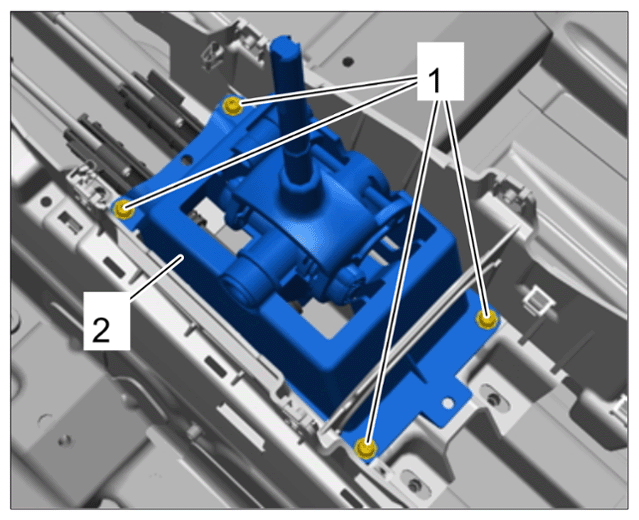

    G16220611Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing shift console

  3. Installation is performed in reverse order to removal

    Fasten screws with > Tightening torque 8 N.m (5.9 ft lb.)  .
