Removing And Installing Shift-Lever Knob

Information

The shift-lever knob and bellows form one unit and cannot be removed separately.

Information

Shift lever knob can loosen if not fitted correctly.

• When fitting shift lever, carefully push up to locking point.
• Test that the locking lugs are in the groove by pulling.

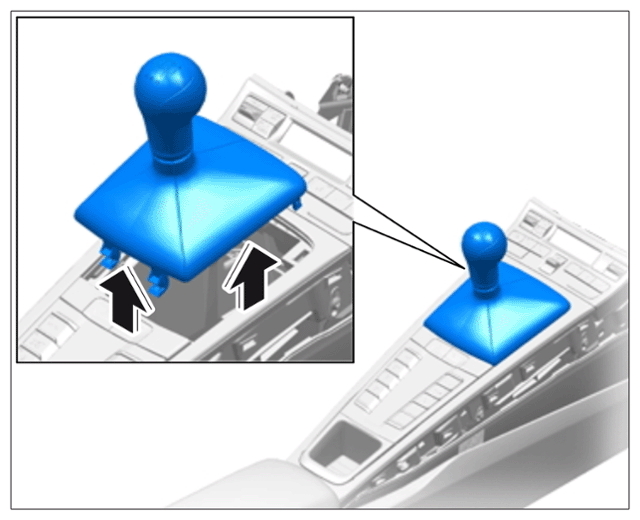

1. Unclip retaining frame on bellows using an assembly wedge. > Unclipping retaining frame on bellows

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping retaining frame on bellows

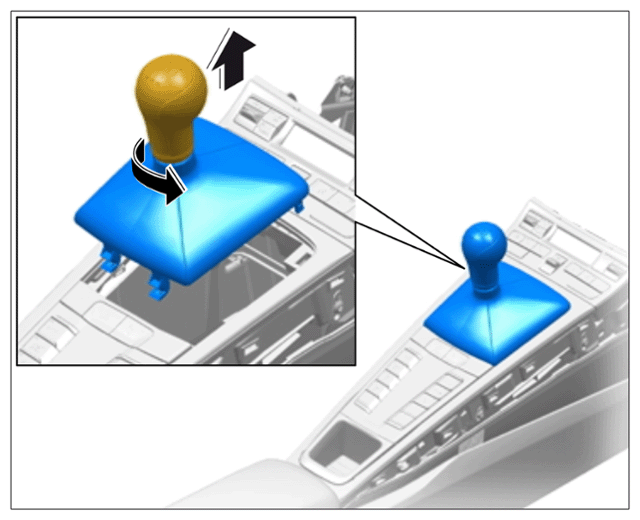

2. Turn bellows anti-clockwise and remove shift-lever knob and bellows. > Removing shift-lever knob and bellows

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing shift-lever knob and bellows

3. Perform installation in reverse order.
