Draining Transmission Oil

Information

The following conditions must be met in order to drain the transmission oil:

• Engine is switched off.
• Movable transmission parts are not moving.
• Vehicle is raised at a level driving position by a lifting platform.
• Oil collection pan is under the transmission.

1. Drain transmission oil.
   1. 1.1  Unscrew filler plug on manual transmission -1-  .
   2. 1.2  Unscrew drain plug on manual transmission -2-  .
   3. 1.3  Allow transmission oil to drain completely into the oil collection pan.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

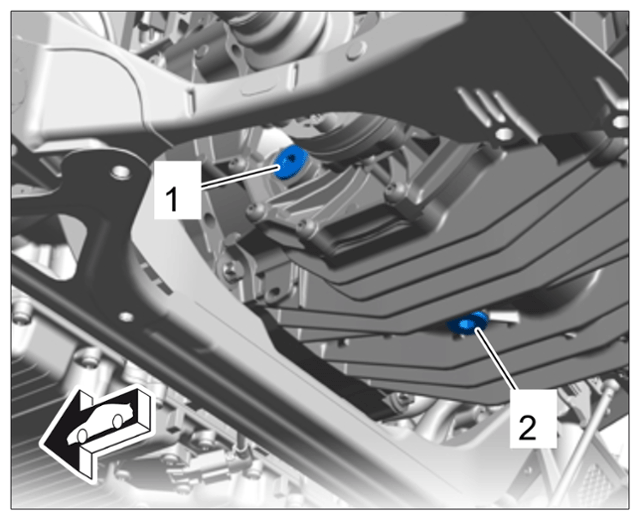

      Screw plugs on transmission (example)
