Replacing Support

Work Procedure:

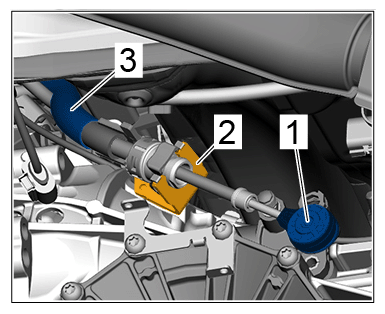

1. Unclip ball hitch -1-  using > VAS 6933 - disassembly tool  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Shift cable

2. Unscrew screw on the support -2-  .
3. Remove support bracket -2-  .
4. Install new support -2-  and tighten screw on the support.

   > Tightening torque 23 N.m (17 ft lb.)

5. Push on and lock shift cable -3-  on the support bracket -2-  .
6. Clip in ball hitch -1-  on manual transmission.
