Checking Installation Position Of Support

Work Procedure:

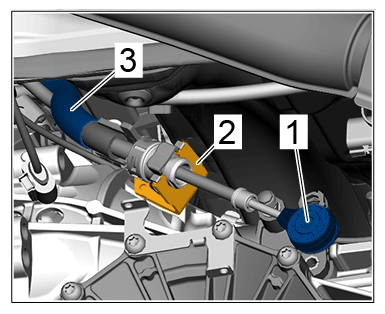

1. Check that -3-  the shift cable is positioned correctly in the support bracket -2-  .
   1. 1.1  If the shift cable is disengaged -3-  from the support, continue with Replacing > support.
   2. 1.2  If the shift cable -3-  is installed -2-  correctly in the support, the cause of the fault must be analysed and corrected otherwise.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Shift cable
