Retrofitting Balancing Weight

Work Procedure:

1. Position balancing weight on the transmission and tighten with fastening screw -3-  .

   > Tightening torque 30 N.m + 5 Nm

   Information

   After installing the reversing lever, check that it is installed securely and correctly.

2. Press reversing lever onto ball joints -1-  and -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

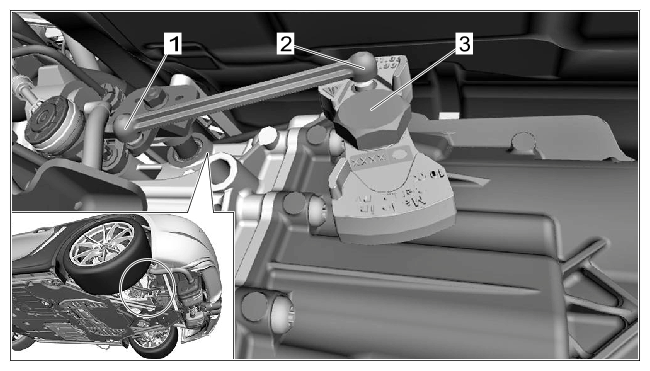

   Installation position of balancing weight
