Vehicle Height
Information
- The following values relate to the empty weight, i.e. full fuel tank/fluid reservoirs, vehicle with tools, but without driver or additional weights!
Values valid for Cayman GT4//GT4RS/718 Spyder
Front axle:
| Vehicle height worldwide | Cayman GT4//GT4 RS/718 Spyder | Only for GT4/718 Spyder - only Korea |
|---|---|---|
| Front-axle height (control values) | ||
| 20-inch wheels | 109 +2/-0 mm | 118 +2/-0 mm |

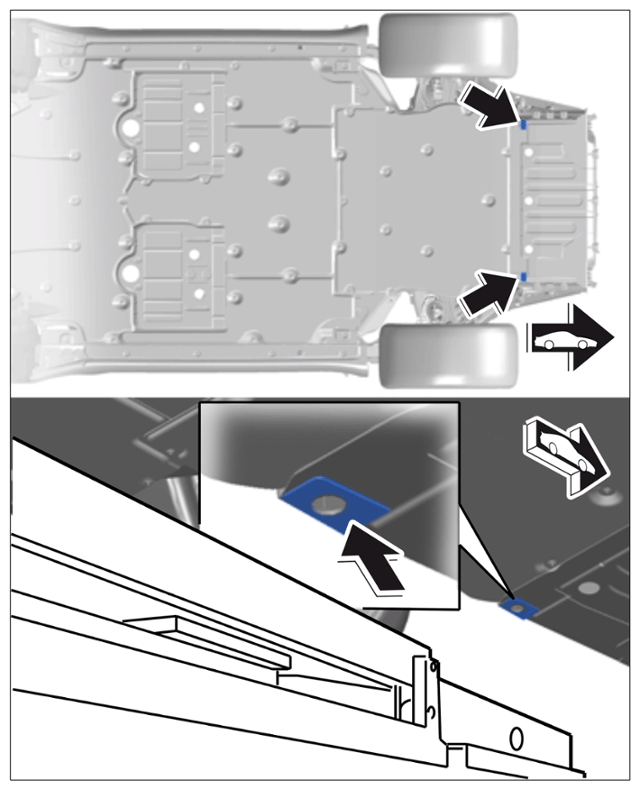

Measuring point for front axle height: Measure from road contact surface to -Blue area- on luggage comp. panel (cross member/bulkhead) -Arrows- .
Measuring point for front axle height
Rear axle:
| Vehicle height worldwide | Cayman GT4/GT4 RS/718 Spyder | Only for GT4/718 Spyder - only Korea |
|---|---|---|
| Rear axle height (control values) | ||
| 20-inch wheels | 130 +2/-0 mm | 141 +2/-0 mm |

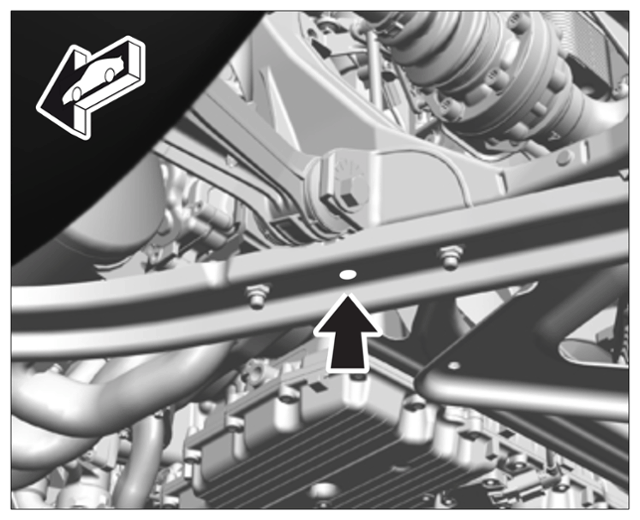

Measuring point for rear axle height: Measure from road contact surface to lower edge of diagonal brace (between the ribs) at wishbone fastening point -Arrow- .
Permitted transverse inclination of the vehicle: Maximum difference in height, left to right = 5 mm
Permitted longitudinal inclination of the vehicle: Maximum total deviations at front and rear = 10 mm
Permissible cross-load difference: Maximum wheel load difference, left FA + right RA to right FA + left RA = 30 kg
Measuring point for rear axle height
