Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Strut mount to body | Hexagon nut, M8 | Tightening torque | 33 N.m (24.3 ft lb.) | ||
| Lock nut on spring strut | Clean the thread before loosening and tightening | Tightening torque | 50 N.m (36.9 ft lb.) | ||
| Steering tie rod to rear axle carrier side part (toe eccentric adjuster) | Replace M12 x 1.5 lock nut | Tightening torque | 110 N.m (81.1 ft lb.) | ||
| Lower trailing arm to rear axle carrier side part (camber eccentric adjuster) | M12 x 1.5 | Tightening torque | 110 N.m (81.1 ft lb.) | ||
| Aluminum tie rod to axial joint | Lock nut, M14 x 1.5 | Tightening torque | 50 N.m (37 ft lb.) | ||
|

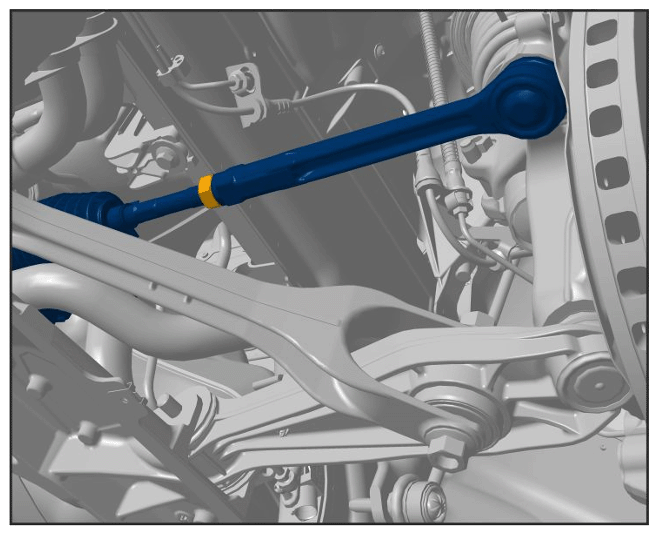

Aluminum tie rod to axial joint |
|||||
