Adjusting Rear-Axle Toe

1. After loosening the lock nut, turn toe eccentric adjuster -2-  as required. Replace lock nut.

   Then tighten new lock nut on the toe eccentric adjuster.

   > Tightening torque 110 N.m (81.1 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Camber and toe eccentric adjuster

1. 1.1 The lock nut on the toe eccentric adjuster is loosened and tightened using > 9847 - socket-wrench insert -3-  together with > 9626 - insert for torque wrench-4-  and commercially available torque wrench -5-  .

The following applies when using > 9626 - insert for torque wrench-4-  : The specified tightening torque for lock nuts of 110 N.m (81 ft lb.)  corresponds to a setting on the torque wrench of approx. 110 N.m (81 ft lb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

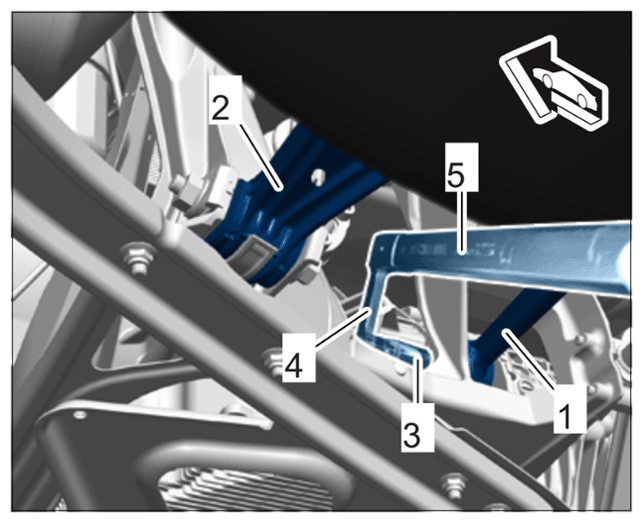

Loosening and tightening hexagon nut on toe eccentric adjuster
