Adjusting Rear-Axle Camber

1. Remove rear brake disc air guide.

   > WM, 461619 REMOVING AND INSTALLING REAR BRAKE-DISC AIR GUIDE - section on "Removing".

2. After loosening the lock nut, turn camber eccentric adjuster -1-  as required. Replace lock nut.

   Then, tighten new lock nut on the camber eccentric adjuster.

   > Tightening torque 110 N.m (81.1 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

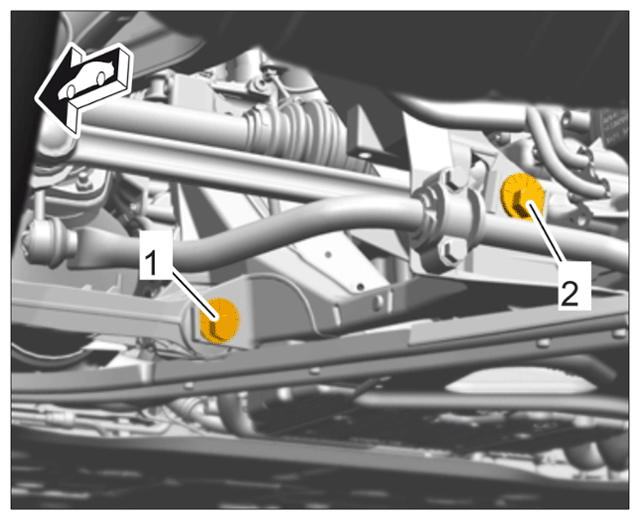

Rear-axle camber and toe eccentric adjuster
