Adjusting Front-Axle Toe

1. Remove front brake disc air guide.

   > WM, 461619 REMOVING AND INSTALLING AIR GUIDE FOR BRAKE DISC - section on "Removing".

2. Check whether the steering wheel is displaced with respect to the steering gear.
   1. 2.1 Move steering gear to center position.
   2. 2.2 Turn wheels to straight-ahead position.
   3. 2.3 Then, adjust the front wheel alignment if necessary until the center position marking -1-  is aligned with the arrow.

      If the front underbody panelling is fitted, the position of the center position marking can be checked using a mirror.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

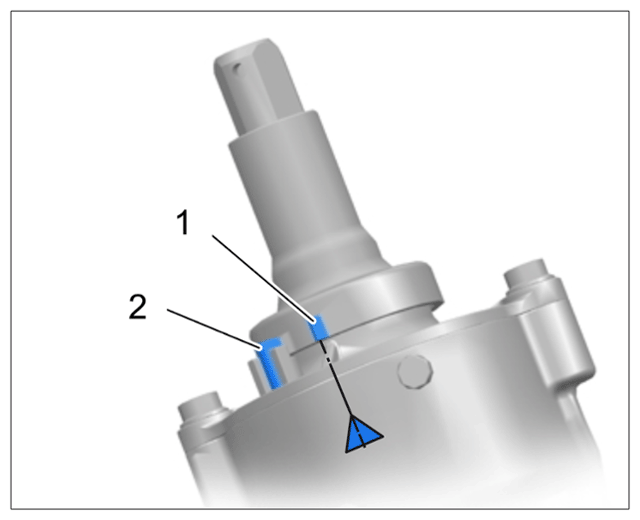

      Steering gear in center position

      1	Centre position marking
      2	Desired breaking point of retaining pin in new steering gears

   4. 2.4 Re-position the steering wheel if necessary. When re-positioning the steering wheel, try to find the best position.
3. Clamp steering wheel in center position with steering wheel holder -LHD vehicle -  . Use only steering wheel holders that do not project into the area of the airbag unit -RHD vehicle -  . If necessary, shorten guide rod of steering wheel holder at top -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

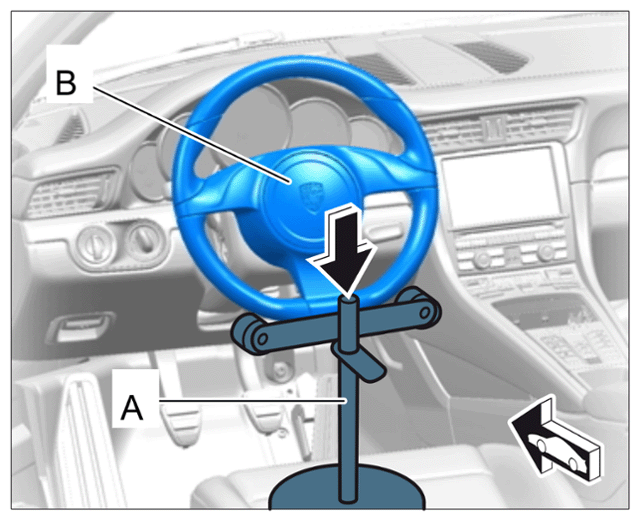

   Steering wheel holder (shown as an example)

   For fast and reliable steering wheel alignment in center position, use a > VAS 6826 - steering wheel scales  (with integrated angle measurement box).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

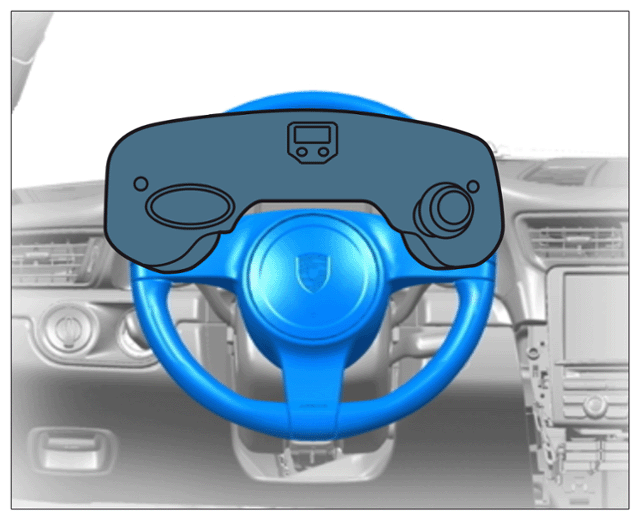

   Steering wheel scales (shown as an example)

4. With the steering wheel in center position, adjust the toe at the relevant tie rod.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

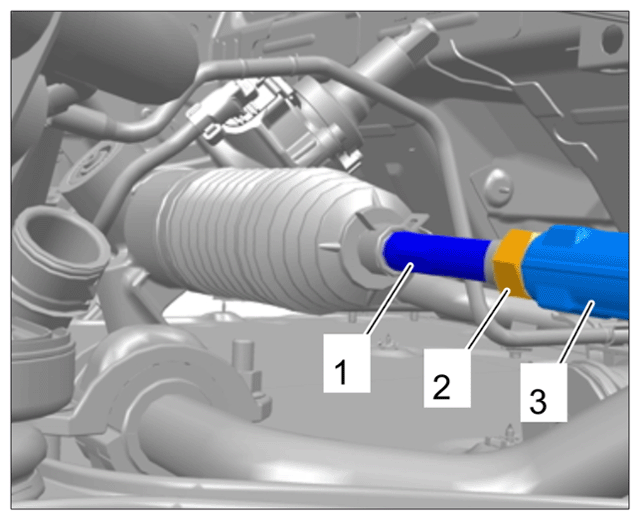

Adjusting front-axle toe

1. 4.1 Loosen lock nut -2-  . To do this, counter at the tie-rod ball -3-  using a suitable open-ended wrench.
2. 4.2 With the steering wheel in center position, adjust the toe at the hexagon -1-  on the tie rod(s) using a suitable open-ended wrench.
3. 4.3 Tighten lock nut to > Tightening torque 50 N.m (37 ft lb.)  .
4. 4.4 To loosen and tighten the lock nut, use > 9730 - socket-wrench insert-LHD vehicle -  together with a torque wrench -RHD vehicle -  .

The tightening torque for the lock nut when using > 9730 - socket-wrench insert-LHD vehicle -  corresponds to a value of approx. 32.5 N.m (24 ft lb.)  on the torque wrench.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

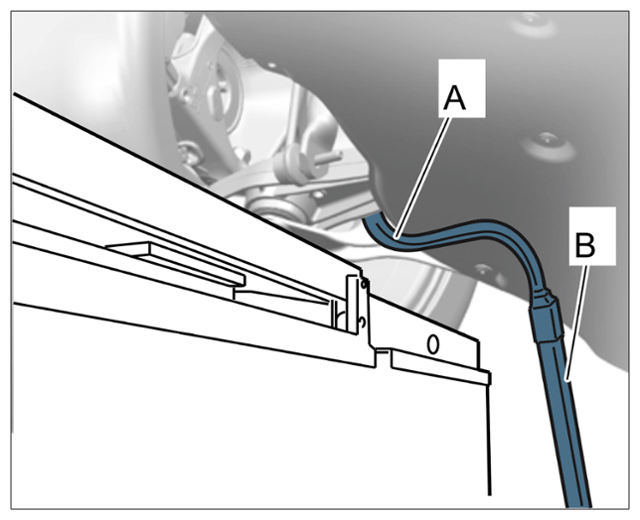

Loosening and tightening tie-rod lock nut
