Adjusting Front Axle Camber

1. To adjust the camber  , open the front lid and move the technical equipment space cover into service position.

   Service position: Lift up the cover and engage the yellow support in the luggage compartment lid to secure it -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

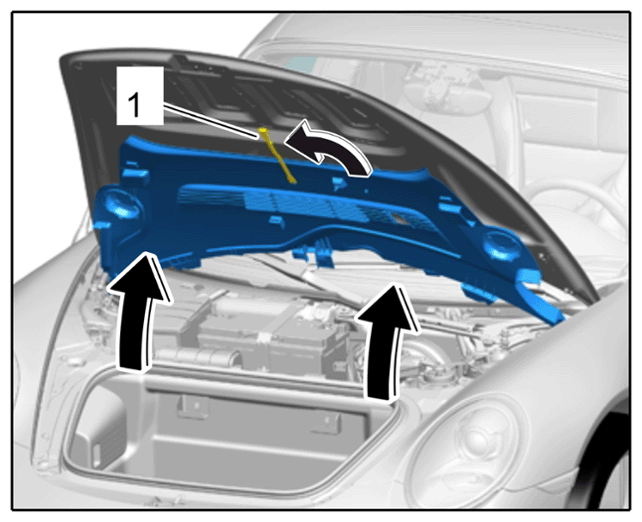

   Cover in service position

   Information

   The spring-strut mount is made of aluminum, so do not tap it, but use a suitable lever to prevent damage.

2. The camber is adjusted by moving the spring strut transversely -Arrows-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

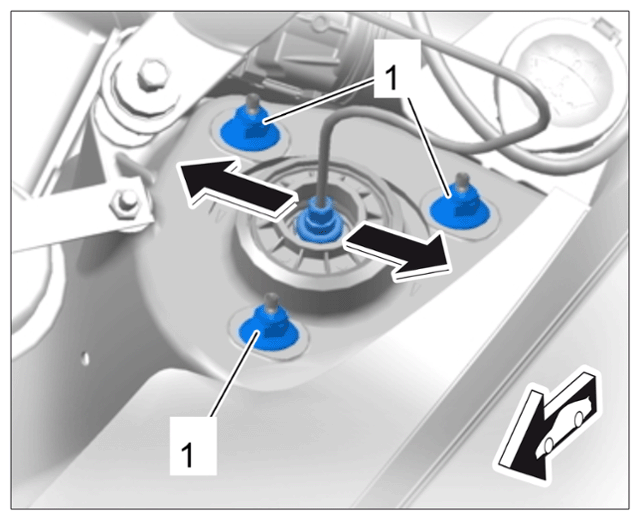

Adjusting front axle camber

1. 2.1 Loosen collar nuts -1-  on the spring-strut supporting mount and move the spring strut as required -Arrows-  .
2. 2.2 Tighten collar nuts -1-  .

   > Tightening torque 33 N.m (24.3 ft lb.)
