Preparing The Measuring Platform

1. Prepare the measuring platform (combined turn plates/sliding plates and weighting plates) and fit to the wheelbase.
2. Drive the vehicle onto the measuring platform. Drive as carefully as possible to avoid bottoming the vehicle (the front spoiler).

Due to the reduced vehicle height, also use -Stepped drive-on ramps with intermediate layers if necessary-  for driving onto floor-mounted measuring platforms. Measuring platforms without an inclination are unsuitable.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

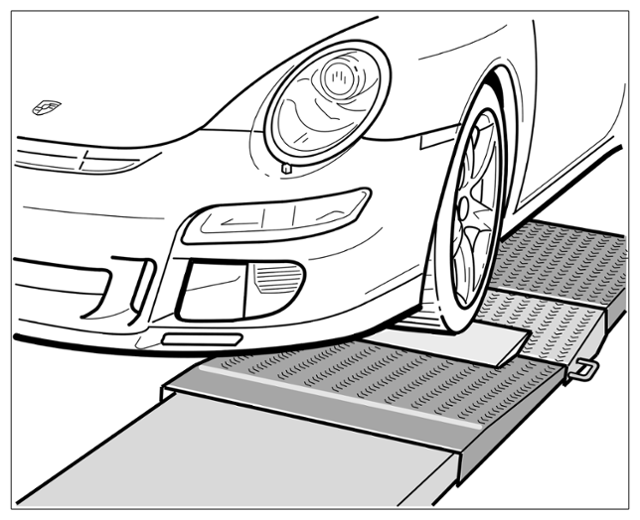

Stepped drive-on ramp (shown as an example)
