Measuring Vehicle Height

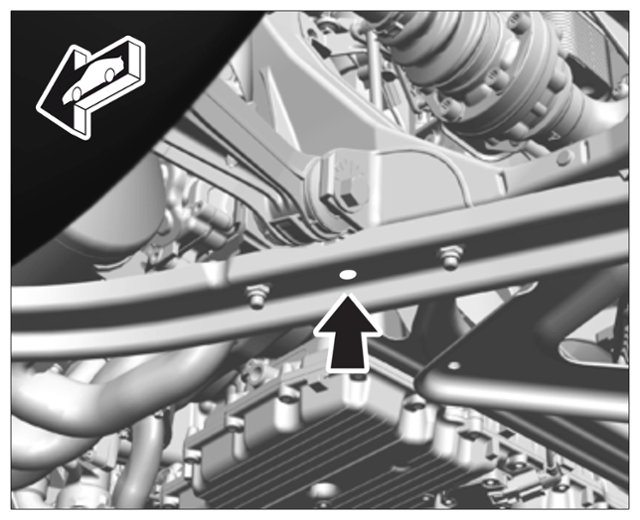

Front-axle height: Measure from road contact surface to measuring point on cross member/bulkhead of the body -Arrows-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measuring point for front-axle height

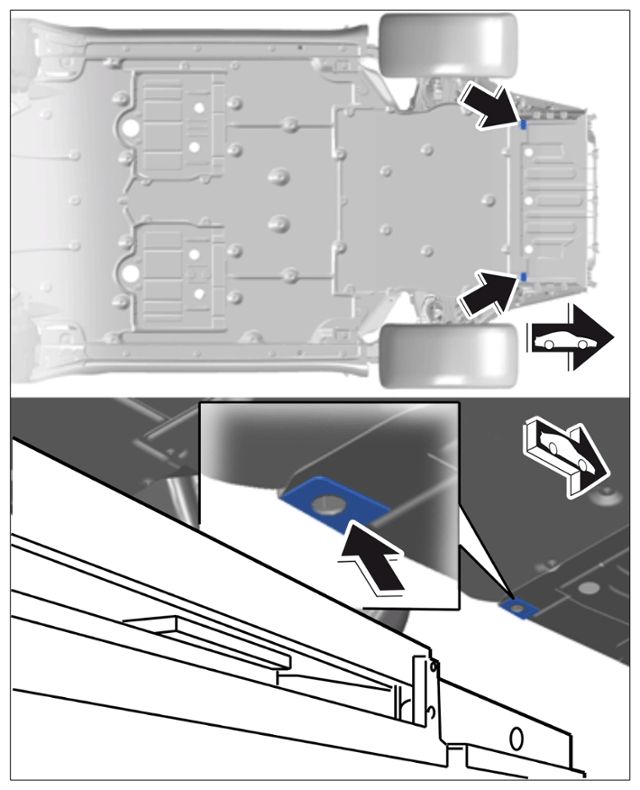

Rear-axle height: Measure from road contact surface to lower edge of diagonal brace (between the ribs) at wishbone fastening point -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measuring point for rear-axle height
