Adjusting Vehicle Height/Correcting Wheel Load Differences

The effects of the high turning forces of the stabilizers can falsify the measurement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Suspension/stabilizer on anti-roll bar (shown as an example)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

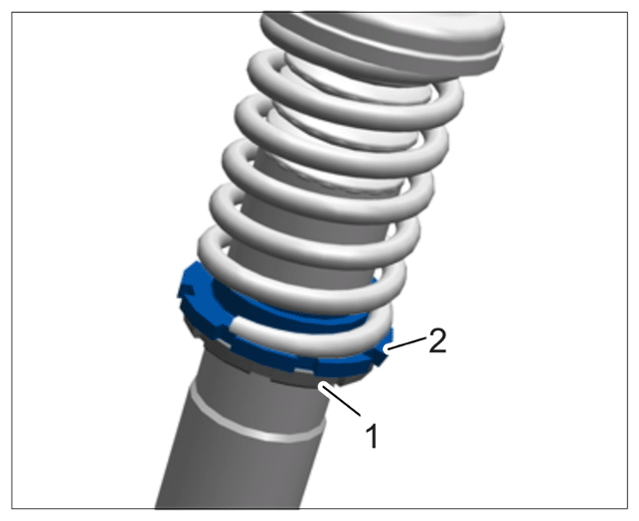

Adjusting vehicle height at front

1. 2.1 Loosen lock nut -1-  . Use a > 9647 - hook wrench  or special tool hook wrench (hook wrench insert) to do this.
2. 2.2 Raise the vehicle at the jacking points until the wheels can turn freely.
3. 2.3 Adjust nut -2-  turn clockwise = vehicle higher/turn anti-clockwise = vehicle lower.
4. 2.4 Lower the vehicle onto its wheels (remove pit lifter).
5. 2.5 Compress (pull down) the vehicle once and allow it to spring back freely. Then check the vehicle height and wheel loads.
6. 2.6 After you have adjusted the lock nut(s) -1-  on the front and rear axle, tighten with special tool > 9647 - hook wrench  together with a torque wrench.

   > Tightening torque 50 N.m (36.9 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

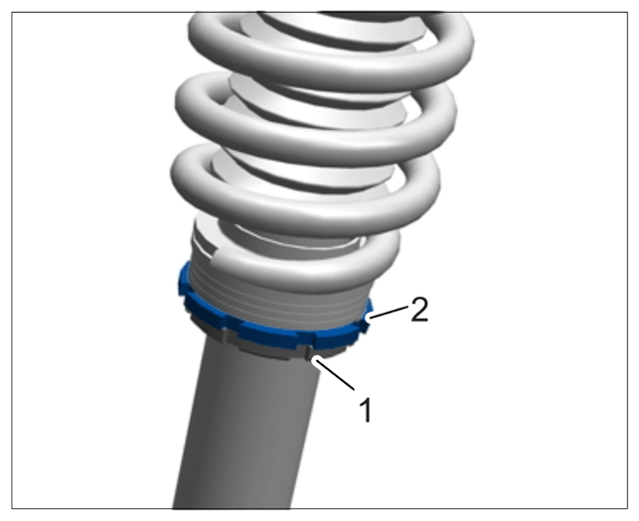

Vehicle height, rear - adjust

1. 3.1 Loosen lock nut -1-  . Use a > 9647 - hook wrench  or special tool hook wrench (hook wrench insert) to do this.
2. 3.2 Raise the vehicle at the jacking points until the wheels can turn freely.
3. 3.3 Adjust nut -2-  turn clockwise = vehicle higher/turn anti-clockwise = vehicle lower.
4. 3.4 Lower the vehicle onto its wheels (remove pit lifter).
5. 3.5 Compress (pull down) the vehicle once and allow it to spring back freely. Then check the vehicle height and wheel loads.
6. 3.6 After you have adjusted the lock nut(s) -1-  on the front and rear axle, tighten with special tool > 9647 - hook wrench  together with a torque wrench.

   > Tightening torque 50 N.m (36.9 ft lb.)

To ensure that there is no tension, loosen the anti-roll-bar mounts and turn the anti-roll bar as required if necessary.
