MC, 440000 Approved Wheels And Tires (38/19)

Technical values

Location	Des...	Type	Basic val...	Toleranc...	Toleranc...
Top speed		Speed	30 mph/50 km/h
			68° F/20°C
			45° F/7°C
Wheel mounting		Tightening torque	160 N.m (118 ft lb.)

Model year

From 2019

Vehicle Type:

718 Cayman GT4 (982), 718 Spyder (982)

Situation:

Approval status: November 2019

Sizes:

Permissible tire and wheel sizes

(RO = rim offset in mm, FA = front axle, RA = rear axle)

Tires	Tire sizes	Wheel sizes	Snow chains
718 Cayman GT4, 718 Spyder
Summer	FA: 245/35 ZR20 95 (Y) XL RA: 295/30 ZR20 101 (Y) XL	FA: 8, 5J x 20, RO 61 RA: 11J x 20, RO 50	No
Winter	FA: 235/35 R20 92V XL M+S RA: 275/30 R20 97V XL M+S	FA: 8J x 20, RO 57 RA: 10J x 20, RO 45	RA only
	FA: 245/35 R20 91V M+S RA: 295/30 R20 101V XL M+S	FA: 8, 5J x 20, RO 61 RA: 11J x 20, RO 50	No
	FA: 245/35 R20 91V M+S RA: 295/30 R20 97V M+S	FA: 8, 5J x 20, RO 61 RA: 11J x 20, RO 50	No

Wheels:

Overview of Porsche wheels for summer and winter tires

Identification on inside of wheel:

Wheel size, rim offset (RO) in mm, part number (without color code FFF) and Porsche logo

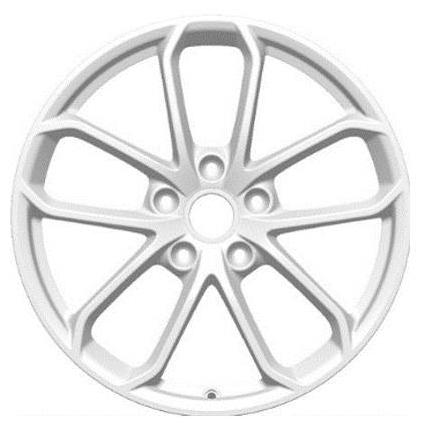

20-inch "Spyder/GT4" wheel  FA: 8, 5J x 20, RO 61 Part No. 982.601.025.AB_FFF RA: 11J x 20, RO 50 Part No. 982.601.025.AC_FFF	Courtesy of PORSCHE CARS NORTH AMERICA, INC. 20-inch Spyder/GT4 wheel

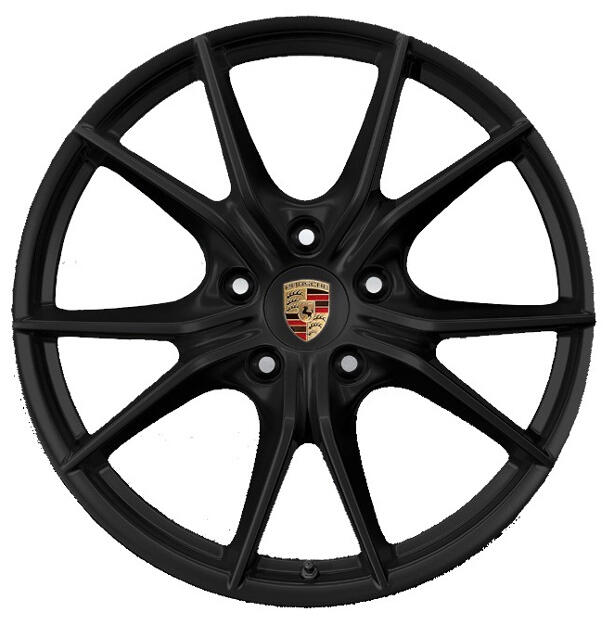

20-inch "Carrera S" wheel  FA: 8J x 20, RO 57 Part No. 982.601.025.AJ_FFF RA: 10J x 20, RO 45 Part No. 982.601.025.AK_FFF	Courtesy of PORSCHE CARS NORTH AMERICA, INC. 20-inch Carrera S wheel, black silky gloss

Information

Improper handling can damage the wheel surface.

Carry out tire removal and mounting using a bead holding-down device only.

Use a leather pad on the rim flange to support the valve insertion tool.

Only use the Porsche centering clamping set for balancing.

Do not use brushes to clean the wheels because brushes can cause deep scratches that cannot be removed by polishing.

Never use solvents or other chemical substances on tires.

Information

Wheel Mounting:

> Tightening torque 160 N.m (118 ft lb.)

Summer Tires:

Model	Tire size	Tire make and type
718 Cayman GT4, 718 Spyder	FA: 245/35 ZR20 (95Y) RA: 295/30 ZR20 (101Y) XL	Michelin Pilot Sport Cup 2 N1 (Inside/Outside) Dunlop Sport Max Race 2 N1 (Inside/Outside)

Winter Tires:

Model	Tire size	Tire make and type
718 Cayman GT4, 718 Spyder	FA: 235/35 R20 92V XL M+S RA: 275/30 R20 92V M+S	Michelin Pilot Alpin 4 N0 (Rotation)
	FA: 245/35 R20 91V M+S RA: 295/30 R20 97V M+S	Michelin Pilot Alpin 4 N1 (Rotation) Pirelli Winter 240 Sottozero Series II N0 (Inside/Outside)

Arrow with inscription "Rotation" = directional mounting

"Inside/Outside" inscription or "Left" or "Right" = mounting on specified side only

Arrow with both inscriptions "Rotation" and "Inside/Outside" = directional mounting on specified side only.

Arrow with both inscriptions "Rotation" and "Left" or "Right" = directional mounting on specified side only.

Information

Information

"N..." = Specification code of the tire, e.g. "N0", "N1", "N2"... The complete "N..." code of the tires in question must be shown on the tire sidewall near the tire type designation.

Instructions for correct mounting of the tires are also given on the tire sidewall. If there are no mounting instructions on the tire sidewall, the tire must be mounted so that the DOT marking is visible from the outside.

Information

If a tire is damaged and it is not possible to determine with absolute certainty that there is no ply damage - with all of its consequences - or if the tire was thermally and/or mechanically overloaded due to a loss of pressure or other prior damage, replace the tire in question for safety reasons.

Repairs to "V", "W", "Y" and "ZR" tires are not permissible, as well as the use of inner tubes in tubeless tires. Please inform your customers accordingly. It is advisable to mount winter tires at temperatures below > 45° F/7°C  , because the driving characteristics of summer tires are reduced at low temperatures. Extremely low temperatures can cause permanent damage to summer tires.

Information

The tire pressure applies only to the tire makes and types approved by Porsche, and is specified for cold tires (approx. > 68° F/20°C  ). The tire pressures must never be lower than the specified values.

Standard tire pressure for summer tires

Wheel size	718 Cayman GT4, 718 Spyder
	FA	RA
20-inch wheels	2.0 bar 200 kPa 29 psi	2.3 bar 230 kPa 33 psi

Standard tire pressure for winter tires

Wheel size	718 Cayman GT4, 718 Spyder
	FA	RA
20-inch wheels	2.5 bar
	250 kPa
	36 psi

Porsche offers the following snow chains as accessories:

Tire size	Porsche Part No.	Type of snow chain
275/30 R 20 M+S	981.044.600.00	Link-type chain, quick install

Wheel Storage:

• Tires must be stored in a cool, dry and dark room with adequate ventilation.
• Tires must never come into contact with fuel, oil, grease or chemicals.
• Do not store summer tires in storage areas with ambient temperatures of less than 5° F (-15° C).
• Complete wheel & tire assemblies can be stacked for storage; we recommend that you increase the tire pressure by approximately 6 psi (0.4 bar).
• Optimum conditions for storage of the complete wheels are provided by the Original Porsche storage trolley, Part No. 000.044.000.38.
• If the tires are not mounted on wheels, it is best to store them in a vertical position.
• We recommend that you turn tires stored in this position every two weeks in order to prevent flat spots.
• Tires that are stacked in a horizontal position will become severely deformed and cannot be seated properly in the rim flange when they are mounted.

General Information:

• Always use new valves when changing tires.
• Always observe any possible instructions concerning the rolling direction and/or specifying which side the tires must be mounted on.
• Coat the tire beads and humps with mounting lubricant before mounting the tire. This ensures that the tire beads will slide over the humps easily.
• In order to prevent the tire from turning on the wheel, avoid extreme driving maneuvers (acceleration and braking) during the first 100 to 200 miles with new or recently mounted tires.
• In order to optimize smoothness of rolling, it is appropriate - and necessary in individual cases - to mount the tire in a certain (favorable) position with respect to the wheel (matching).

Matching (uncontrolled and controlled) is explained below: Uncontrolled matching:

• Turning the tire on the wheel by 90° or 120° if necessary in order to achieve an acceptable value with regard to rolling smoothness (true running, imbalance and weight distribution of balance weights).

Controlled matching:

• With a balancing machine with matching program. In most cases, this produces uneven better result with regard to the rolling smoothness (true running, imbalance and weight distribution of the balance weights) than can be achieved with uncontrolled matching.
• Maximum permissible radial runout and lateral runout of the wheels < 0.7 mm. Maximum permissible radial runout and lateral runout of the wheels with tires< 1.25 mm. Values< 1.50 mm -ideally approx. 0.5 mm - are desirable.
• The mounting pressure (seating pressure) of 58 psi/4.0 bar overpressure must not be exceeded before both tire beads are evenly seated on the rim flange.

New Tires (Replacements):

• If new tires are to be mounted or the tires of one axle are to be replaced, tires of the same make, type and with the same specification code must always be used on each of the two axles.
• If tires are replaced on one axle only, the different tread depth from that on the other axle can cause a noticeable change in the familiar handling.
• This is especially the case if new tires are mounted on the rear axle.
• This effect decreases with increasing tire mileage.

When replacing a tire on an axle, make sure that the tread depth of the new tire does not differ from that of the other tire by more than 30 %.

Refer to WM 449503 for specific details of the vehicle you are working on.

• >The 2mm specification will be given here.
• > If there is none listed then the default is 30%.

Repairs to Tires:

• If a tire is damaged and it cannot be determined with absolute certainty that there is no ply damage- with all of its consequences - or if the tire was thermally or mechanically overloaded due to a loss of pressure or other prior damage, we recommend replacement of the tire in question for safety reasons.
• Repairs on "ZR" tires are not permissible, as is the use of inner tubes in tubeless tires.

Tire Aging:

• Tires age due to chemical and physical processes, which can impair their function.
• Tires that are stored unused for an extended period harden and become brittle faster than tires that are in continual use.
• Hairline aging cracks can occur on older tires.
• On tires in continual use, the kneading action activates the plasticizer in the rubber and thereby prevents hardening and cracking.
• Therefore, attention should be paid not only to the tread depth but also to the age of the tire.
• Tires should not be older than 6 years.
• The age of the tire can be determined via the DOT code on the sidewall, which indicates the production date of the tire: e.g. DOT 2201= 22nd week of 2001.
