Installing Front Wheel Bearing Housing
Information
- Protect electric line as required when installing the spring strut on vehicles with PASM.
- Do not lift/transport the spring strut/vibration damper at the electric lines.
- A second mechanic is needed in order to install the spring strut/wheel bearing housing.
- Make sure that the retaining pins do not damage the paint surface when fitting the spring strut mount. (Seal damaged areas with suitable preservative).
- Observe specified tightening torques and torque angle.
- Always replace lock nuts.
- Position spring strut in the clamped connection in the wheel bearing housing.

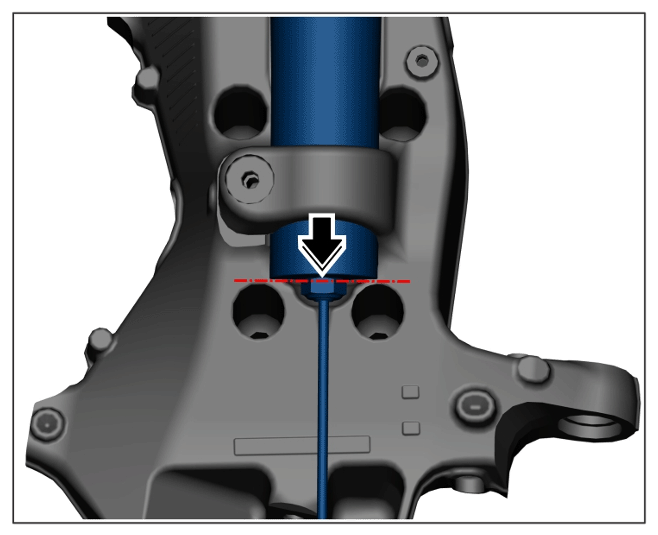

Spring strut seat in wheel bearing housing
- 1.1 Push in spring strut with the lowered contact surface as far as it will go -Arrow/line- .
- Fix clamped connection for spring strut/wheel bearing housing at the bottom.
Spring strut clamp in wheel bearing housing
- 2.1 Fit screw -3- .
- Position spring strut/wheel bearing housing with the help of another person and secure it to the body (observe markings on removal).

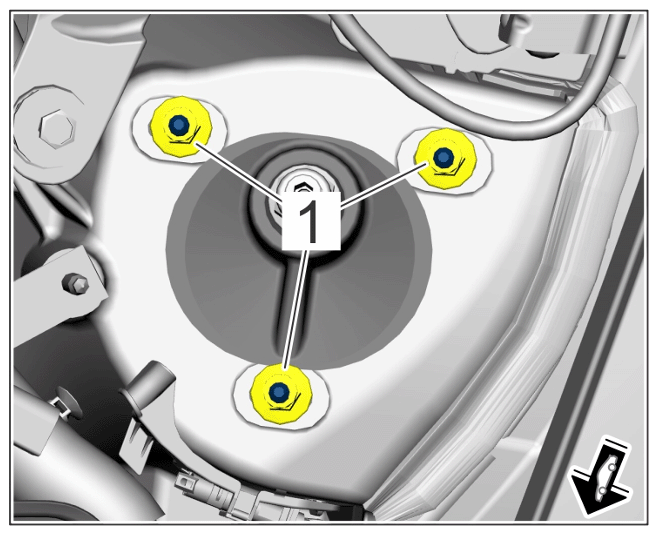

Front spring strut to body
- 3.1 Fit and tighten collar nuts -1-
.
> Tightening torque 33 N.m (24.3 ft lb.)
- 3.1 Fit and tighten collar nuts -1-
.
- Secure lower trailing arm -5-
to the wheel bearing housing.

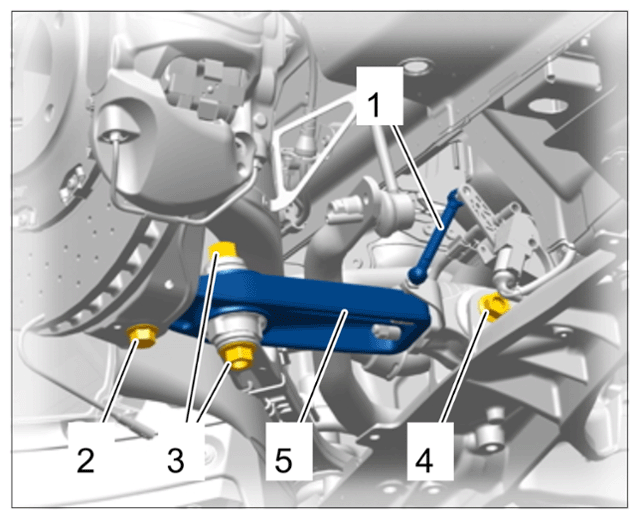

Mounting for lower trailing arm
- 4.1 Tighten screw. -2-
> Tightening torque 120 N.m (89 ft lb.)
Information
Following installation, seal the threaded joint securing tie rod to wheel bearing housing with wax as shown in -Illustration- . Use Pfinder AP14/4 for this (see PIWIS Parts Information - PET).

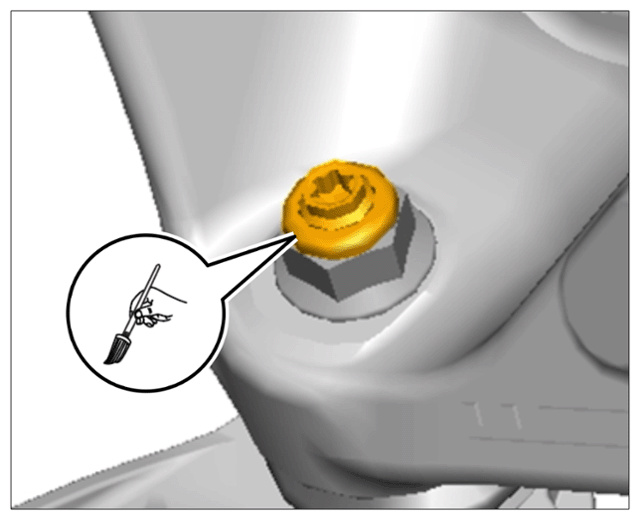

Applying wax on marked area (shown on threaded joint securing lower trailing arm)
- 4.1 Tighten screw. -2-
- Tighten hexagon nut securing tie-rod ball to wheel bearing housing -1-
.
> Tightening torque 85 N.m (63 ft lb.)

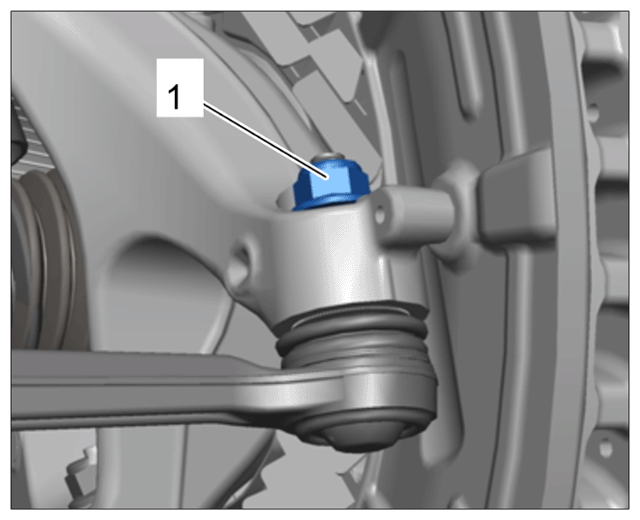

Tie rod to wheel carrier
- 5.1 When tightening the hexagon nut, counter at the ball joint threaded bolt -1- using a special > 9546 - screwdriver .
Information
Only for GT4/GT4 RS/Spyder:
Fit connecting links (suspension/stabiliser) in the central position on the anti-roll bar.

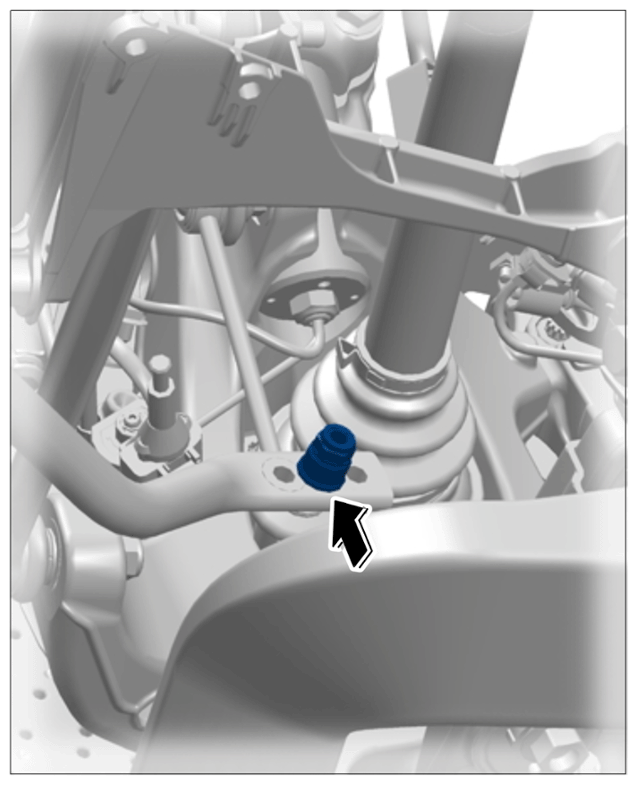

Position of suspension/stabiliser on anti-roll bar
- Secure spring strut in clamp on wheel bearing housing.

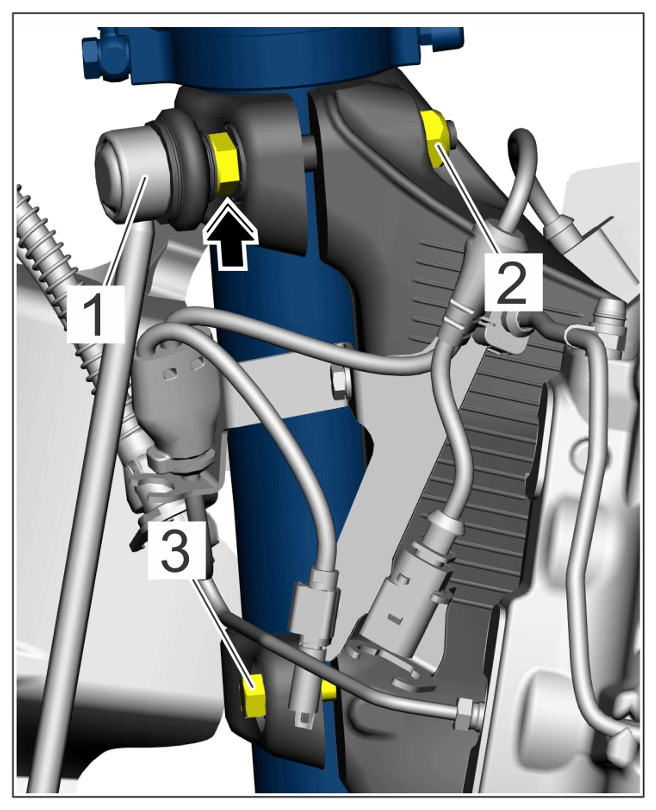

Spring strut clamp in wheel bearing housing
- 6.1 Fit threaded bolt for connecting link -1-
and tighten collar nut -2-
.
Counter at the hexagon wrench face of the connecting link -Arrow- when tightening the collar nut.
> Tightening torque 85 N.m (62.7 ft lb.)
- 6.2 Tighten screw on -3-
lower clamp.
> Tightening torque 23 N.m (17 ft lb.)
- 6.1 Fit threaded bolt for connecting link -1-
and tighten collar nut -2-
.
- Install brake discs.
Screw in and tighten screws -Arrows- .
> Tightening torque 10 N.m (7.4 ft lb.)

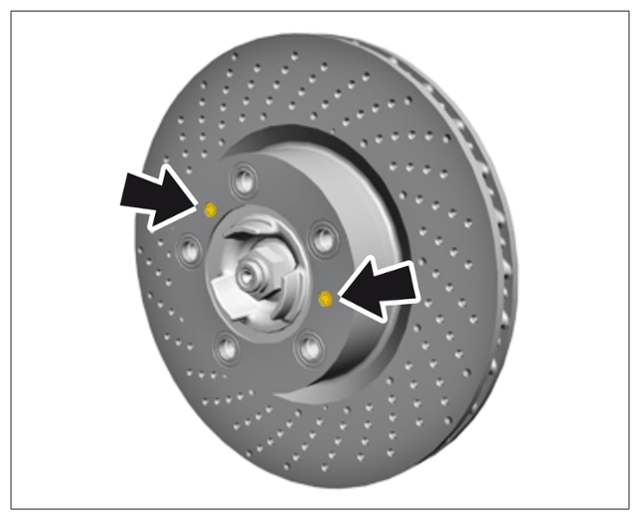

Brake disc screws
Information
- Brake calliper screws can always be re-used if no damage can be identified.
- Replace damaged bolts.
- Observe different tightening specifications!
- Install rear brake calliper with line bracket.
- 8.1 Position the brake calliper with the holder, place the brake calliper bolts -Arrows-
and tighten them.

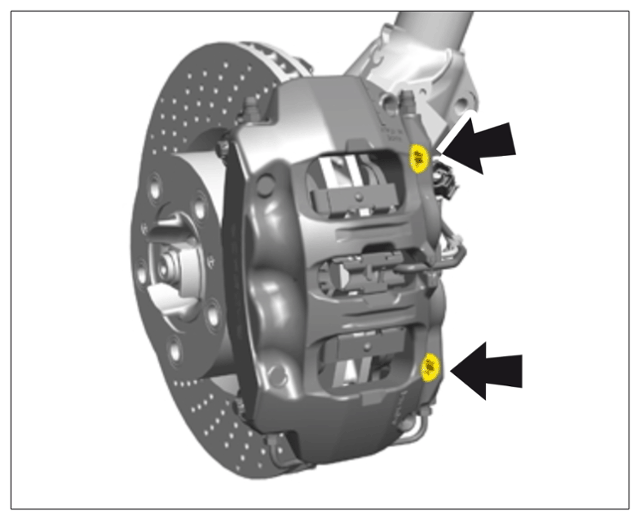

Brake calliper screws (shown as an example)
- 8.1.1 When re-using the screws: > Tightening torque 85 N.m (62.7 ft lb.)
- 8.1.2 New screws: > Initial tightening 30 N.m (22.1 ft lb.) > Final tightening + 75°
- 8.2 Place bolts -3-
on the wheel bearing housing and tighten.
> Tightening torque 10 N.m

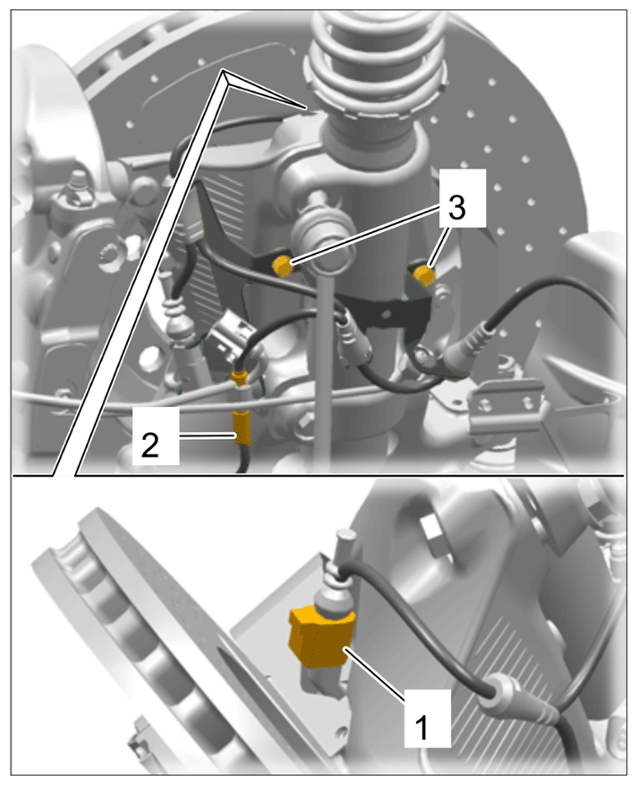

Bracket on wheel bearing housing
- 8.3 -1- Connect and lock cable plug for rpm sensor.
- 8.4 -2- Connect and lock cable plug for PASM.
- 8.1 Position the brake calliper with the holder, place the brake calliper bolts -Arrows-
and tighten them.
