Removing Roll-Over Bar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

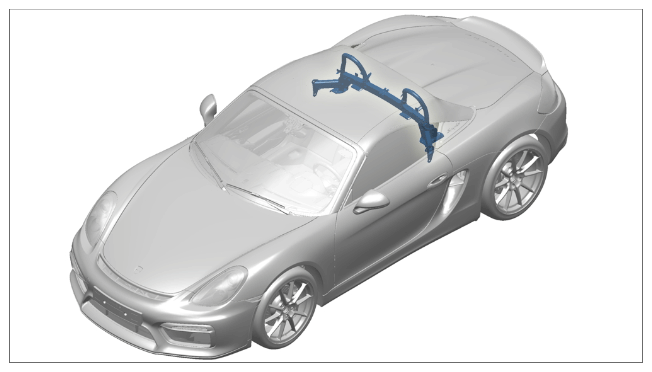

Installation position of roll- over bar

1. Open the convertible top.
2. Unscrew and remove fastening screw -1-  for belt strap guide -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

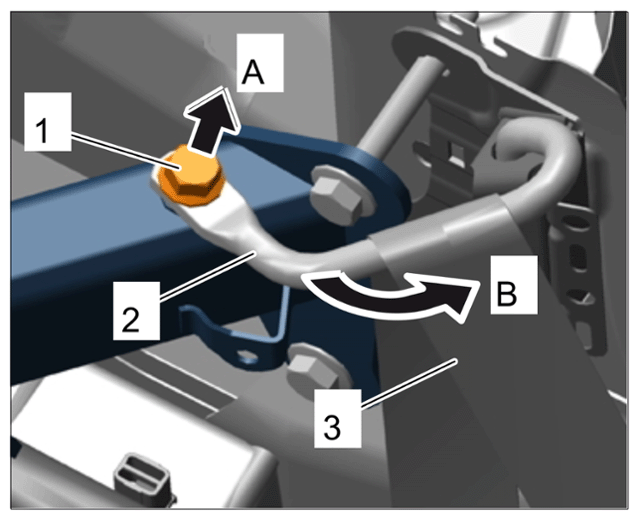

   Loosening fastening screw for belt strap guide

   1. 2.1  Turn belt strap guide -2-  forward.
3. Unscrew and remove the side fastening screws -1-  for the roll-over bar.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

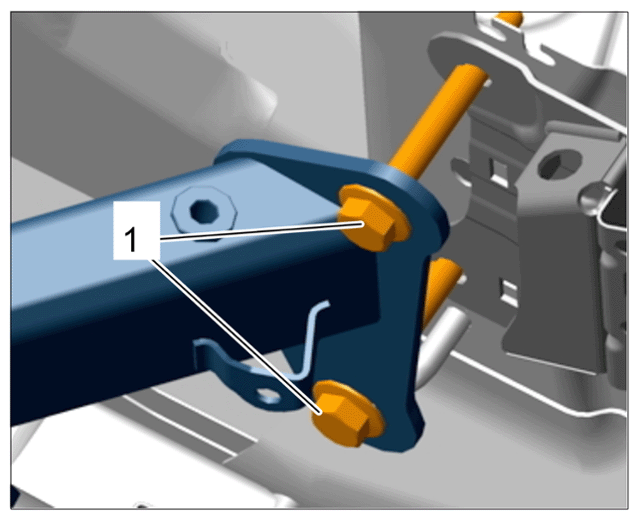

   Unscrewing side fastening screws

4. Unscrew and remove the front fastening screw -1-  for the roll-over bar.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

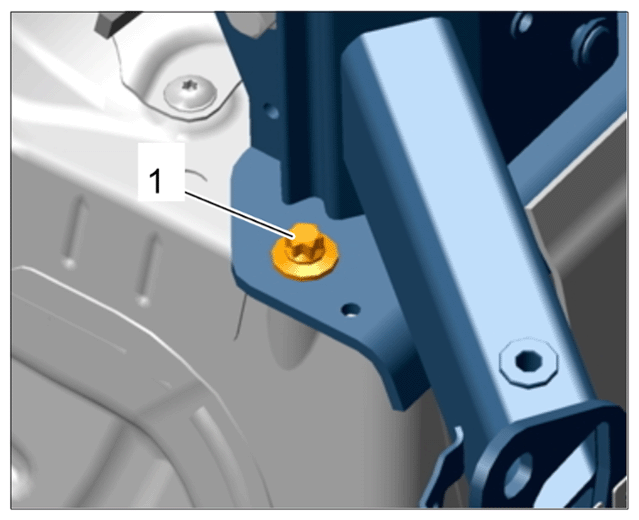

   Unscrewing front fastening screw

5. Unscrew and remove the rear fastening screw -1-  for the roll-over bar in the convertible top compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

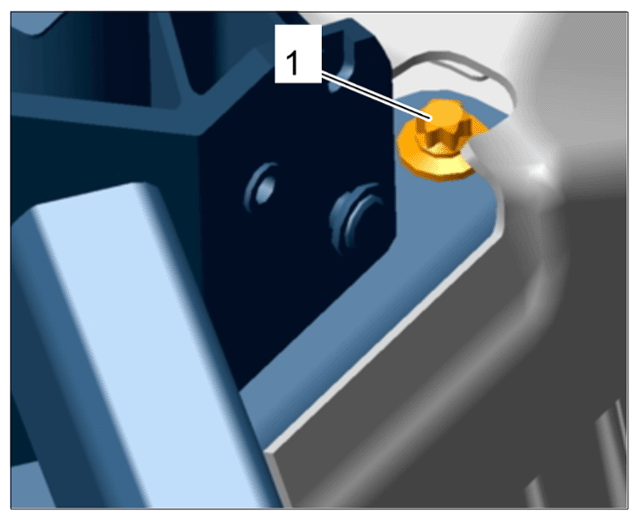

   Loosening rear fastening screw

6. Loosen fastening screw -1-  on the flap mechanism.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

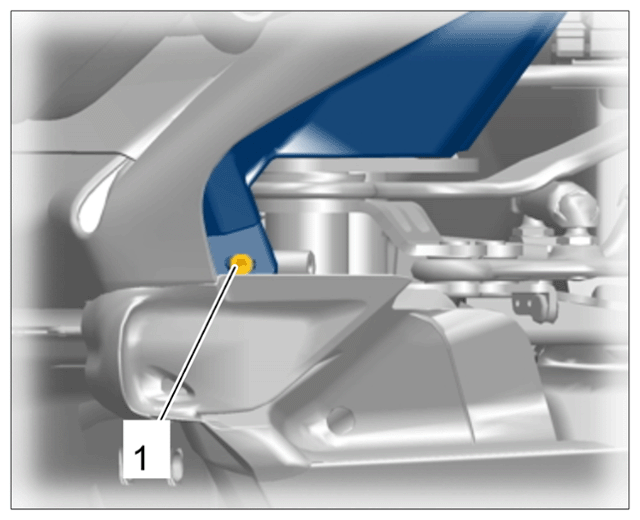

   Loosening fastening screw for flap

7. Unclip wire harness for loudspeaker at the roll-over bar.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

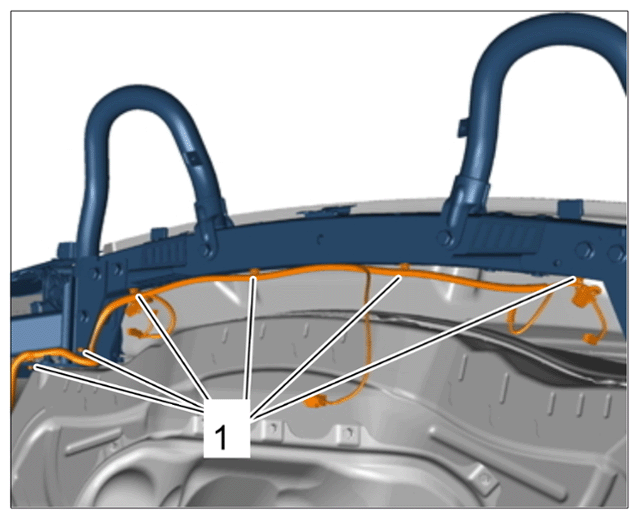

   Loosening clips for wire harness

8. Remove roll-over bar in -direction of arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

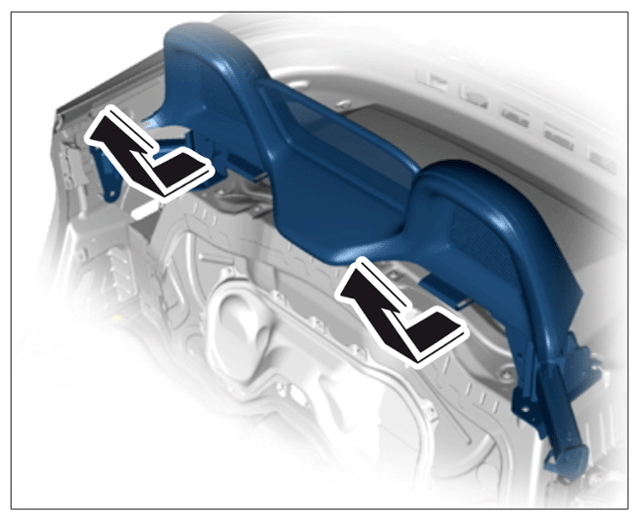

   Removing roll-over bar
