Removing Technical Equipment Space Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake air duct sleeves

1. 1.1  Pull lip -2-  of the sleeve off the cut-out -3-  on the technical equipment space cover.
2. 1.2  Carefully pull off bracket -1-  for the sleeve.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

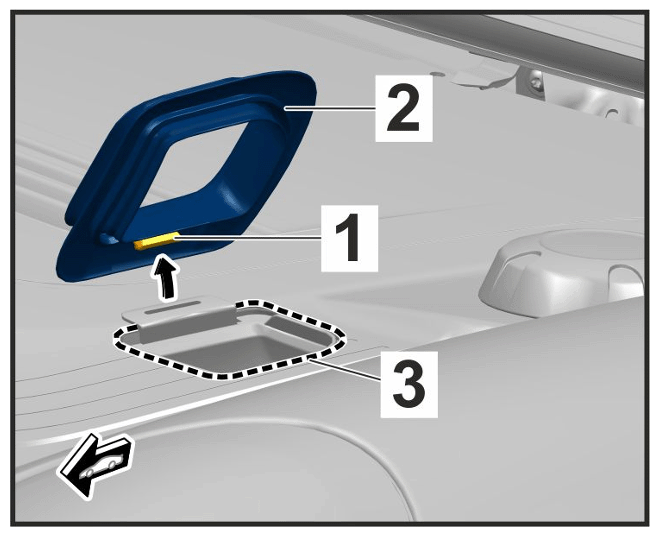

Brake air duct sleeve mounting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

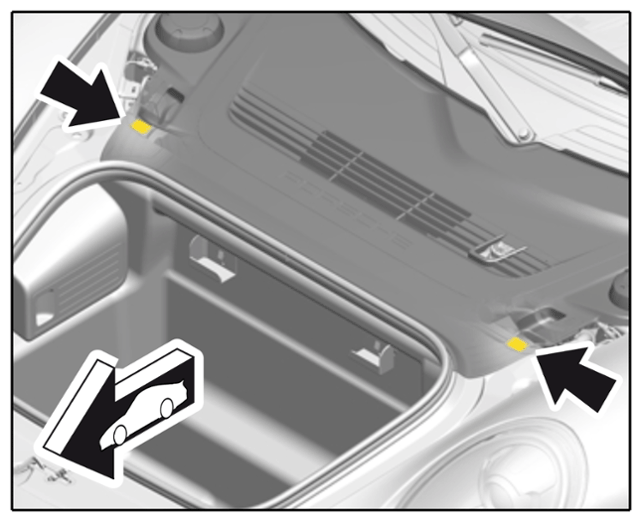

Retaining clips on technical equipment space cover
