Installing Technical Equipment Space Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

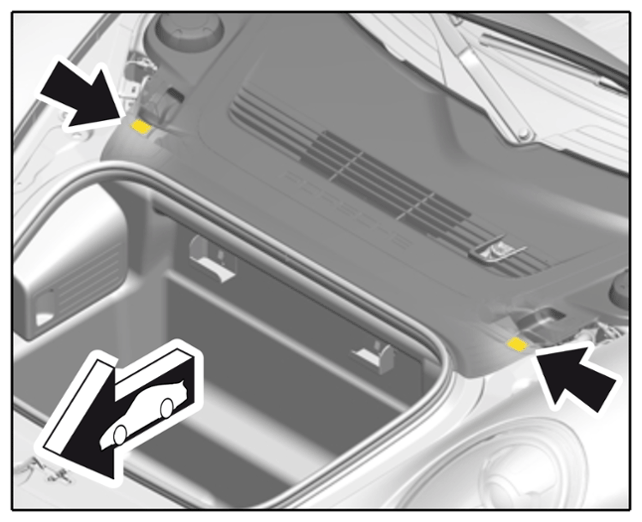

Retaining clips on technical equipment space cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake air duct sleeves

1. 2.1  Guide bracket -1-  on the sleeve into the opening on the brake air duct and technical equipment space cover.
2. 2.2  Guide lip -2-  of the sleeve into the cut-out -3-  on the technical equipment space cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

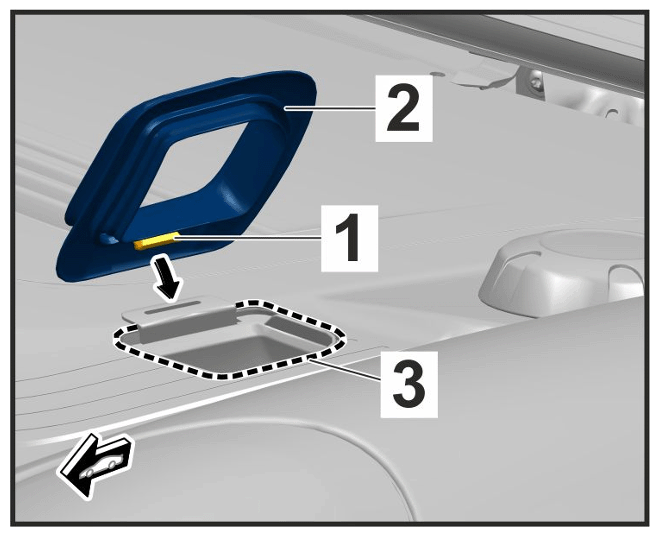

Brake air duct sleeve mounting
