Expansion Valve

TIGHTENING TORQUE SPECIFICATION

Location	Description	Type	Basic value
Fastening screw securing expansion valve to holder	Fastening screws, M5	Tightening torque	6 N.m (4.5 ft lb.)

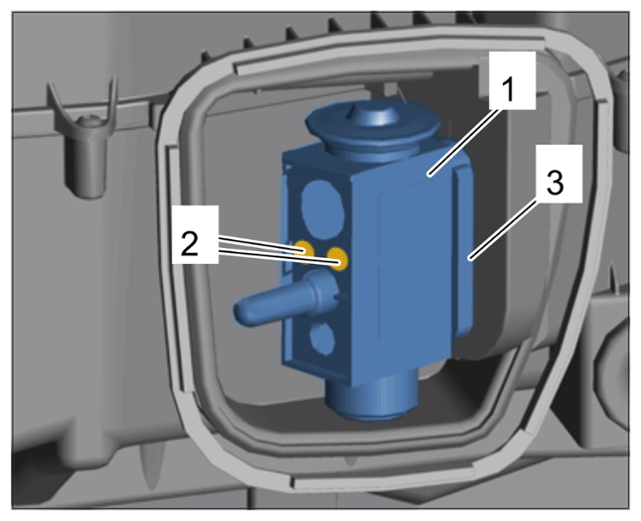

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for expansion valve
Fastening nut securing refrigerant line holder to expansion valve	M6 fastening nut	Tightening torque	8 N.m (6 ft lb.)

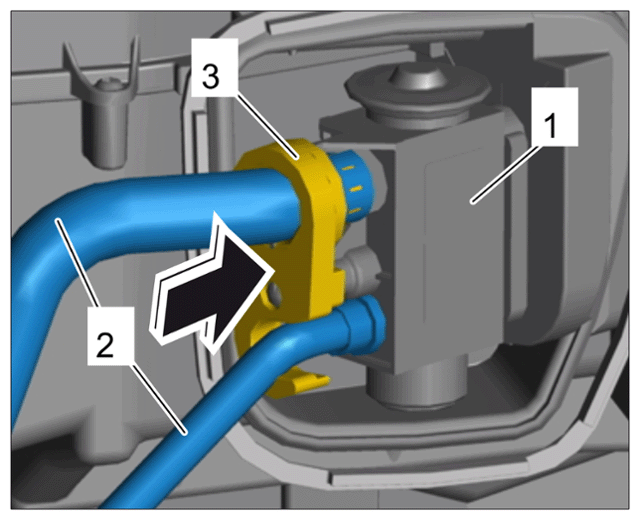

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installing holder
Battery console to body	Fastening screws, M8	Tightening torque	23 N.m (17 ft lb.)

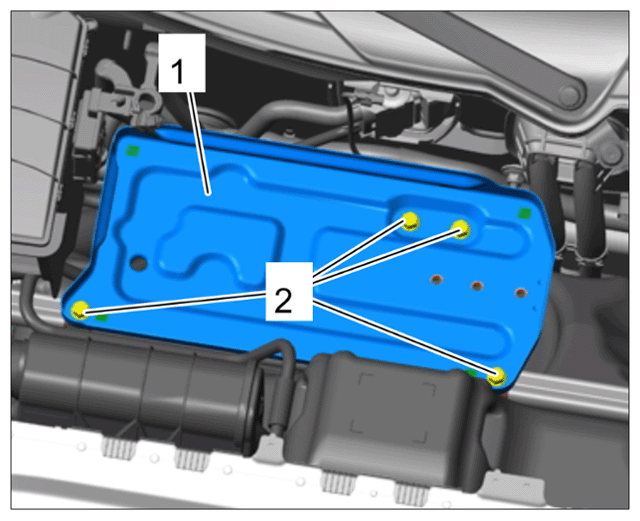

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing and installing battery console
