Air-Conditioning Compressor
TIGHTENING TORQUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Fastening screw for air-conditioning compressor, rear | Tightening torque | 23 N.m (17 ft lb.) | ||
| Fastening screws for air-conditioning compressor, front | External Torx screw, M8 x 90 (2x) | Tightening torque | 23 N.m (17 ft lb.) | |

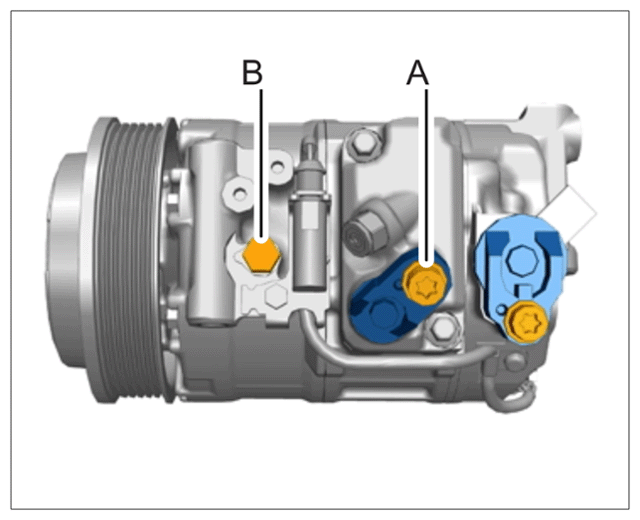

| Fastening screws securing refrigerant lines to air-conditioning compressor | Internal Torx, M8 | Tightening torque | 23 N.m (17 ft lb.) | |
| Oil filler screw on air-conditioning compressor | B | Tightening torque | 10 N.m (7.4 ft lb.) | |
|
Cap and oil filler screw |
||||
| Holder for charge air cooler to engine | Tightening torque | 9.7 N.m (7.2 ft lb.) | ||
| Holder for terminal 30 junction point to engine | Tightening torque | 9.7 N.m (7.2 ft lb.) | ||
