Heating/Fresh-Air Unit
TIGHTENING TORQUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance |
| Heating/fresh-air unit to dashboard bracket |
M6 fastening nut |
Tightening torque |
8 N.m (6 ft lb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

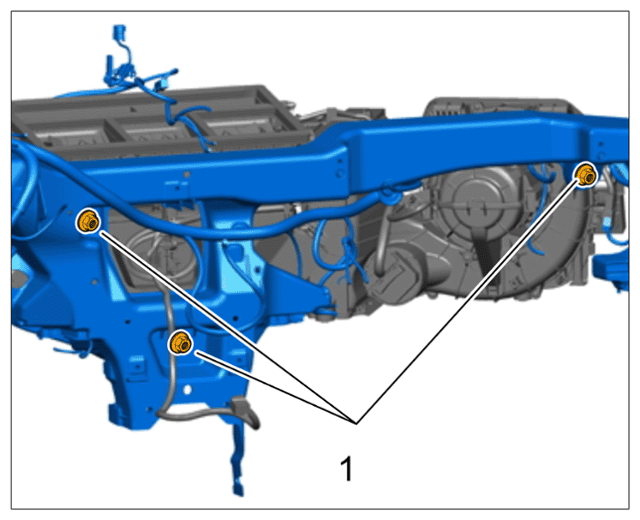

Fastening nuts for heating/fresh-air unit |
