Air Inlet
TIGHTENING TORQUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Air inlet to firewall | Fastening nuts, M6 | Tightening torque | 3 N.m (2 ft lb.) | |

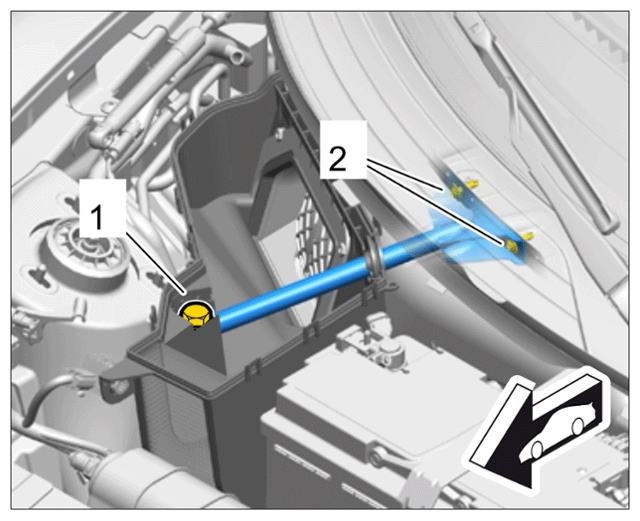

| Diagonal brace to firewall | Fastening screws, M8 | Tightening torque | 11 N.m (8 ft lb.) | |
|
Removing and installing diagonal brace |
||||
| Diagonal brace to spring strut mount | Fastening screw, M8 | Tightening torque | 23 N.m (17 ft lb.) | |
|
Removing and installing diagonal brace |
||||
