Removing Cylinder Head Cover For Cylinder Bank 2

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

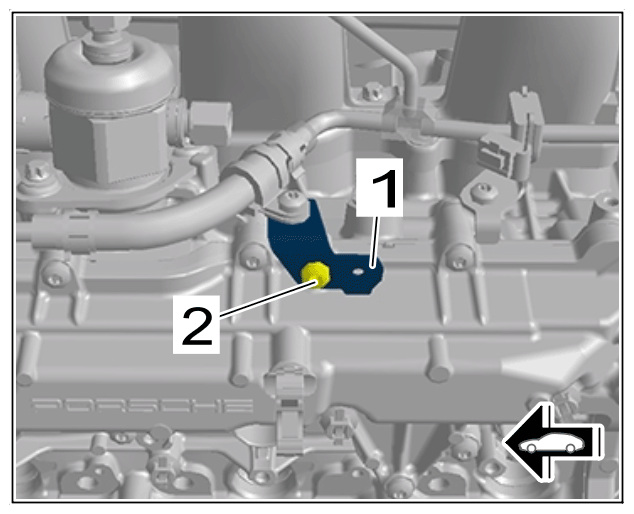

Loosen holder -1- .
1. 1.1 Unscrew screw -2- .
2. 1.2 Move holder -1- aside.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness holder

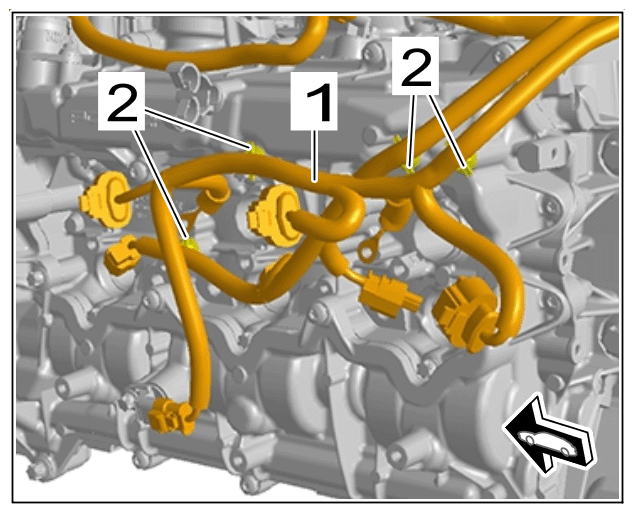

Disconnect electric wire harness -1- .
1. 2.1 Unclip clips -2- .
2. 2.2 Set electric wire harness -1- aside.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness for cylinder bank 2

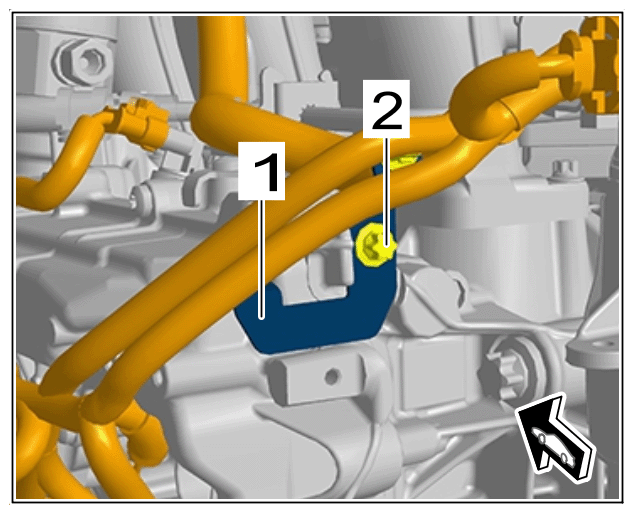

Loosen holder -1- .
1. 3.1 Unscrew screw -2- .
2. 3.2 Move holder -1- aside.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel line holder

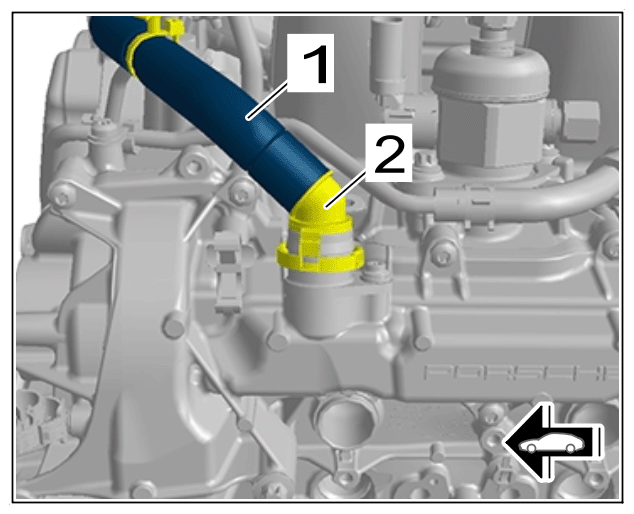

Disconnect vent line -1- .
1. 4.1 Release and disconnect quick connector -2- .
2. 4.2 Close off line connections using suitable stoppers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line
Remove cylinder head cover -22- .

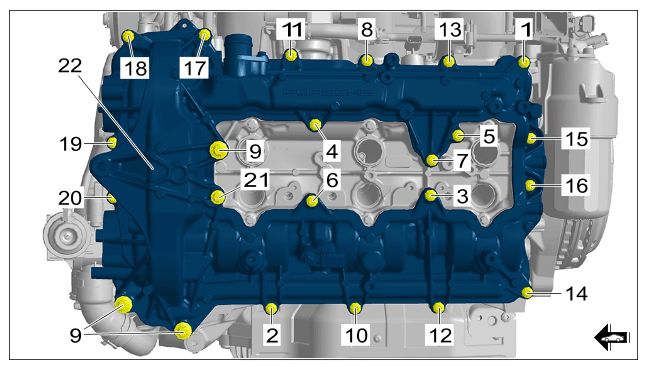

1. 5.1 Unscrew screws in the sequence -21 to 1- .
2. 5.2 Remove cylinder head cover -22- .
3. 5.3 Clean cylinder head cover seals, check for signs of damage and replace if necessary.

Fig 1: Cylinder Head Cover Screws Loosening Sequence (Cylinder Bank 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cylinder head cover for cylinder bank 2
