Installing Cylinder Head Cover For Cylinder Bank 1

1. 1.1  Clean sealing surfaces.
2. 1.2  Position cylinder head cover -24-  .
3. 1.3  Screw in screws -1 to 23-  by hand.
4. 1.4  Tighten screws in the sequence -1 to 8-  .

   > Tightening torque 13 N.m (9.5 ft lb.)

5. 1.5  Tighten screws -9-  .

   > Tightening torque 33 N.m (24 ft lb.)

6. 1.6  Tighten screws in the sequence -10 to 23-  .

   > Tightening torque 13 N.m (9.5 ft lb.)

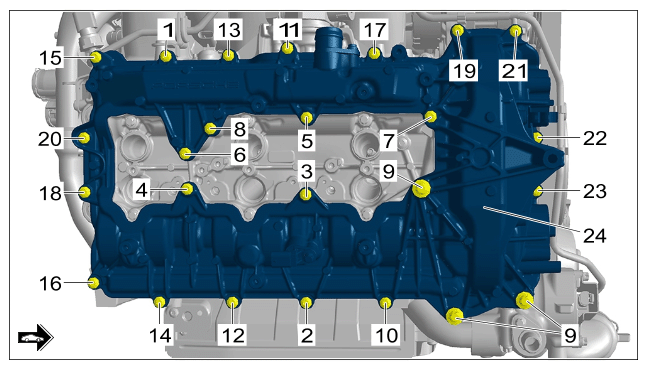

   Fig 1: Cylinder Head Cover Screws Tightening Sequence (Cylinder Bank 1)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cylinder head cover for cylinder bank 1

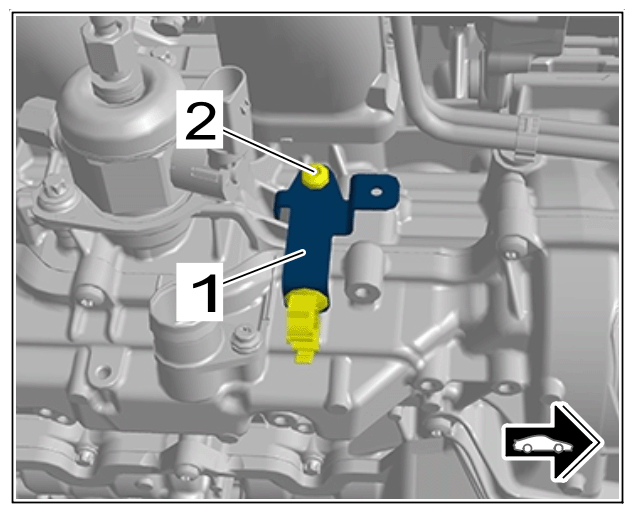

1. 2.1  Position holder -1-  .
2. 2.2  Fit and tighten screw -2-  .

   > Tightening torque 13 N.m (9.5 ft lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Holder for cylinder head cover for cylinder bank 1

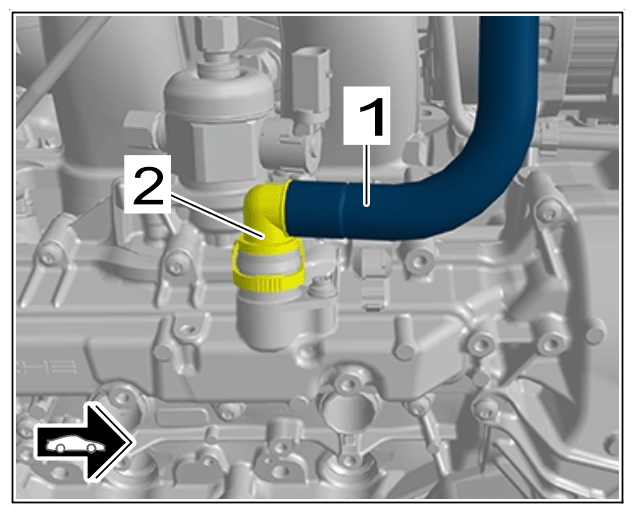

1. 3.1  Push on and lock quick connector -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line

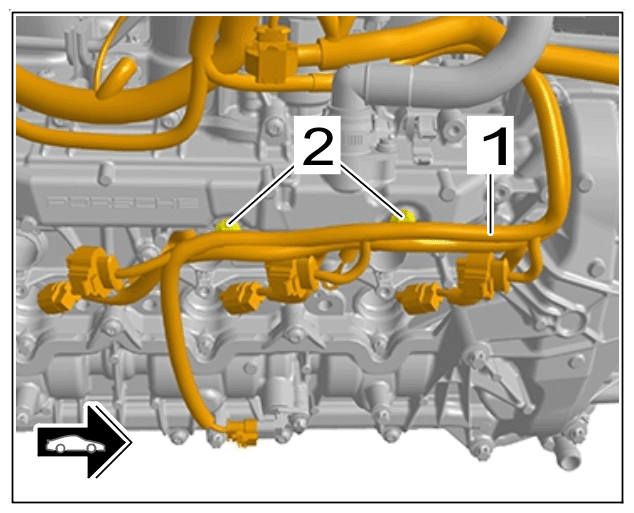

1. 4.1  Route electric wire harness -1-  .
2. 4.2  Clip in clips -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness for cylinder bank 1

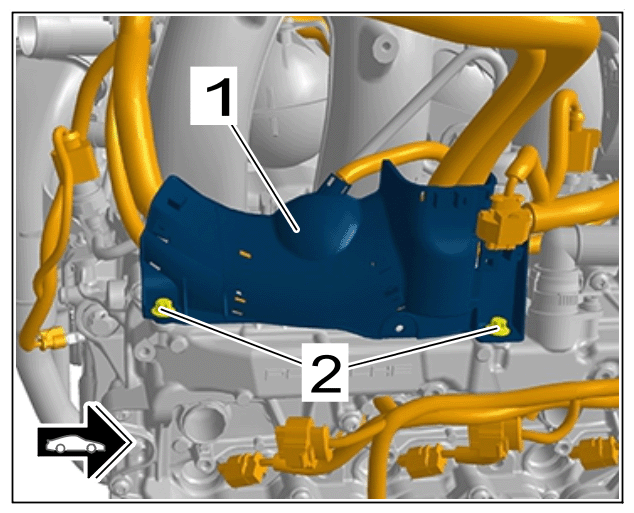

1. 5.1  Position cable duct -1-  .
2. 5.2  Fit and tighten screws -2-  .

   > Tightening torque 13 N.m (9.5 ft lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable duct
