Assembling Cylinder Head
Information
Reusable inner parts of the cylinder head must always be cleaned thoroughly and assigned to their original installation location.
Information
- The flexible rotating head of the assembly cartridge must be positioned almost on the assembly cartridge.
- If this is not the case, the valve key mounting will not be positioned over the valve stem and the valve keys will not be moved to the correct position.

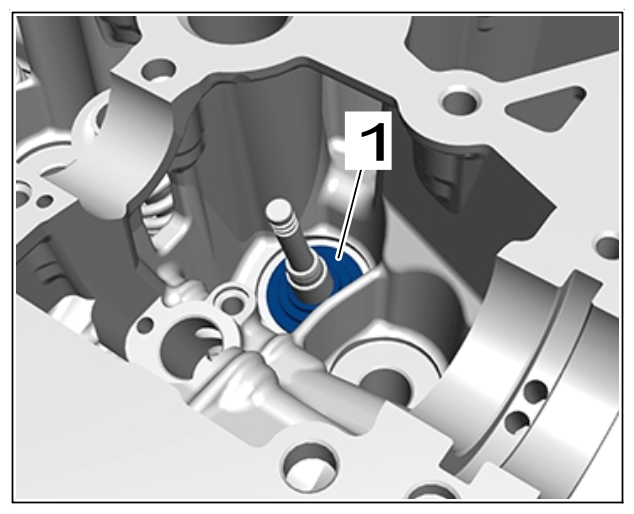

- Install bottom valve-spring plate -1-
.
Bottom valve-spring plate
- Install new valve-stem seal -1-
.

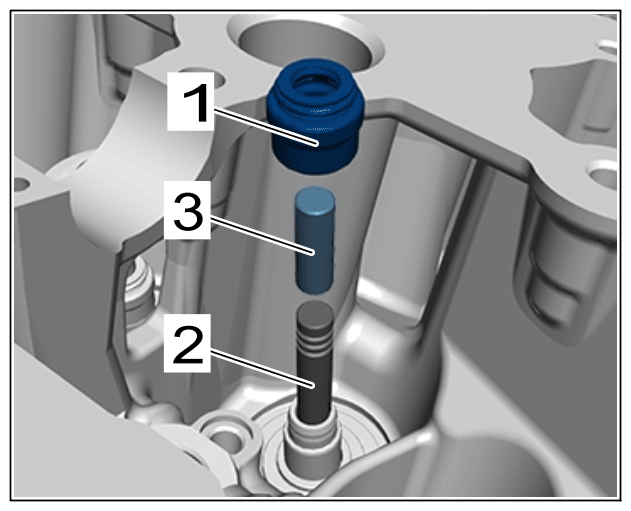

- 2.1 Oil the valve stem -2- lightly and fit assembly sleeve (shim set for valve-stem seals) -3- .
- 2.2 Slide valve-stem seal over the assembly sleeve -3- by hand.
Valve-stem seal

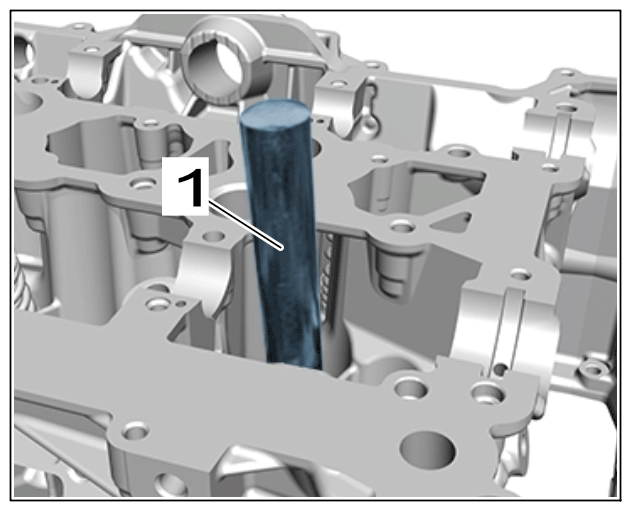

- Press valve-stem seal with the > 9606/1 - assembly driver-1-
as far as it will go onto the valve stem.
Assembly driver
- Remove > 9606/1 - assembly driver and assembly sleeve.
- Pick up valve keys using assembly cartridge VAS 5161/8A.
- 5.1

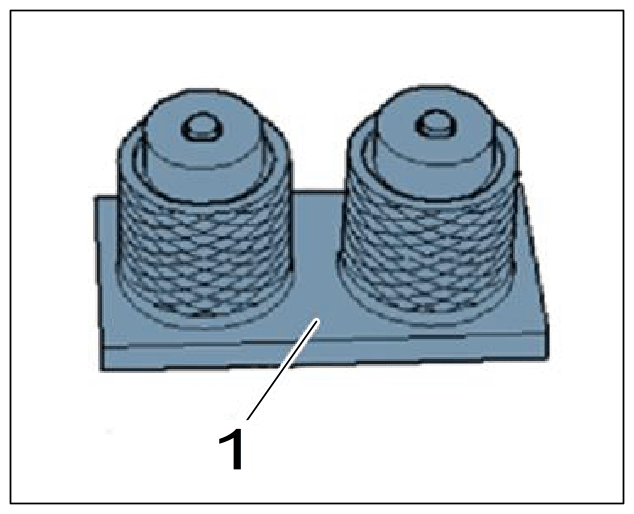

Insert valve keys into the insertion device VAS 5161/18 -1-
.
- 5.1.1 Press spring washer of the insertion device VAS 5161/18 -1- downwards and insert the valve keys with the narrow end pointing downwards.
- 5.2 Press assembly cartridge VAS 5161/8A -1- onto the valve keys from above and pick up the valve keys.
Insertion device
- 5.1
Insert valve keys into the insertion device VAS 5161/18 -1-
.
- Install valve springs and valve-spring plates.
- 6.1 Assign and install valve springs and valve-spring plates according to the markings made during removal.
- Fit valve keys using assembly cartridge VAS 5161/8A -2-
.
- 7.1 Position assembly cartridge VAS 5161/8A -2- on the valve stem.

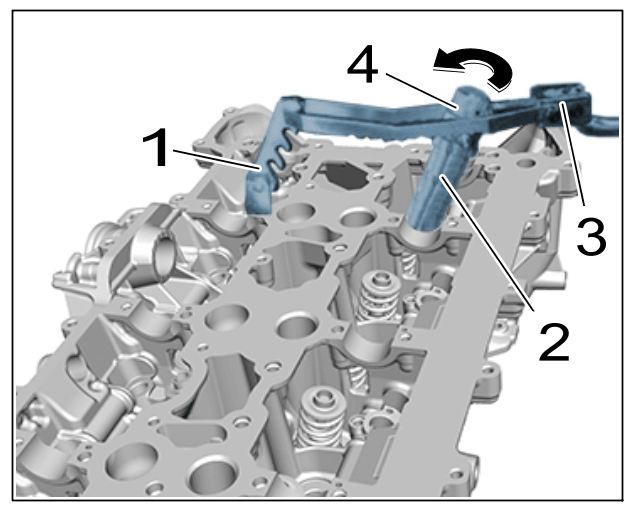

- 7.2 Engage pressure fork VAS 5161/2 -3- on the retainer VAS 5161/6 -1- .
- 7.3 Press assembly cartridge VAS 5161/8A -2- down using pressure fork VAS 5161/2 and pull knurled screw -4- on the assembly cartridge VAS 5161/8A -2- upwards by turning it clockwise and anti-clockwise in order to insert the valve keys.
- 7.4 Relieve pressure on the pressure fork VAS 5161/2 whilst pulling on the knurled screw -4- .
- 7.5 Check that all valve keys are fitted correctly.
Assembly overview - valve keys
- Disconnect compressed air from > VAS 6419 - cylinder head tensioning device .
- Repeat the procedure on all cylinders.
- > VAS 5161A - Removal and installation device for valve cotters must now be removed from the cylinder head.
- Remove cylinder head from > VAS 6419 - cylinder head tensioning device
.
- 11.1 Disconnect compressed air from > VAS 6419 - cylinder head tensioning device .
- 11.2 Disconnect supports from > VAS 6419 - cylinder head tensioning device .
- > VAS 6419 - Cylinder head tensioning device must be removed from > VAS 6095A - engine and gearbox bracket .
