Removing Cylinder Head - Cylinder Bank 2

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

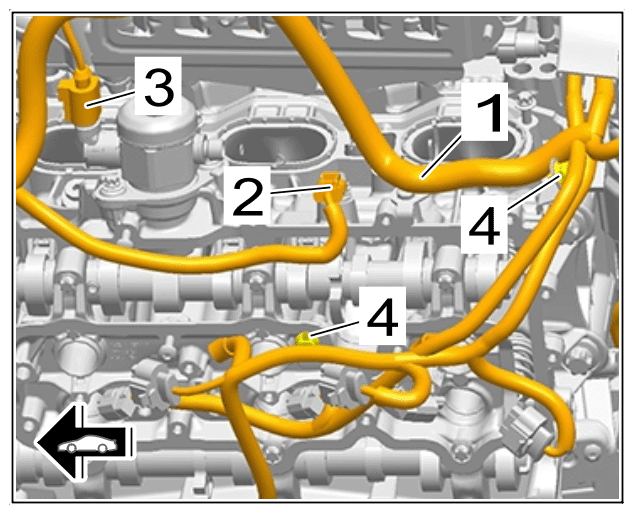

Electric wire harness

1. 1.1  Release and disconnect electric plug connection for hall sender -2-  .
2. 1.2  Release and disconnect electric plug connection for high-pressure pump -3-  .
3. 1.3  Unclip clips -4-  .
4. 1.4  Set electric wire harness -1-  aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

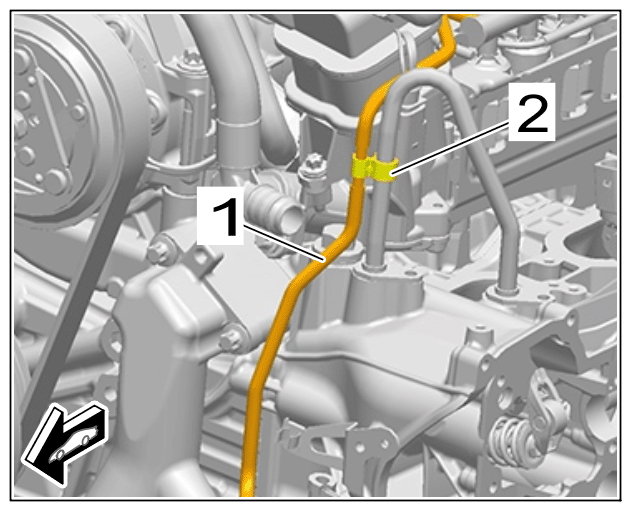

Vacuum line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

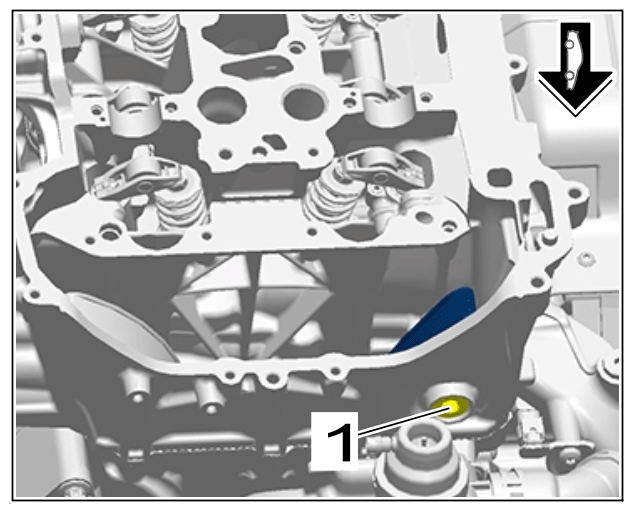

Bearing pins for guide rail

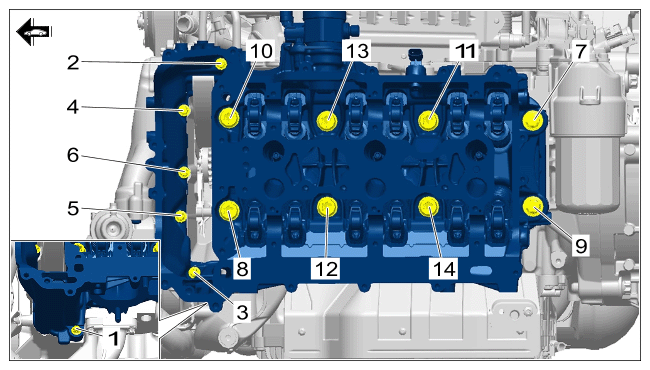

Fig 1: Cylinder Head Screws Loosening Sequence (Cylinder Bank 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cylinder head on cylinder bank 2

1. 4.1  Unscrew screws in the sequence -1 to 14-  .
2. 4.2  Remove cylinder head and old cylinder head gasket.
