Removing Cylinder Head - Cylinder Bank 1

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

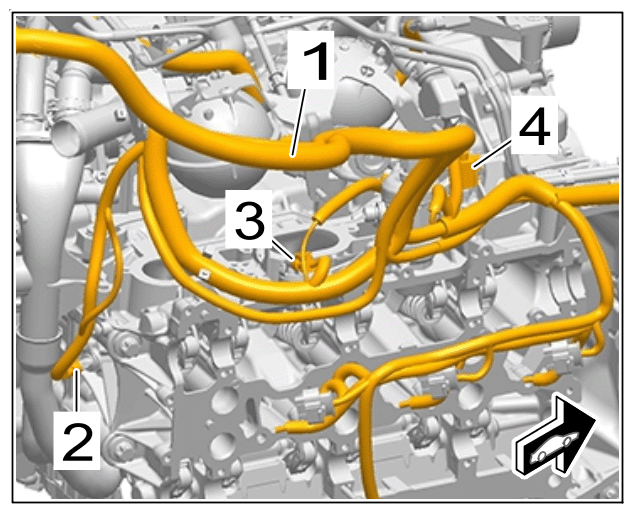

Electric wire harness

1. 1.1  Release and disconnect electric plug connection for temperature sensor -2-  .
2. 1.2  Release and disconnect electric plug connection for hall sender -3-  .
3. 1.3  Release and disconnect electric plug connection for high-pressure pump -4-  .
4. 1.4  Set electric wire harness -1-  aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

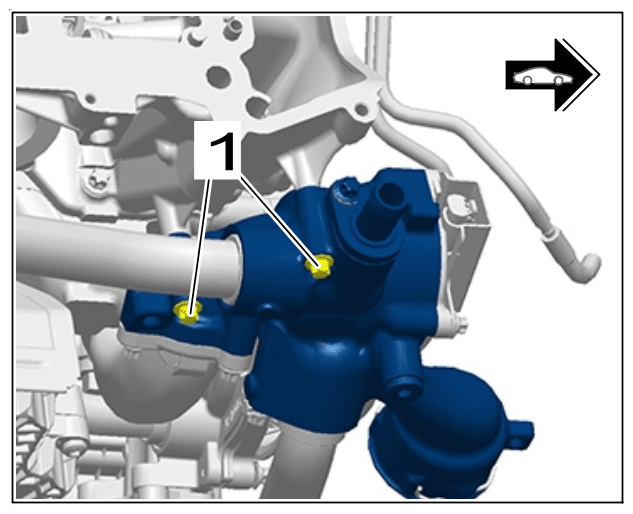

Screws on coolant regulator housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

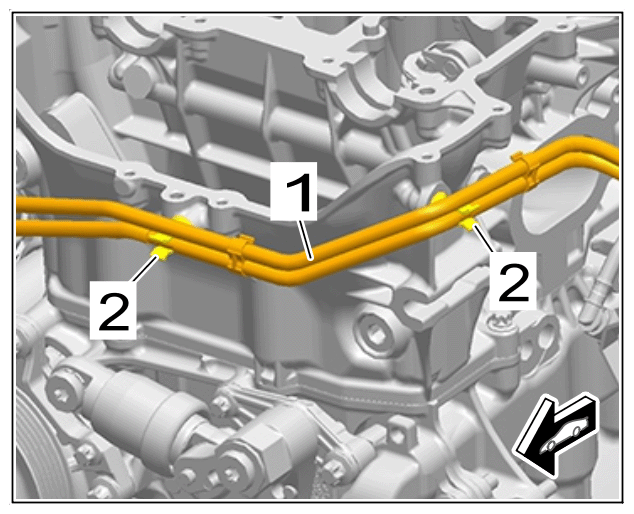

Vacuum lines on cylinder bank 1

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

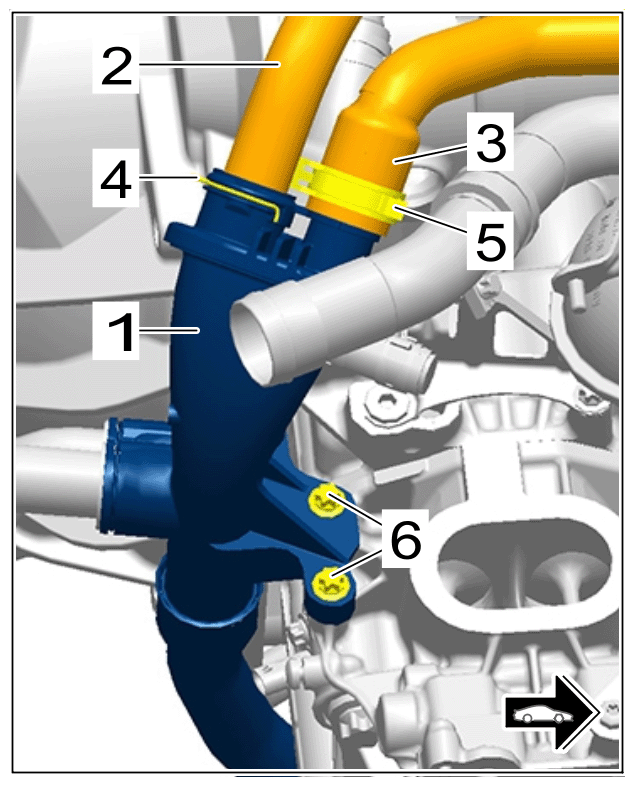

Coolant distributor

1. 4.1  Loosen coolant hoses -2 and 3-  .
   1. 4.1.1  Release spring clamp -4-  and disconnect coolant hose -2-  .
   2. 4.1.2  Loosen spring band clamp -5-  using > VAS 6890 - spring band clamp pliers  and pull off coolant hose -3-  .
   3. 4.1.3  Catch escaping coolant and close off line connections using suitable stoppers.
2. 4.2  Unscrew and remove screws -6-  .
3. 4.3  Disconnect coolant distributor -1-  from coolant pipes and set it aside.
4. 4.4  Catch escaping coolant and close off line connections using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

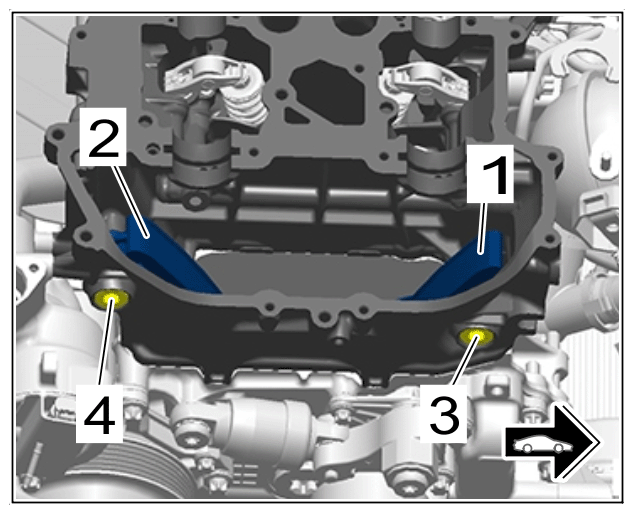

Guide and tensioning rails - cylinder bank 1

1. 5.1  Unscrew bearing pin -3-  .
2. 5.2  Unscrew guide pin -4-  and remove tensioning rail -2-  .

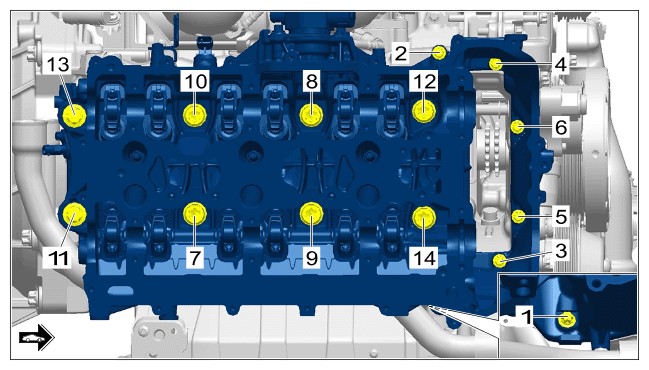

Fig 1: Cylinder Head Screws Loosening Sequence (Cylinder Bank 1)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cylinder head on cylinder bank 1

1. 6.1  Unscrew screws in the sequence -1 to 14-  .
2. 6.2  Remove cylinder head and old cylinder head gasket.
