Removing Actuator For Camshaft Control

1. Only for left cylinder bank:

   Loosen holder -1-  .

   1. 1.1  Unscrew screw -2-  and loosen line bracket -3-  from holder -1-  .
   2. 1.2  Unscrew screws on holder -4-  and move holder -1-  aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Holder for left cylinder bank

2. Remove actuator for camshaft control -1-  .
   1. 2.1  Unscrew and remove screws -2-  .
   2. 2.2  Remove actuator for camshaft control -1-  from the cylinder head.
   3. 2.3  Release and disconnect cable plug -3-  and remove actuator for camshaft control -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

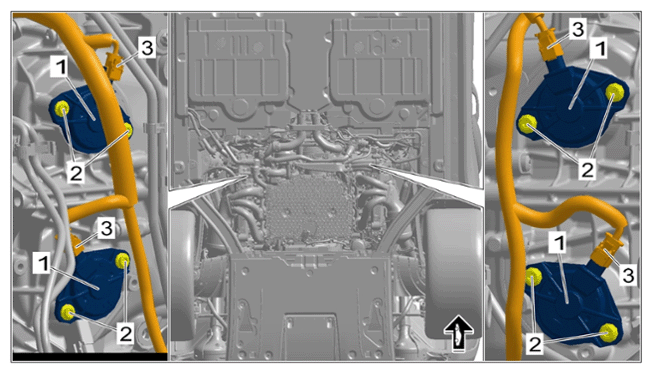

Actuator for camshaft control
