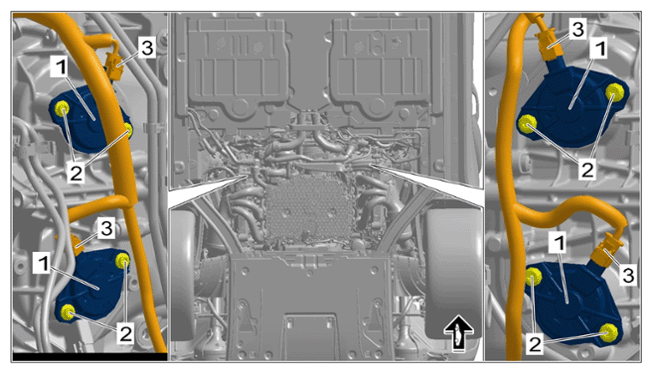

Installing Actuator For Camshaft Control

1. 1.1  Connect and lock cable plug -3-  .
2. 1.2  Insert actuator for camshaft control -1-  into the cylinder head.
3. 1.3  Fit and tighten screws -2-  .

   > Initial tightening 4 N.m (3 ft lb.)

   > Final tightening torque angle + 60°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Actuator for camshaft control

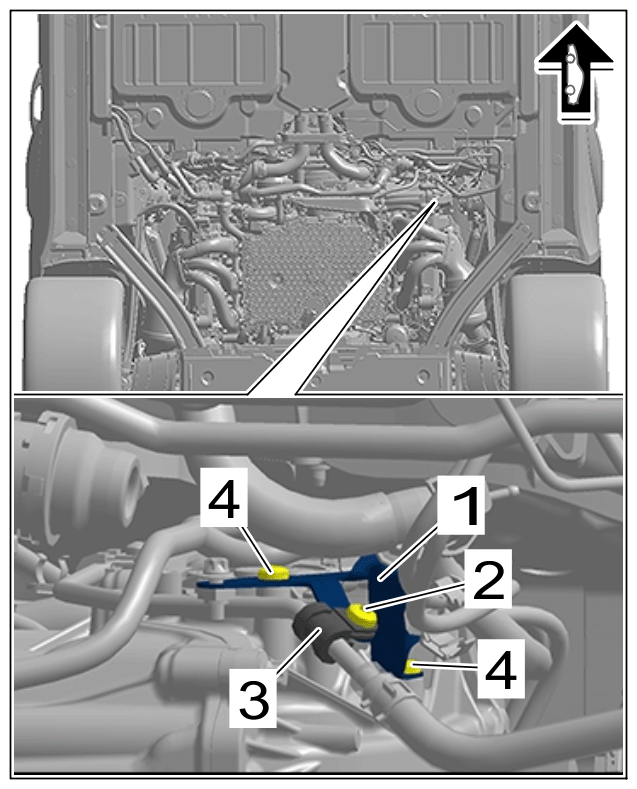

Secure holder -1-  .

1. 2.1  Position line bracket -3-  on holder -1-  .
2. 2.2  Fit and tighten screw on line bracket -2-  .

   > Tightening torque 10 N.m (7.5 ft lb.)

3. 2.3  Position holder -1-  .
4. 2.4  Fit and tighten screws on holder -4-  .

   > Tightening torque 10 N.m (7.5 ft lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Holder for left cylinder bank
