Technical Values

TIGHTENING TORQUE SPECIFICATION

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Chain tensioner   Tightening torque 80 N.m (59 ft lb.)

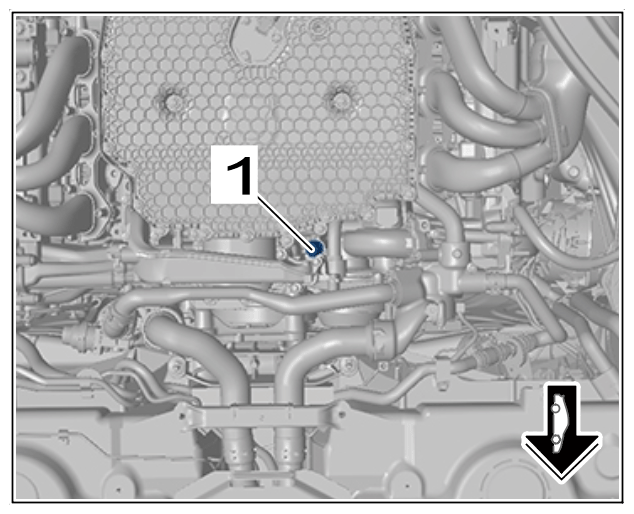

G16219435Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain tensioner on cylinder bank 1
