Removing Chain Tensioner - Cylinder Bank 1

  1. Remove chain tensioner -1-  .

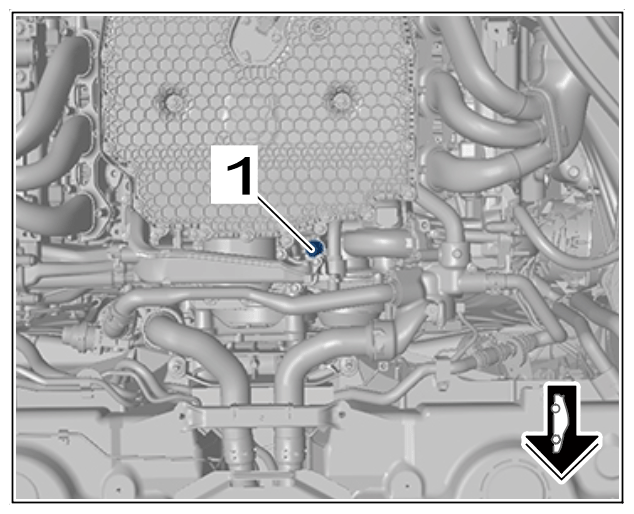

    G16219437Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Chain tensioner on cylinder bank 1

    1. 1.1  Unscrew chain tensioner -1-  .
    2. 1.2  Close off bore using a suitable stopper.
