Installing Chain Tensioner - Cylinder Bank 2

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

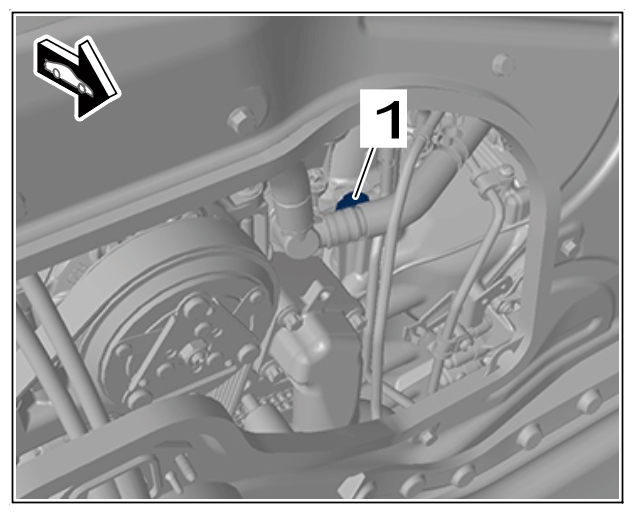

Chain tensioner on cylinder bank 2

1. 1.1  Screw in chain tensioner -1-  as far as it will go by hand.
2. 1.2  Tighten chain tensioner -1-  .

   > Tightening torque 80 N.m (59 ft lb.)
