Removing Camshafts
Information
- The camshafts can only be removed in the overlapping position at the top dead center of pistons 1 or 4.
- Only at this position can you be sure that the valves are not touching against the pistons and cannot be damaged when the engine turns.
- Turn the crankshaft at the vibration damper -1-
to TDC marking OT1
using > 9773 - turning device to turn it clockwise.
- 1.1 Fix the vibration damper -1- in place above the staking bore using > 9595/1 - locating pin .

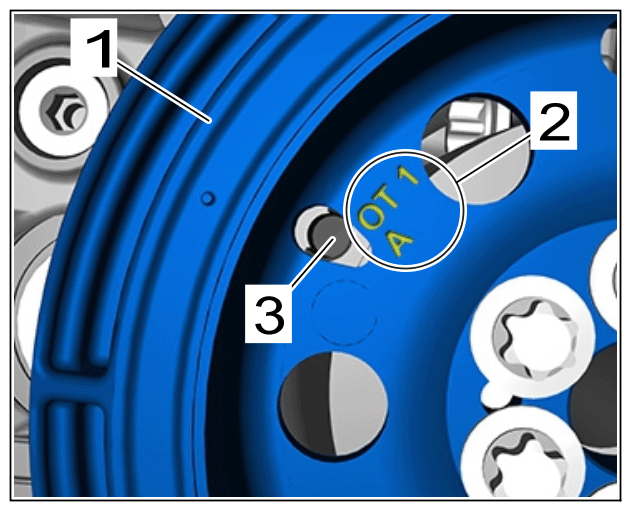

TDC marking on cylinder 1/4 at vibration damper
- Check TDC position of cylinder 1.
The cams -1- of the intake camshaft -2- and outlet camshaft -3- must be facing downwards at an angle to the outer cylinder head wall at cylinder 1.
The data matrix code -4- on the camshafts is facing upwards.

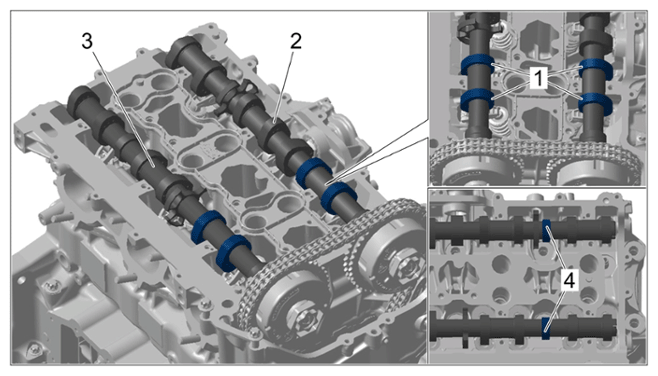

Cam position at TDC position of cylinder 1
- Check TDC position of cylinder 4 by checking the cam position on cylinder 4.
The cams -1- of the intake camshaft -2- and outlet camshaft -3- must be facing downwards at an angle to the spark-plug recess.
The data matrix code -4- on the camshafts is facing upwards.

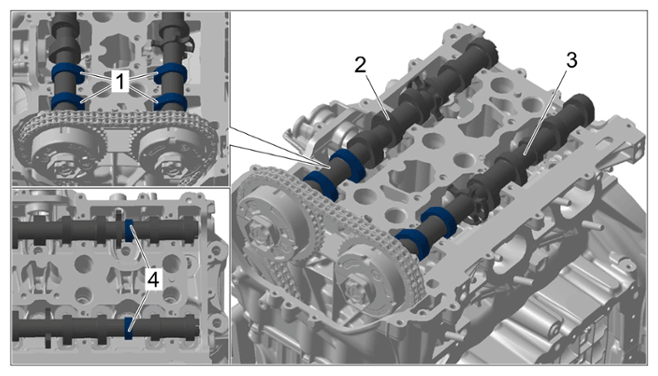

Cam position at TDC position of cylinder 4
- Turn the engine on the assembly support so that cylinder bank 1 is at the top.
- Remove fuel line holder -1-
.
- 5.1 Unscrew screw -2- .
- 5.2 Unclip fuel line holder -1- from rubber sleeve -3- .

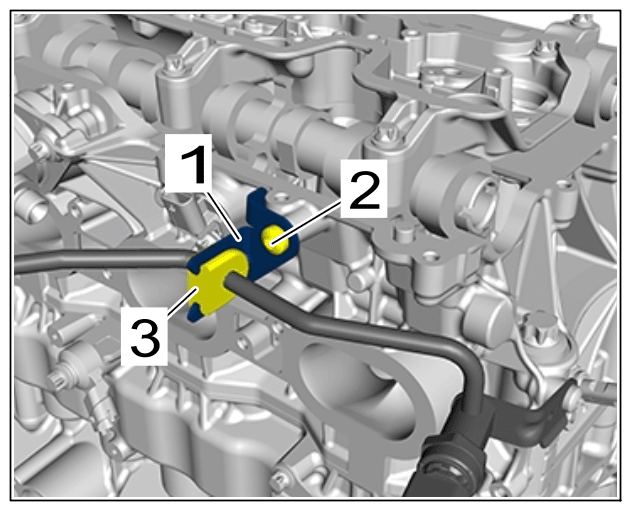

Fuel line holder
- Secure the camshafts using > 9879/2 - locking tool-3-
.
- 6.1 Make sure that the adjusting screw -5- on the > 9879/2 - locking tool-3- is unscrewed.
- 6.2
Fit the relevant 9879-2 adapters
to the > 9879/2 - locking tool-3-
with the marking facing outwards.
- 6.2.1
Observe marking on 9879-2 adapters -1 and 2-
:
A1 and B1 for cylinder bank 1
A2 and B2 for cylinder bank 2
- 6.2.1
Observe marking on 9879-2 adapters -1 and 2-
:
- 6.3
Position > 9879/2 - locking tool-3-
on the dihedron of the camshaft.
Check the position of the intake and outlet side.
- 6.3.1 Position 9879-2 adapter A1 or 9879-2 adapter A2 -1- at the intake side.
- 6.3.2 Position 9879-2 adapter B1 or 9879-2 adapter B2 -2- at the outlet side.
- 6.3.3
Fit and tighten screws -4-
.
> Tightening torque 5 N.m (3.5 ft lb.)
- 6.4
Screw in and tighten adjusting screw -5-
on the > 9879/2 - locking tool-3-
.
> Tightening torque 8 N.m (6 ft lb.)

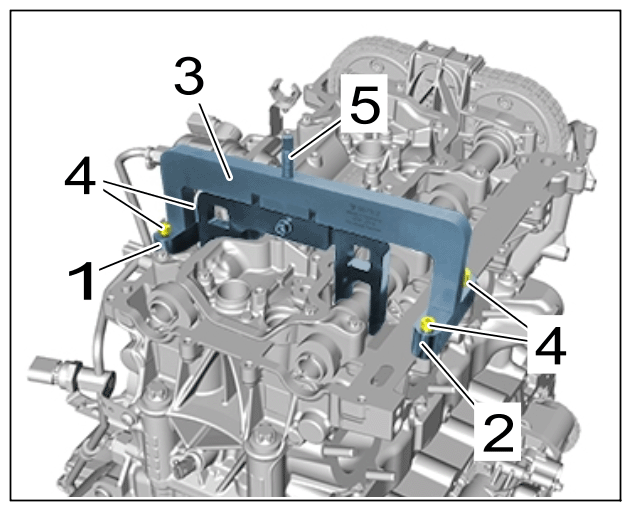

Locking tool
Information
The hexagon sleeves will be deformed during the loosening process and must be replaced!
- Loosen central valves -1-
using > 9863 - socket wrench for camshaft
. Use > 9863/1 - ring insert wrench
to counter at the hexagon sleeves -2-
at the same time.

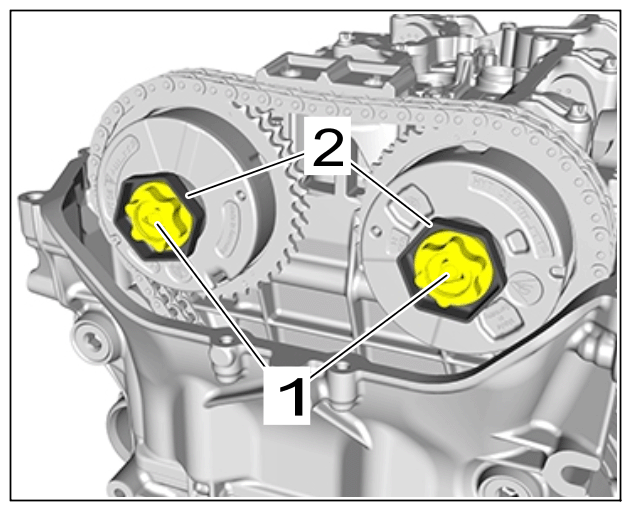

Central valves
- Remove chain tensioner.

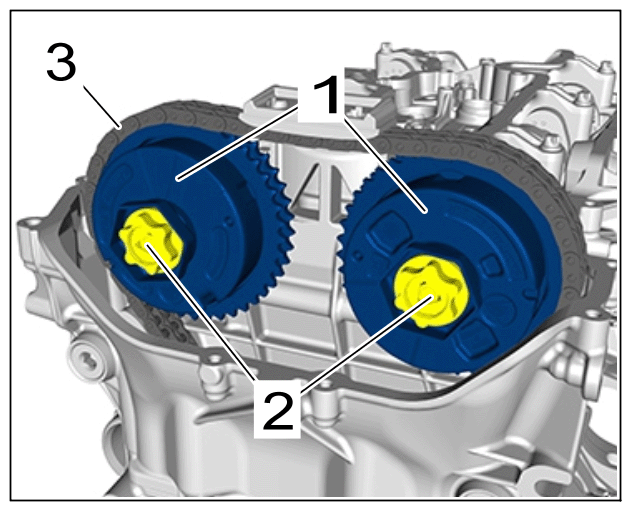

- Remove camshaft actuator -1- .
- Remove camshaft guide frame -18-
and bearing saddle -19-
.
- 10.1 Only for guide frame of cylinder bank 1:
Unscrew screw -17- .
- 10.2 Unscrew screws in the opposite sequence -1 to 16- .

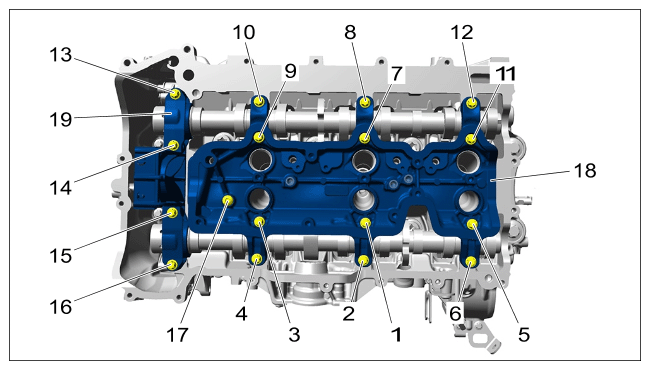

- 10.3 Remove camshaft guide frame -18- and bearing saddle -19- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide frame and bearing saddle
- 10.1 Only for guide frame of cylinder bank 1:
- Remove intake camshaft -1-
and outlet camshaft -2-
.
Camshafts
- Turn the engine on the assembly support so that the cylinder bank 2 is at the top.
- Turn the crankshaft another 360° at the vibration damper -1-
to TDC marking OT1
using > 9773 - turning device to turn it clockwise.
- 13.1 Fix the vibration damper -1- in place above the staking bore using > 9595/1 - locating pin .
TDC marking on cylinder 1/4 at vibration damper
- Repeat steps 6 to 11 for cylinder bank 2.

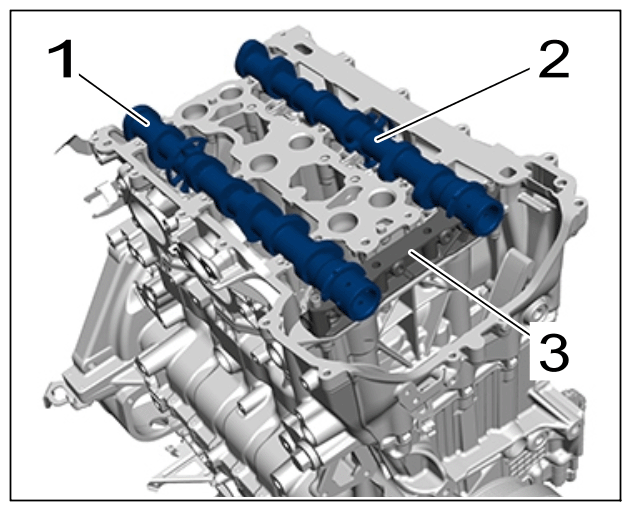

- Remove intake camshaft -1- , outlet camshaft -2- and lower part of bearing saddle -3- .

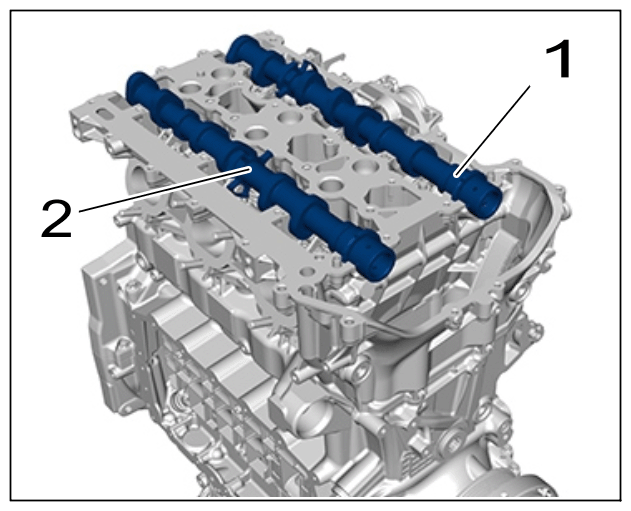

Camshafts on cylinder bank 2
