Removing TENSIONING Roller

1. Unclip the protection cap on the tensioning roller -1-  using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

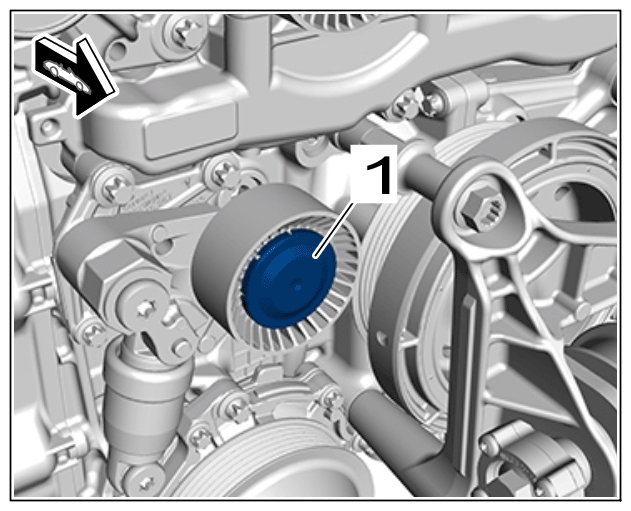

   Protection cap on tensioning roller

2. Remove tensioning roller -1-  .
   1. 2.1  Unscrew screw -2-  and guide it out with tensioning roller -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

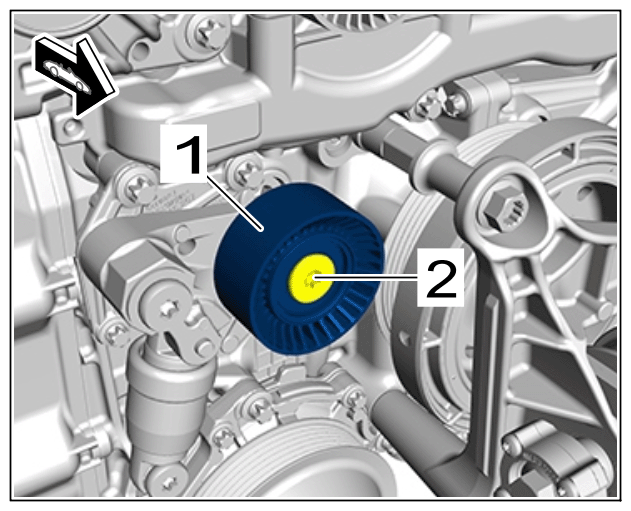

Tensioning roller
